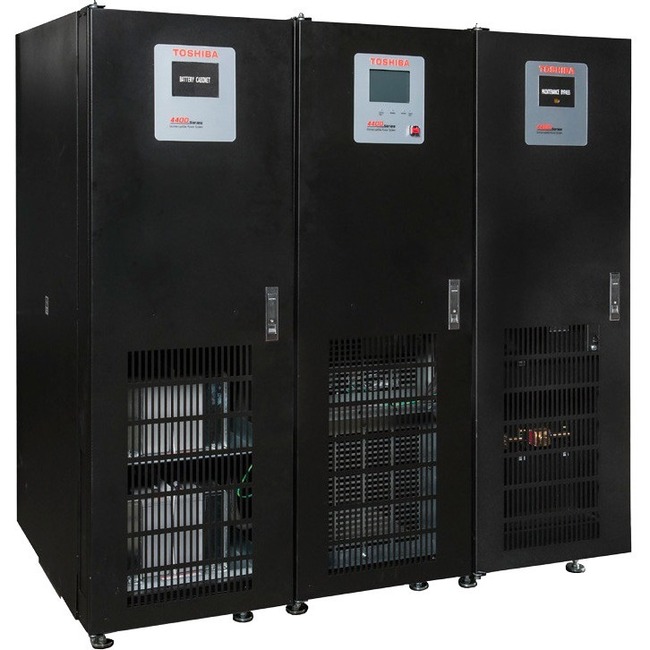

Toshiba 4400 50kVA Tower UPS

Part No. 4400F3F500XAB

by Toshiba

This Product is currently not in offering

Toshiba 4400 50kVA Tower UPS

Part No. 4400F3F500XAB

by Toshiba

This Product is currently not in offering

General Information
ManufacturerToshiba
Manufacturer Part Number4400F3F500XAB
Brand NameToshiba
Product Series4400
Product Name4400 50kVA Tower UPS
Marketing Information

The Toshiba 4400 Series uninterruptible power system (UPS) is the next-generation three-phase UPS. The double-conversion, all insulated-gate bipolar transistor (IGBT) 4400 Series UPS features a digitally controlled IGBT input rectifier, an intelligent low harmonic pulse-width modulation (PWM) output, state-of-the-art electronic battery isolation circuitry, and an easy to navigate local touchscreen interface.

The small footprint and total front access mechanical design requires zero rear clearance and includes features such as top, bottom, and/or side cable entry, standard sized air filter provisions, and lockable keyed doors. Customization is available through a number of options, such as internal battery backup, internal transformers for specific voltage applications, and remote monitoring with the Toshiba RemotEye® 4 multi-protocol UPS monitoring solution.

Product TypeDouble Conversion Online UPS
Technical Information
Receptacle TypeHardwired
Power Description
Load Capacity (VA)50 kVA
Input Voltage
  • 208 V AC
  • 120 V AC
Output Voltage
  • 208 V AC
  • 120 V AC
Management
Network ManagementSNMP/HTTP Remote Monitoring
Physical Characteristics
Form FactorTower
Height73.62" (1870 mm)
Width32.13" (816 mm)
Depth31.77" (807 mm)
Weight (Approximate)722 kg
Miscellaneous
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty3 Year
