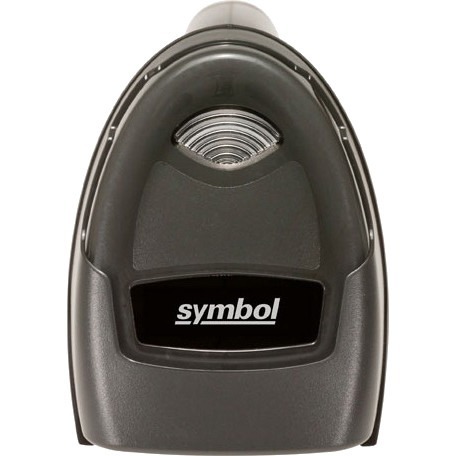

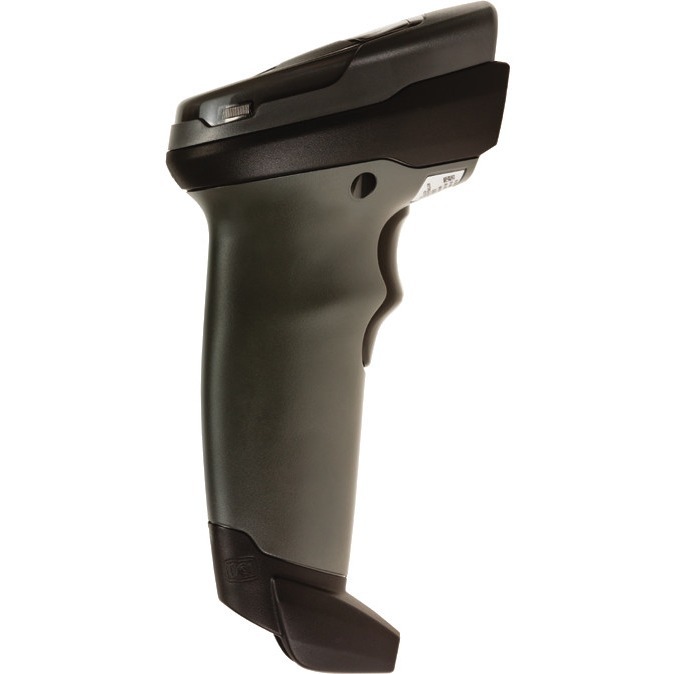

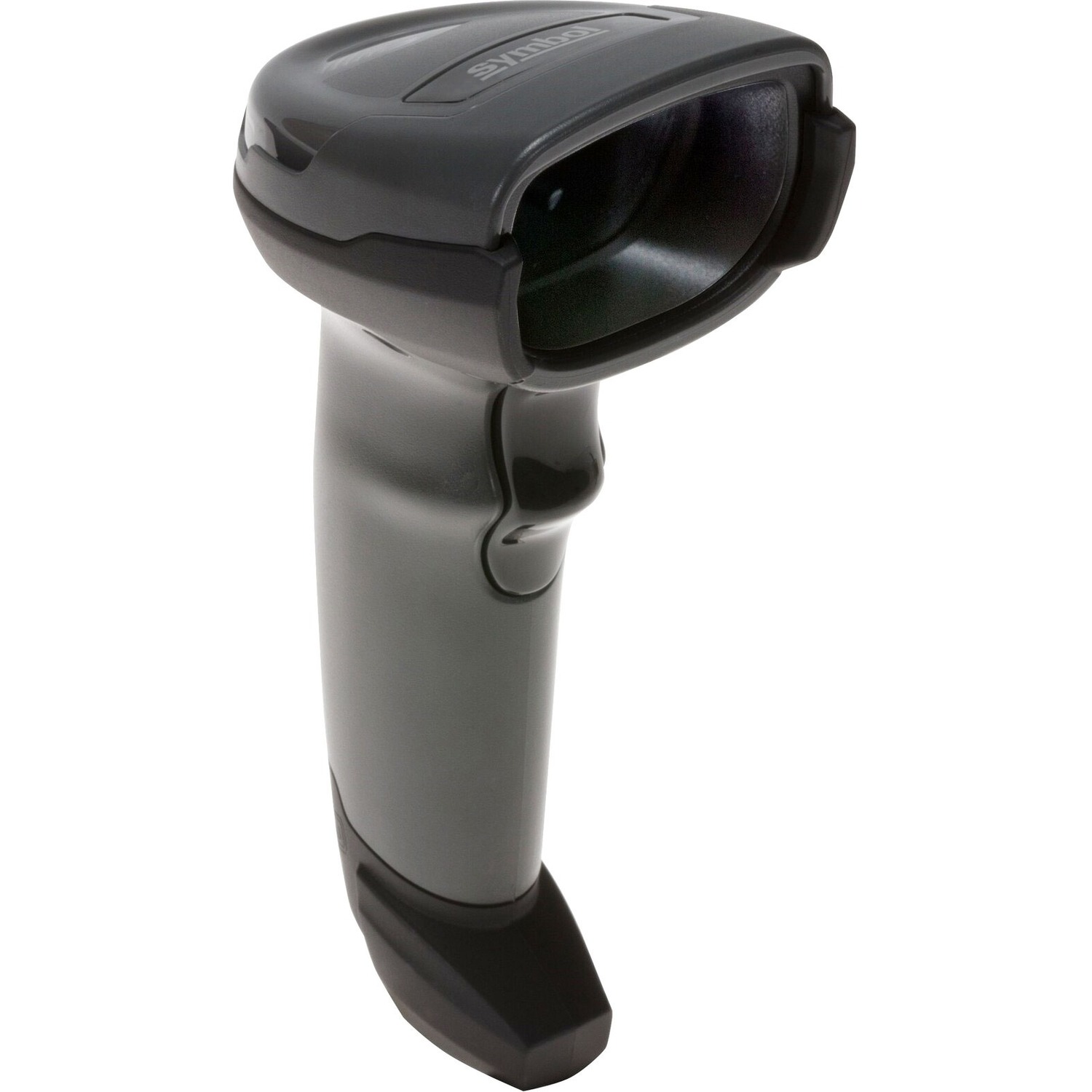

Zebra DS4308 Handheld Barcode Scanner

Part No. DS4308-SR7U2100AZW

by Zebra Technologies Corporation

Zebra DS4308 Handheld Barcode Scanner

Cable Connectivity - 1D, 2D - Imager - Omni-directional - Black - Retail, Hospitality, Manufacturing, Industrial, Logistics

Part No. DS4308-SR7U2100AZW

by Zebra Technologies Corporation

$373.99
General Information
ManufacturerZebra Technologies Corporation
Manufacturer Part NumberDS4308-SR7U2100AZW
Brand NameZebra
Product ModelDS4308
Product NameDS4308 Handheld Barcode Scanner
Marketing Information

SCAN ANY 1D OR 2D BARCODE FARTHER AND FASTER WITH NEXT GENERATION SCANNING TECHNOLOGY.

The DS4308 is a feature-rich next generation 2D imager that resets the bar for scanning performance, scanning range, versatility and easeof- use. Workers can capture virtually any bar code faster than ever, whether it is displayed on a smartphone, tablet or computer or printed on a label - even if it is scratched, damaged or dirty. Its small and lightweight design offers the ergonomics your workers need for all day comfort in the most scan intensive jobs. A variety of models meet a wide range of business needs - from the Point-of-Sale in a retail store to the light industrial manufacturing production line. Regardless of which model you choose, you get one powerful scanner that does the job of two. The Standard Range (SR) model offers an extraordinary range, eliminating the need to purchase separate standard and extended range scanners. The High Density (HD) model scans standard bar codes as well as the tiny, dense barcodes commonly found on jewelry tags, consumer electronics and electronic components - eliminating the need to purchase separate standard and high density specialty scanners. And driver's license parsing can be added to either model. The result? An extraordinary feature set and an extraordinary value.

Product TypeBarcode Scanner
Technical Information
Connectivity TechnologyCable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported1D:
  • UPC/EAN
  • UPC/EAN with supplementals
  • Bookland EAN
  • ISSN
  • UCC Coupon Extended Code
  • Code 128
  • GS1-128
  • ISBT 128
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • Code 32
  • Code 93
  • Code 11
  • Matrix 2 of 5
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Codabar
  • MSI
  • Chinese 2 of 5
  • GS1 DataBar variants
  • Korean 3 of 5
  • ISBT Concat
2D:
  • PDF417
  • MicroPDF417
  • Composite Codes
  • TLC-39
  • Data Matrix
  • Maxicode
  • QR Code
  • MicroQR
  • Aztec
  • Han Xin
Postal:
  • Australian Post
  • US PLANET
  • Royal Mail 4 State Customer
  • US POS TNET
  • KIX Code (Dutch)
  • UK Postal
  • Japan Post
  • UPU 4 State Postal FICS (Post US4)
  • USPS 4 State Postal (Post US3)
  • Canadian Post (Postbar)
Image Sensor TypeImager
Scan PatternOmni-directional
Scanner RangeStandard Range
Field of View (Horizontal)36°
Field of View (Vertical)23°
Reading Angle (Skew)60°
Reading Angle (Pitch)65°
Reading Angle (Roll)360°
Motion Tolerance30 in/s (762 mm/s)
Maximum Ambient Light86000 lux
Drop SpecificationBuilt to survive a 6 ft./1.83 m drop to concrete, the DS4308 delivers reliable operation, despite the inevitable everyday drops.
Minimum Print Contrast20%
Minimum Element Resolution (Code 39)3 mil (0.08 mm)
Maximum Element Resolution (Code 39)5 mil (0.13 mm)
Minimum Element Resolution (DataMatrix)10 mil (0.25 mm)
Minimum Element Resolution (PDF417)6.60 mil (0.17 mm)
Interfaces/Ports
Host InterfaceUSB
Physical Characteristics
Form FactorHandheld
Product ColorBlack
Height6.48" (164.59 mm)
Width2.64" (67.06 mm)
Length3.86" (98.04 mm)
Weight (Approximate)5.71 oz (161.875777 g)
Miscellaneous
Additional Information

USB Cable separate

Application/Usage
  • Retail
  • Hospitality
  • Manufacturing
  • Industrial
  • Logistics
COOCN
ConditionNo
