JBL Commercial CSA 1120Z Amplifier - 120 W RMS - 1 Channel

Part No. CSA1120Z

by Harman International Industries, Inc

JBL Commercial CSA 1120Z Amplifier - 120 W RMS - 1 Channel

0.5% THD - 1 kHz - 35 W - Ethernet

Part No. CSA1120Z

by Harman International Industries, Inc

$721.99
General Information
ManufacturerHarman International Industries, Inc
Manufacturer Part NumberCSA1120Z
Brand NameJBL Commercial
Product SeriesCS
Product ModelCSA 1120Z
Product NameCSA 1120Z Amplifier
Marketing Information

By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound.

From the switch-mode universal power supply to the efficient performance of Crown's DriveCore™ Technology, we continue to set new standards in commercial power amplifier technology.

Simple to configure, the CS amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance.

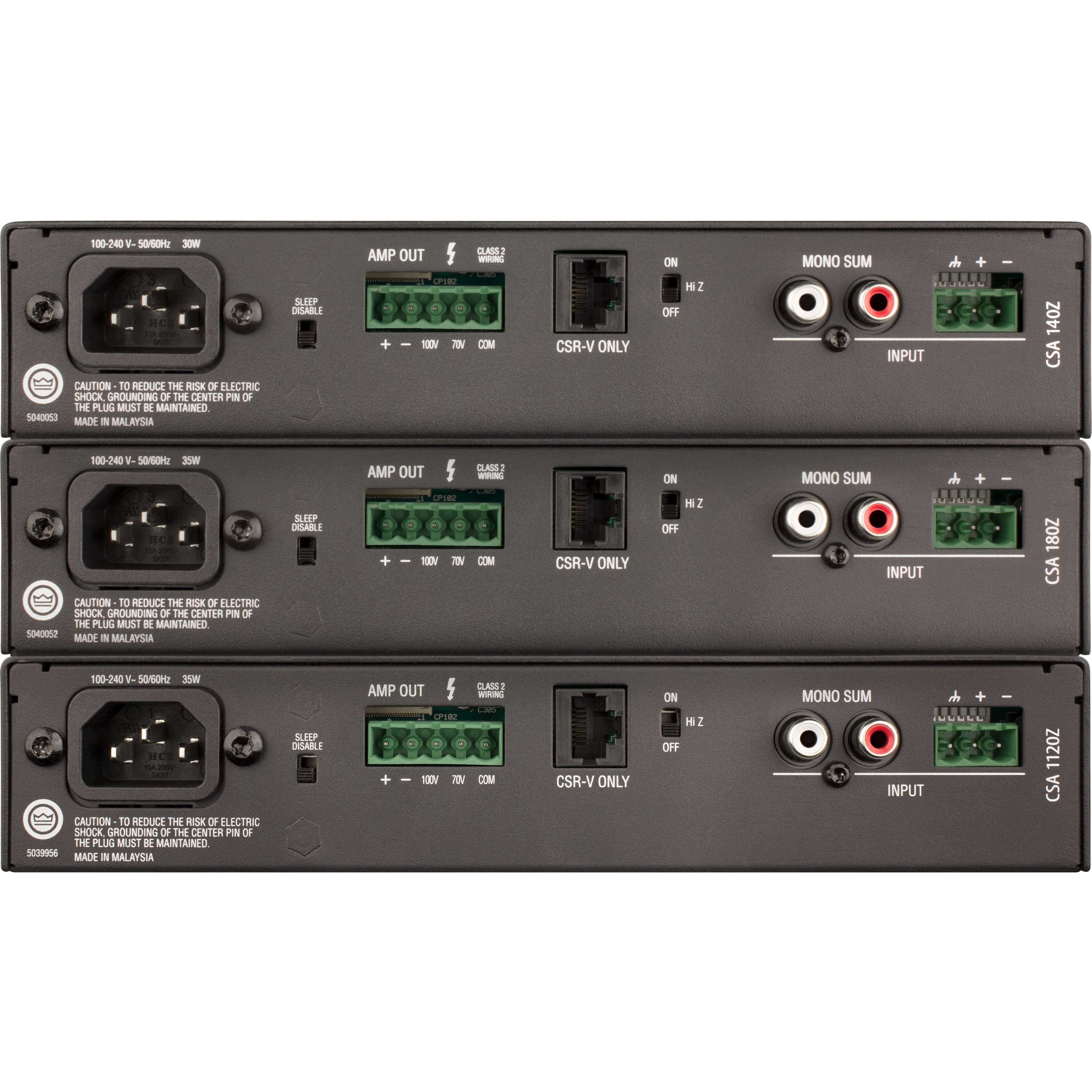

Supporting 70V and 100V installations out of the box, CS amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls. Its universal power supply allows every CS amp to accept AC voltages from 100 to 240 VAC, 50/60 Hz.

And with HARMAN's GreenEdge™ environmental initiative, CS amps quickly pay for themselves in energy savings.

Product TypeAmplifier
Technical Information
Maximum Frequency Response1 kHz
Total Harmonic Distortion (THD)0.5%
Audio
Audio Channels1
RMS Output Power120 W
Network & Communication
EthernetYes
Interfaces/Ports
Number of Analog Audio Inputs2
Power Description
Operating Power Consumption35 W
Physical Characteristics
Height1.70" (43.30 mm)
Width11.94" (303.40 mm)
Depth8.60" (218.50 mm)
Weight (Approximate)6.90 lb (3129.79 g)
Miscellaneous
Package Contents
  • CSA 1120Z Amplifier
  • Rack mounting kit
Energy StarYes
Country of OriginMalaysia
Environmentally FriendlyYes
ConditionNo
UPC871015008462
