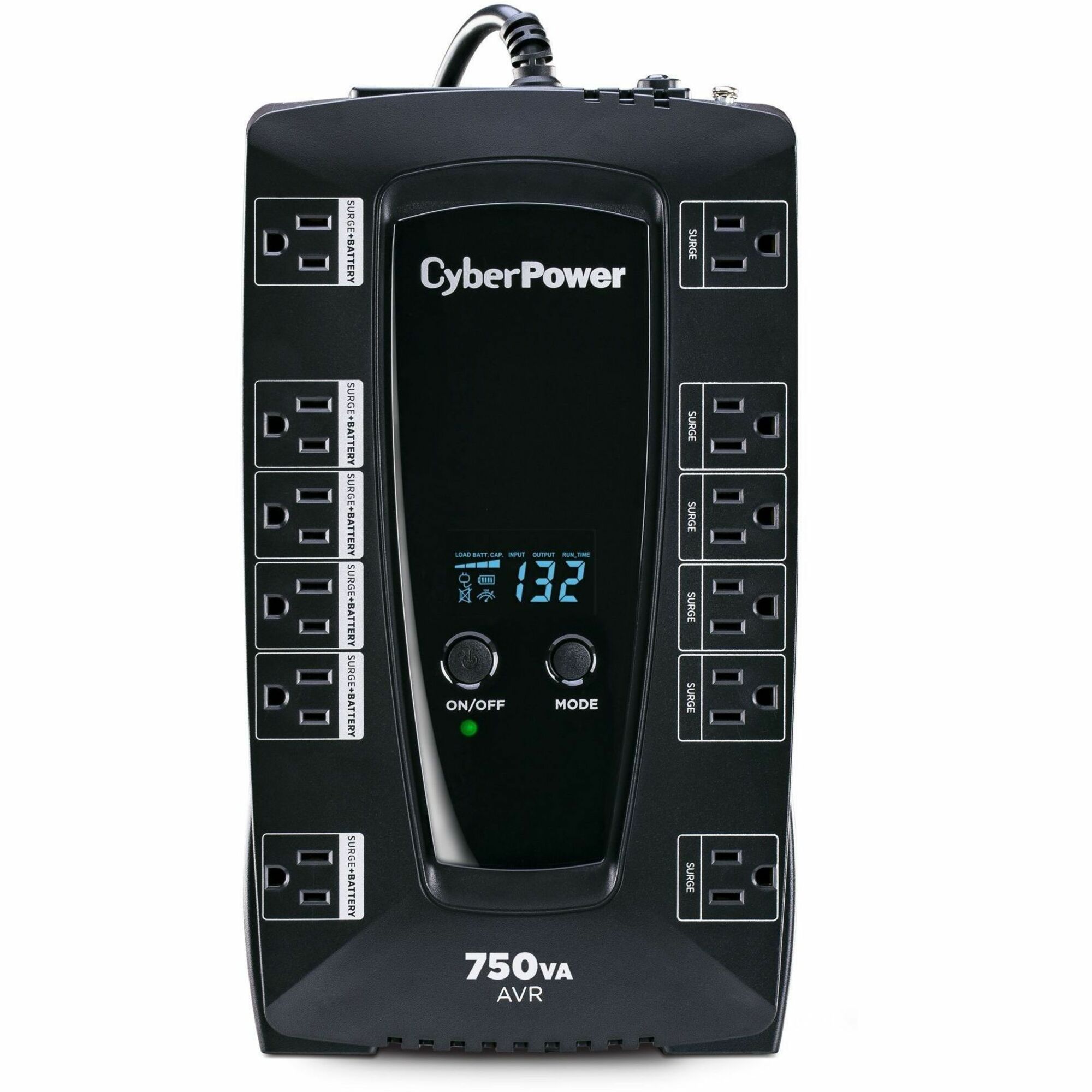

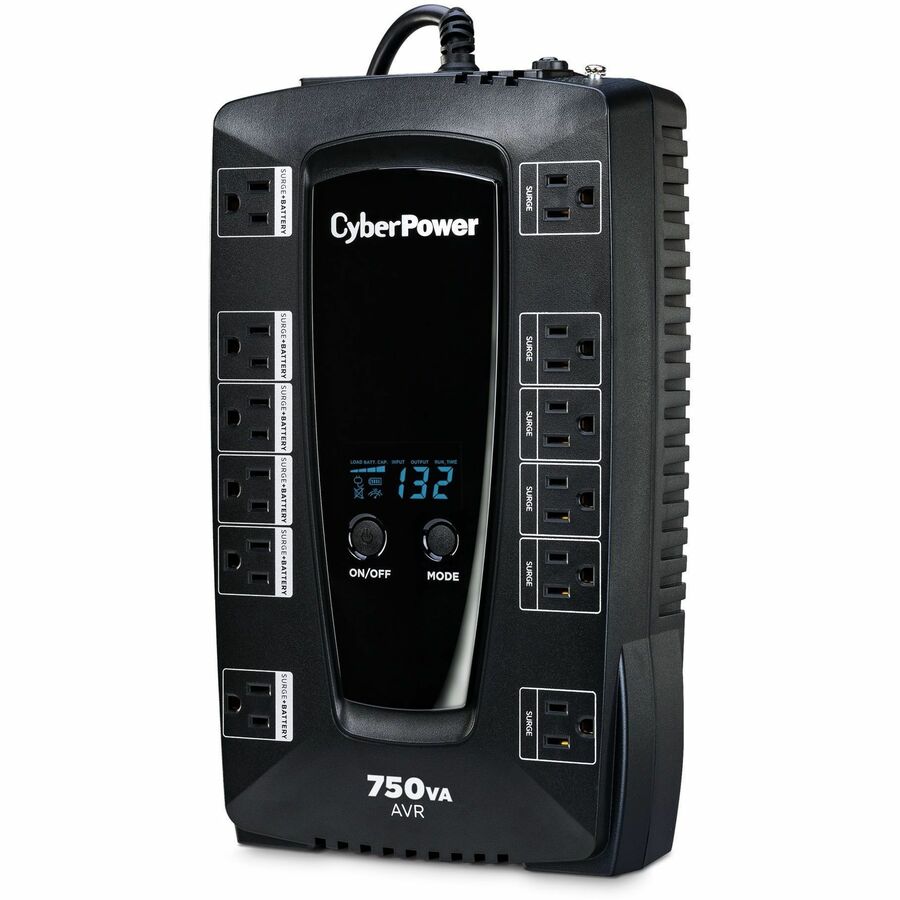

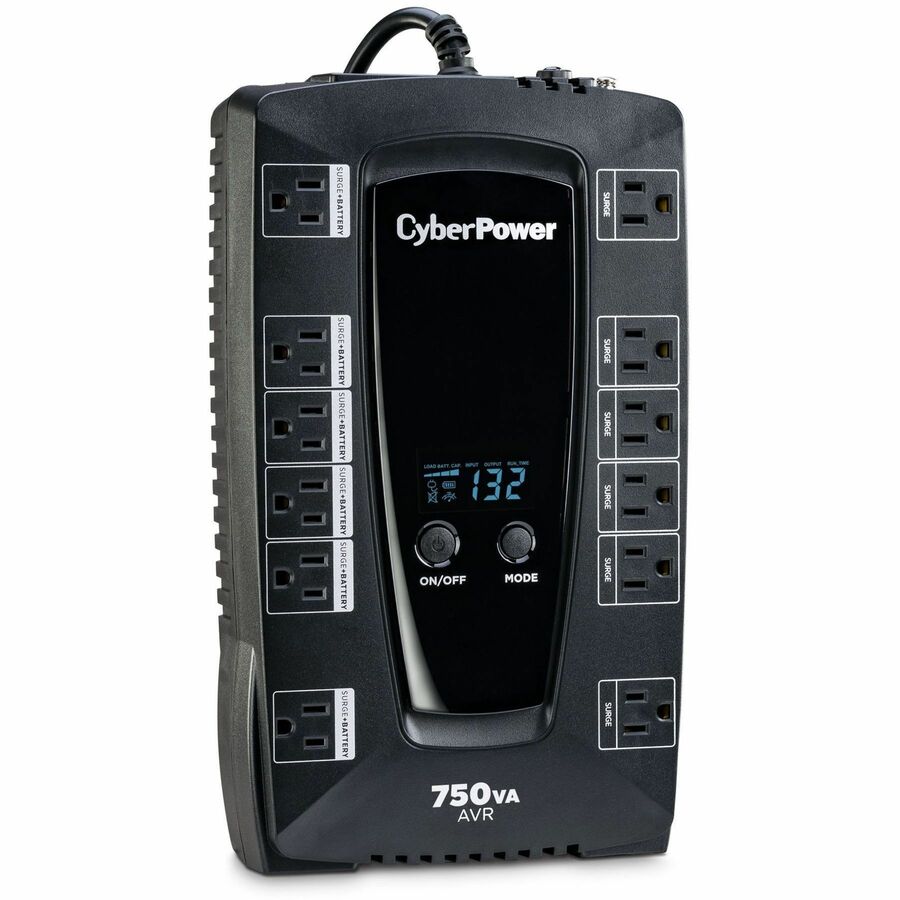

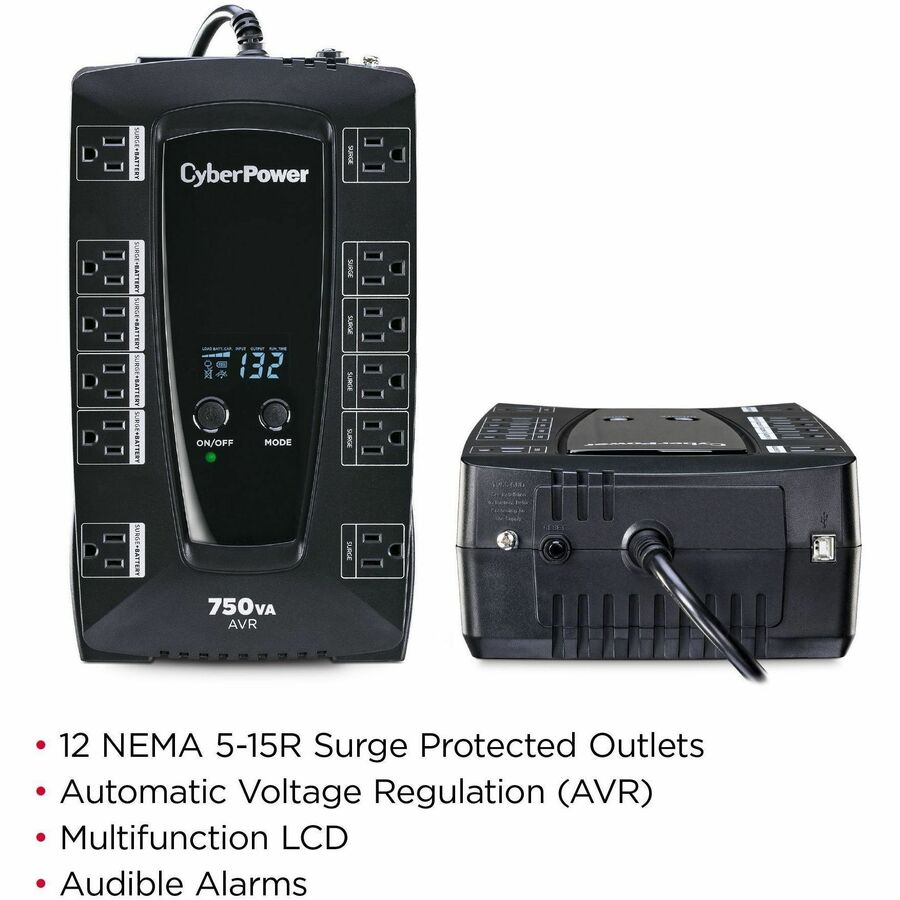

CyberPower AVRG750LCD Intelligent LCD UPS Systems

750VA/450W, 120 VAC, NEMA 5-15P, Compact, 12 Outlets, LCD, PowerPanel® Personal, $150000 CEG, 3YR Warranty

Part No. AVRG750LCD

by CyberPower Systems, Inc

$170.99

General Information

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	AVRG750LCD
Brand Name	CyberPower
Product Series	Intelligent LCD UPS
Product Model	AVRG750LCD
Product Name	AVRG750LCD Intelligent LCD UPS Systems
Marketing Information	A compact UPS with line interactive topology, the CyberPower AVRG750LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The AVRG750LCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The AVRG750LCD comes with a three-year warranty (including coverage of batteries) and a $150,000 Connected Equipment Guarantee.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
AVR Range	Boost +10% / Buck -10%
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	12 x NEMA 5-15R
Number of Battery & Surge Outlets	6
Number of Surge-only Outlets	6
Dataline Protection	RJ-11
EMI/RFI Noise Filter	Yes
Energy Saving	GreenPower UPS™ Bypass Design
Application/Usage	Desktop Computer Workstation Home Theater Personal Electronic Home Network Router Modem VoIP Phone System

Power Description

Load Capacity (VA)	750 VA
Load Capacity (Watt)	450 W
Input Voltage	120 V AC
Input Voltage Range	90 V AC - 148 V AC
Output Voltage	120 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Simulated Sine Wave
Surge Energy Rating	1030 J

Management

Alarm	On Battery Low Battery Overload Fault

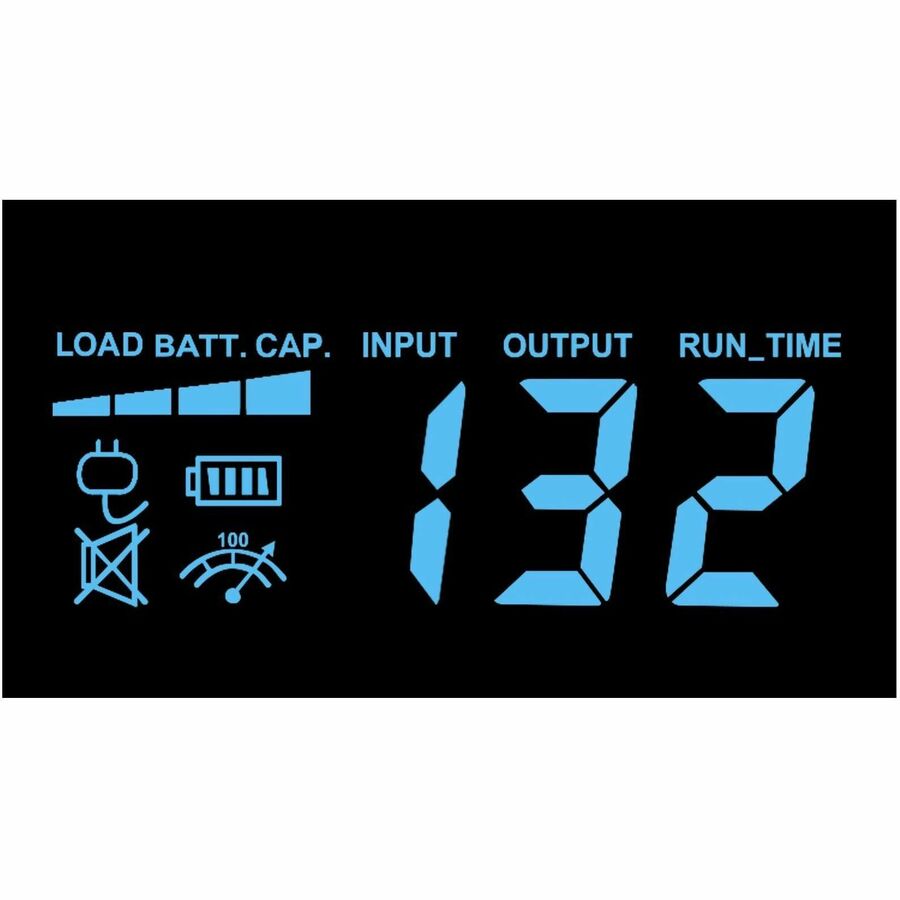

Controls/Indicators

Status Indicators	Power On Wiring Fault

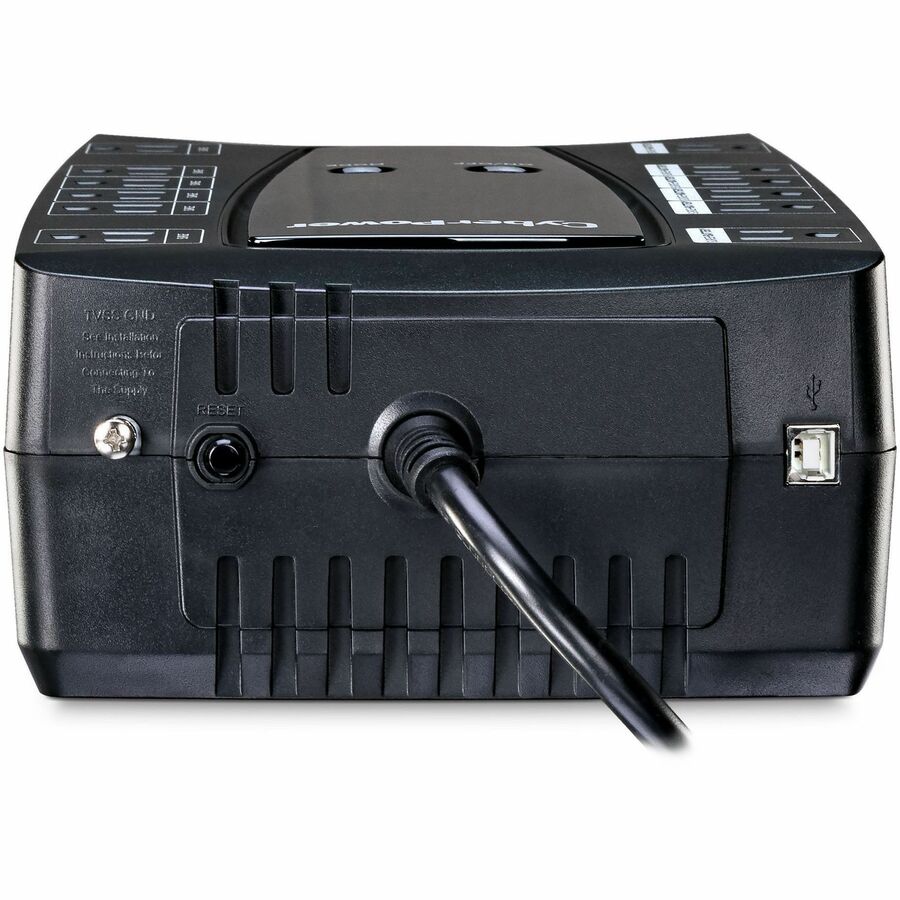

Interfaces/Ports

Modem (RJ-11)	Yes
USB	Yes
USB (HID Compliant) Port	Yes

Battery Information

Number of Batteries	1
Battery Characteristics	Maintenance-free
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	7000 mAh
Backup/Run Time (Full Load)	2.50 Minute
Backup/Run Time (Half Load)	7.60 Minute
Typical Battery Recharge Time	8 Hour
Hot Swappable	No
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	6562 ft (2000097.60 mm)
Maximum Storage Elevation	50000 ft (15240000 mm)
Operating Humidity	0% - 90%

Physical Characteristics

Height	7" (177.80 mm)
Width	12.20" (309.88 mm)
Depth	3.50" (88.90 mm)
Form Factor	Compact
Weight (Approximate)	12.40 lb (5624.55 g)

Miscellaneous

Package Contents	Intelligent LCD Series AVRG750LCD 750VA 450W UPS User Manual USB A+B Type Cable Warranty Registration Card
Additional Information	Energy Saving : GreenPower UPS™ Bypass Technology UPS Topology : Line Interactive Battery Quantity : 1 Battery Size : 12 V / 7 Ah Battery Type : Sealed Lead-Acid Battery Hot Swappable : No Replacement Battery Cartridge : RB1270B Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 2.5 min Runtime at Half Load : 7.6 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 30.99 x 17.78 x 8.89 (cm) Physical Dimensions - (WxHxD) (in) : 12.2 x 7 x 3.5 (in) Physical Dimensions - (WxHxD) (mm) : 310 x 178 x 89 (mm) Weight (kg) : 5.62 Weight (lb) : 12.4 Shipping Dimensions - (WxHxD) (cm) : 12.9 x 24.74 x 37.47 (cm) Shipping - Dimensions (WxHxD, in) : 5.08 x 9.74 x 14.75 (in) Shipping - Dimensions (WxHxD, mm) : 129.03 x 247.4 x 374.65 (mm) Shipping - Weight (kg) : 6.98 Shipping - Weight (lb) : 15.38 Circuit Breaker : 15 A Cord Length : 5 ft (1.5 m) Input Frequency Range : 57 Hz - 63 Hz Input Plug Type : NEMA 5-15P Input Voltage Range : 90 VAC - 148 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 45° Offset Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Simulated Sine Wave Outlets - Battery & Surge Protected : 6 Outlets - Surge-Only Protected : 6 Outlets - Total : 12 Outlet Type COMPUTED : 12 - NEMA 5-15R Output Power Factor : 0.6 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms USB Charge Port : No VA : 750 VA Watts : 450 W EMI/RFI Filtration COMPUTED : Yes Phone Protection RJ11 : 1-In / 2-Out Surge Suppression (Joules) : 1030 J EMI/RFI Filtration COMPUTED : Yes Phone Protection RJ11 : 1-In / 2-Out Surge Suppression (Joules) : 1030 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Software (Free Download) : PowerPanel® Personal Color : Black Form Factor : Compact Keyhole Mounting Slots : Yes Material of Construction : Plastic Operating Elevation : 0 - 6562 ft (0 - 2000 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 4th Ed. CEG Amount : $150000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U1B Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL1778 4th cUL No 107.3-05 FCC DOC Class B
Software Included	PowerPanel Personal Edition Software available for free download from cyberpowersystems.com
Energy Star	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Condition	No
UPC	0649532617661

Warranty

Limited Warranty	3 Year
