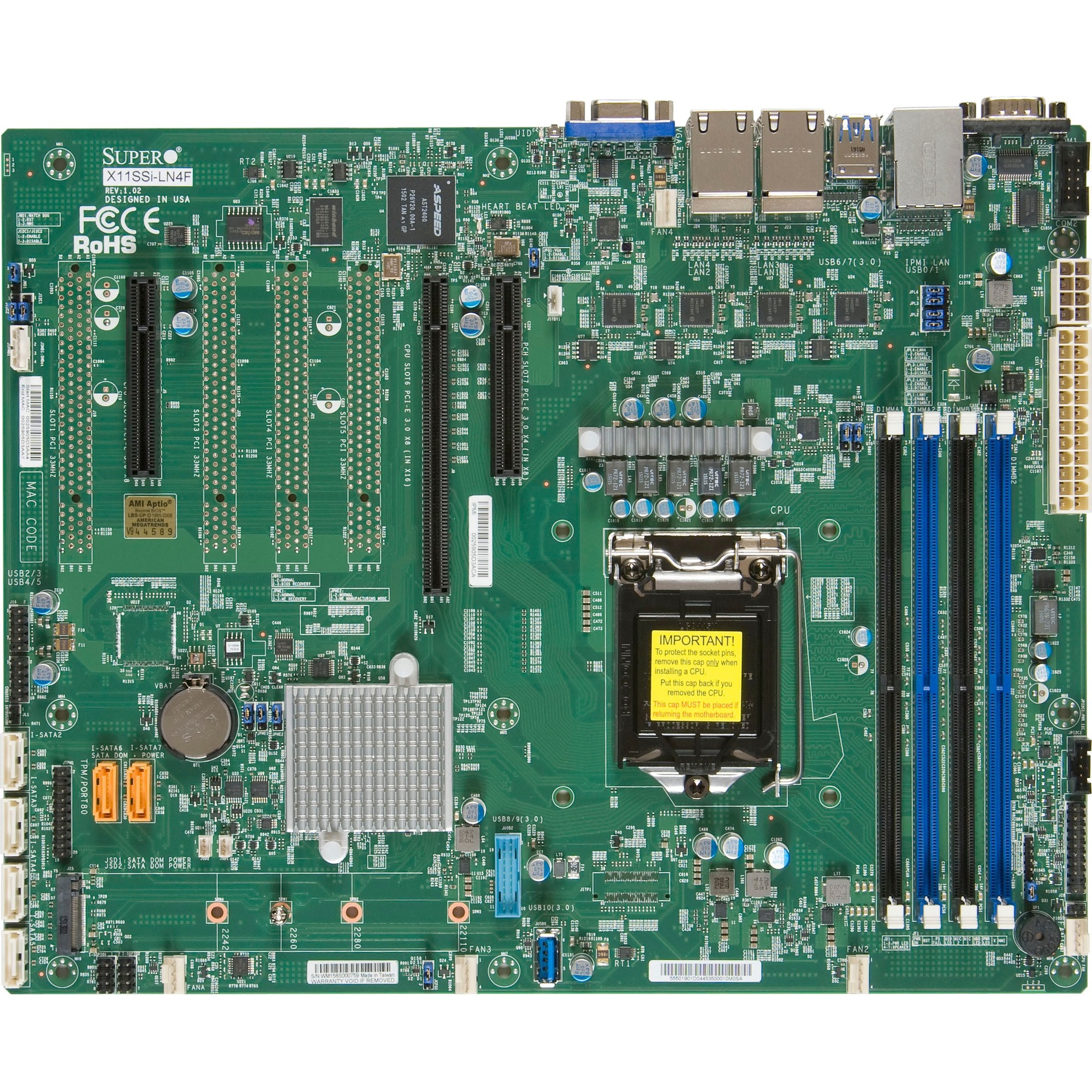

Supermicro X11SSi-LN4F Desktop Motherboard - Intel C236 Chipset - Socket H4 LGA-1151 - ATX
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X11SSI-LN4F-O |
| Brand Name | Supermicro |
| Product Model | X11SSi-LN4F |
| Product Name | X11SSi-LN4F Desktop Motherboard |
| Marketing Information | Xeon® E3-1200 v5 Family Boards / Socket H4 (LGA 1151) Supermicro's single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications. |
| Package Type | Retail |
| Product Type | Desktop Motherboard |
Processor & Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C236 |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported |
|
Memory
| Number of Memory Slots | 4 |
| Memory Form Factor |
|
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported |
|
| Memory Technology | DDR4 SDRAM |
I/O Controller
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
|
Video
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | AST2400 |
Network & Communication
| Gigabit Ethernet | Yes |
I/O Expansions
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
Interfaces/Ports
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| VGA | Yes |
Onboard Interfaces
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 3.0 Ports | 3 |
Physical Characteristics
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
Miscellaneous
| Compatibility | Supermicro Chassis 1U Chassis:
|
