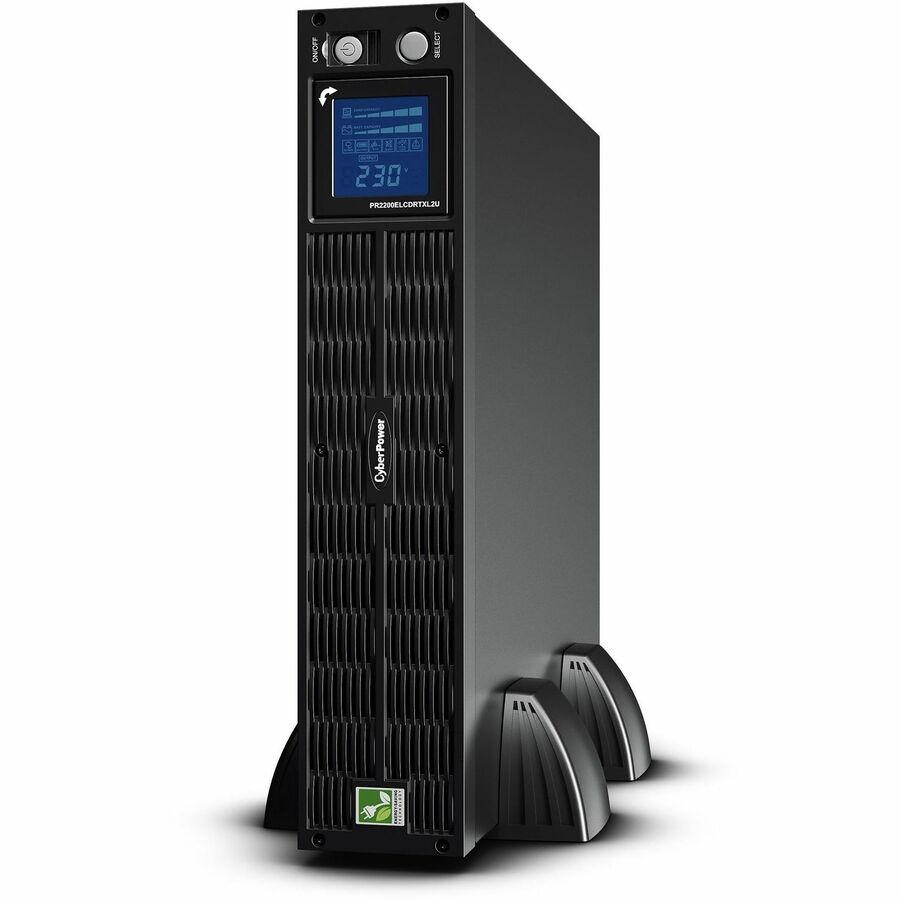

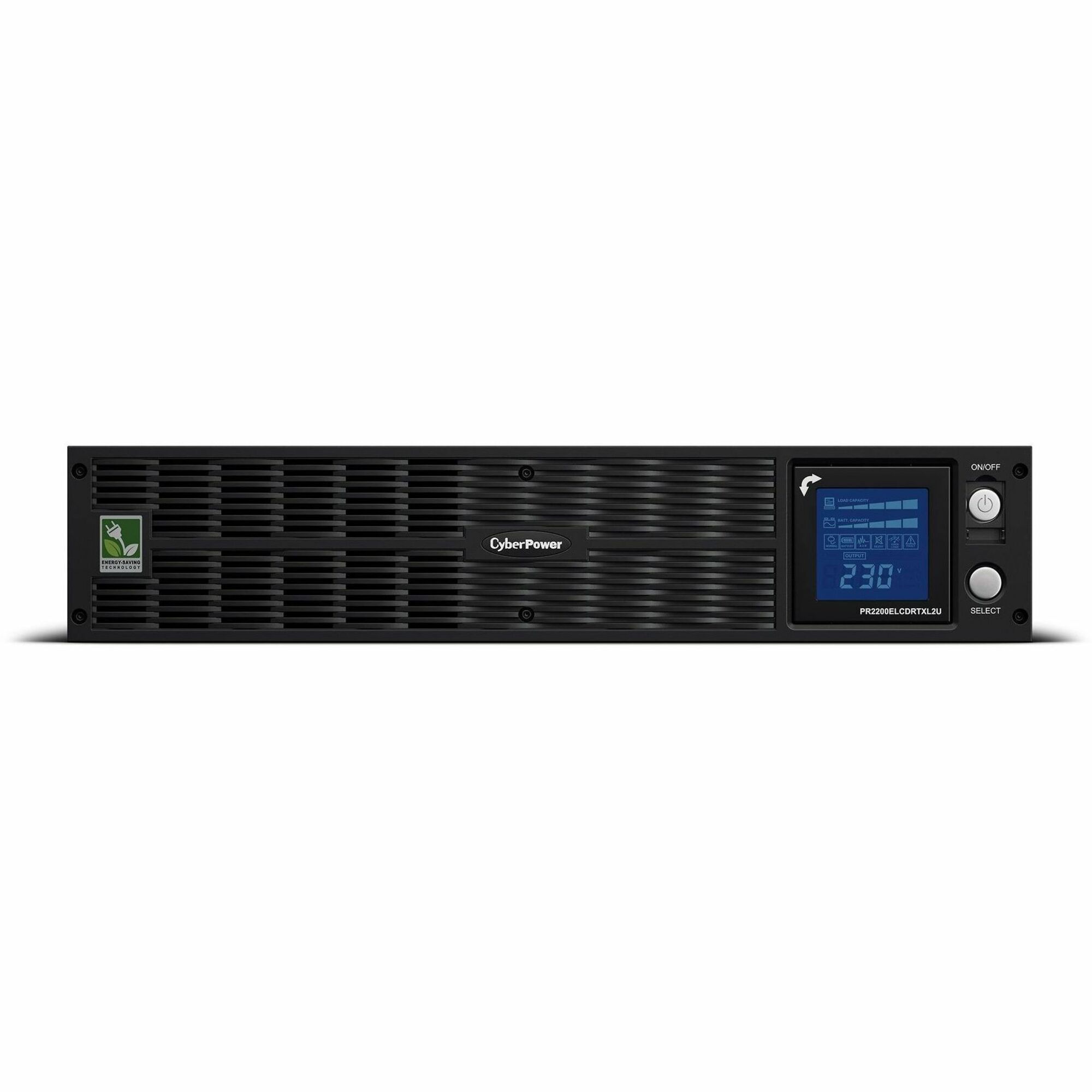

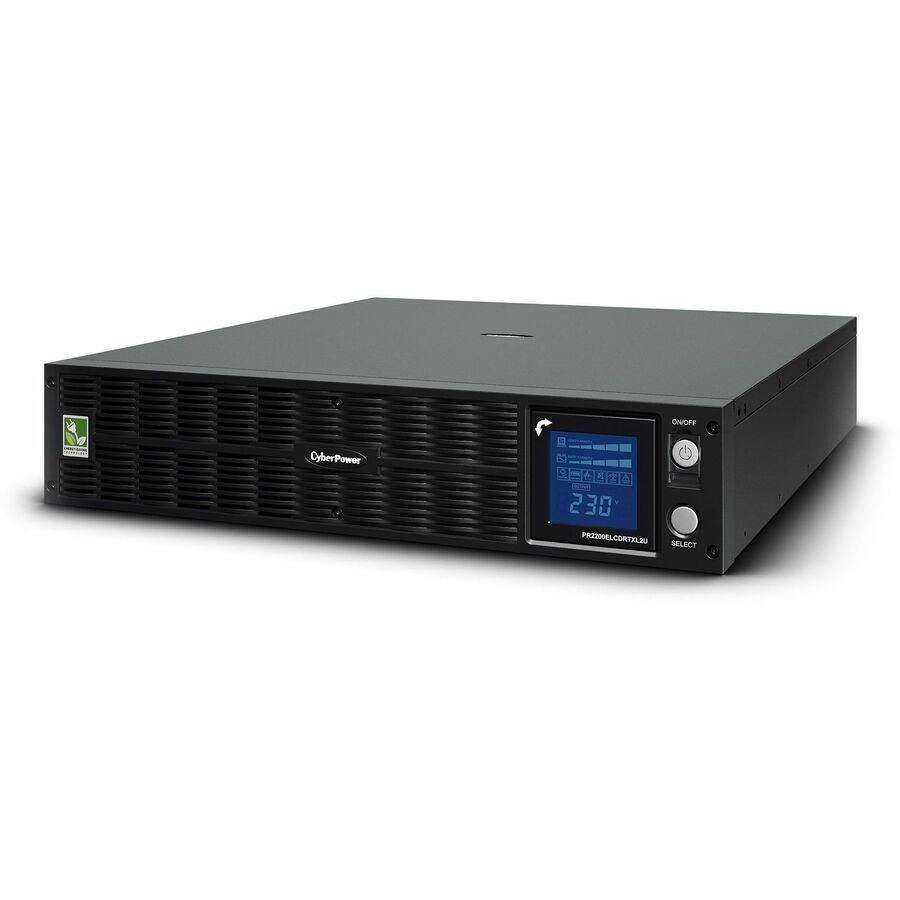

CyberPower PR2200ELCDRTXL2U Smart App Sinewave UPS Systems
2200VA/1650W, 230 VAC, IEC-320 C20, 2U, Rack / Tower, Sine Wave, 10 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
$1945.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR2200ELCDRTXL2U |
| Brand Name | CyberPower |
| Product Series | Smart App Sinewave UPS |
| Product Model | PR2200ELCDRTXL2U |
| Product Name | PR2200ELCDRTXL2U Smart App Sinewave UPS Systems |
| Product Type | Line-interactive UPS |
Technical Information
| AVR | Yes |
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type |
|
| Receptacle Detail | 1 x IEC 60320 C19 |
| Number of Battery & Surge Outlets | 10 |
| Number of Critical Load Outlets | 4 |
| Transfer Time | 4 ms |
| Dataline Protection |
|
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Application/Usage |
|
| Cord Length | 10 ft (3048 mm) |
| Circuit Breaker Current Rating | 20 A |
Power Description
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.65 kW |
| Input Voltage | 230 V AC |
| Input Voltage Range | 160 V AC - 280 V AC |
| Output Voltage |
|
| Input Frequency |
|
| Output Frequency |
|
| Waveform Type | Sine Wave |
| Surge Energy Rating | 810 J |
| Output Power Factor | 0.8 |
Display & Graphics
| Display | LCD |
Management
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
Controls/Indicators
| Status Indicators | LED Indicators: Power On |
Interfaces/Ports
| Serial Port | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
Battery Information
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Typical Battery Recharge Time | 6 Hour |
| Replaceable Battery | Yes |
Environmental Conditions
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Sound Emission (A-Weighted) | 34.5 dB(A) |
| Thermal Dissipation | 288 BTU/h |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.46" (87.88 mm) |
| Width | 17.05" (433.07 mm) |
| Depth | 18.90" (480.06 mm) |
| Weight (Approximate) | 77 lb (34926.61 g) |
Miscellaneous
| Package Contents |
|
| Additional Information | |
| Certifications & Standards | CE |
| Energy Star | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 4712364141591 |
Warranty
| Limited Warranty | 3 Year |
| Directly Connected Equipment Guarantee | $400000 Lifetime |
