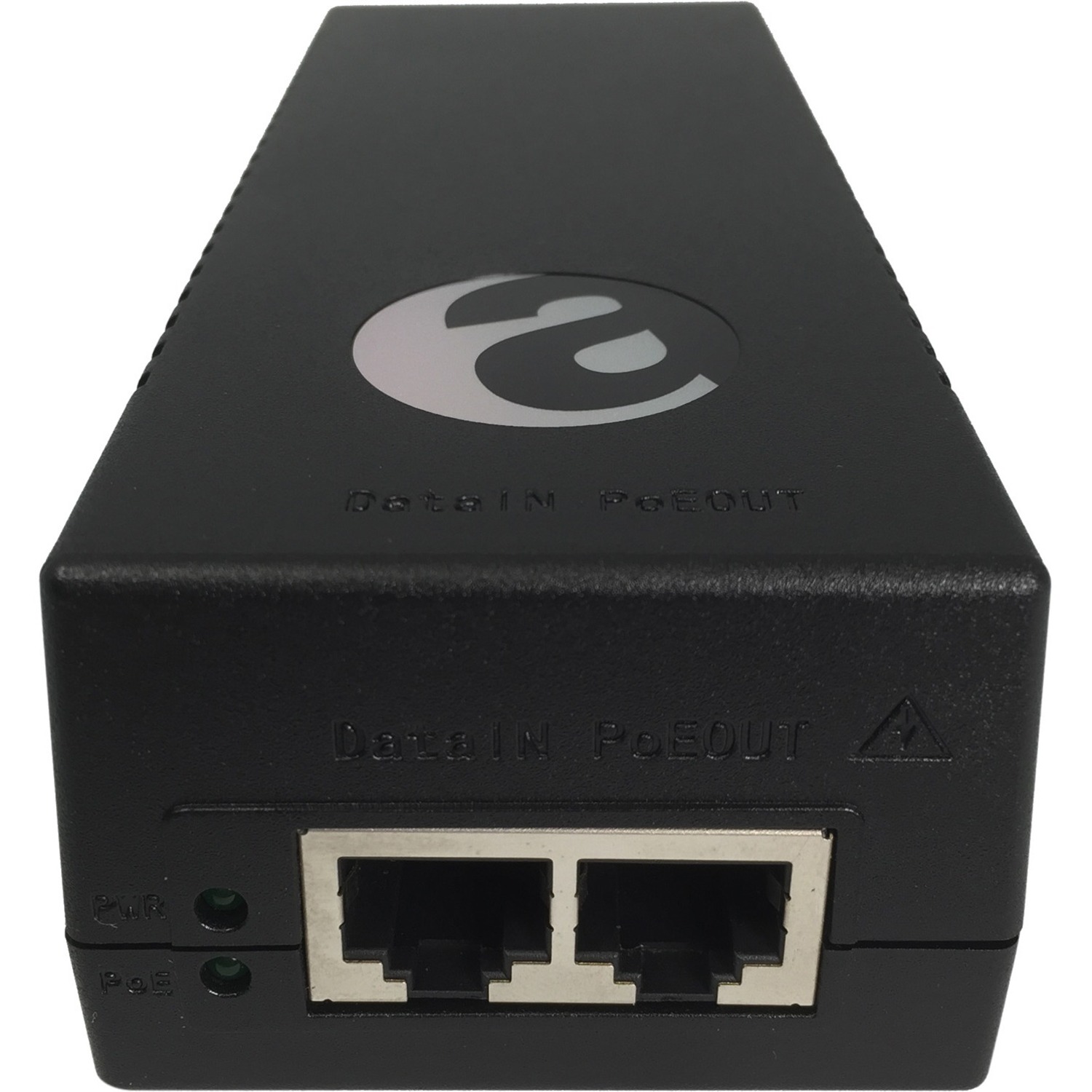

Amer Power-over-Ethernet Injector
120 V AC, 230 V AC Input - 52 V DC Output - 1 x Gigabit Ethernet Input Port(s) - 1 x Gigabit Ethernet Output Port(s) - 15.40 W
$35.99
In Stock Availability
- All Locations: (1+)
- Mississauga, ON (1+)
General Information
| Manufacturer | Amer Networks, Inc |
| Manufacturer Part Number | PIG15 |
| Brand Name | Amer |
| Product Model | PIG15 |
| Product Name | Power-over-Ethernet Injector |
| Marketing Information | The PIG15 is a single port Mid-Span offering a compact and cost effective and fully IEEE802.3af compliant solution.It can be used to power wireless LAN / WAN access points, IP security cameras, VoIP telephones and any other low port density installations. The PIG15 PoE injector eliminates the need for an external power supply and any associated AC/DC power cabling. It provides a compact, affordable, safe and reliable power solution over existing Ethernet cabling. |
| Packaged Quantity | 1 |
| Product Type | PoE Injector |
Technical Information
| Protection Type | Surge Protection |
Power Description
| Input Voltage |
|
| Maximum Output Voltage | 52 V DC |
| Maximum Input Current | 300 mA |
| Minimum Frequency | 50 Hz |
| Maximum Frequency | 60 Hz |
| Maximum Output Power | 15.40 W |
Interfaces/Ports
| Input Ports | 1 x Gigabit Ethernet |
| Output Ports | 1 x Gigabit Ethernet |
Physical Characteristics
| Form Factor | External |
| Height | 1.57" (40 mm) |
| Width | 2.42" (61.50 mm) |
| Depth | 5.73" (145.50 mm) |
Miscellaneous
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Condition | No |
| UPC | 0650177152851 |
