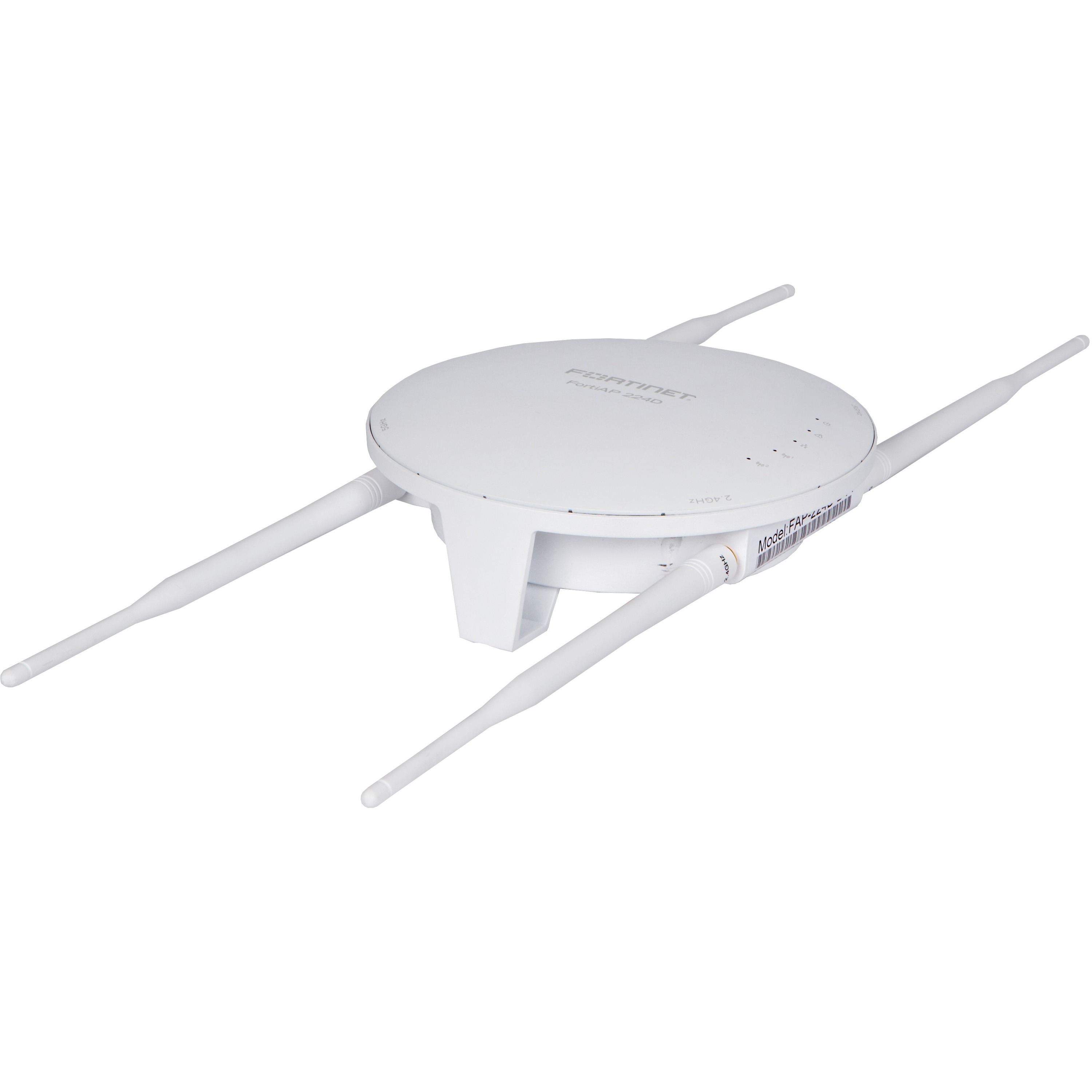

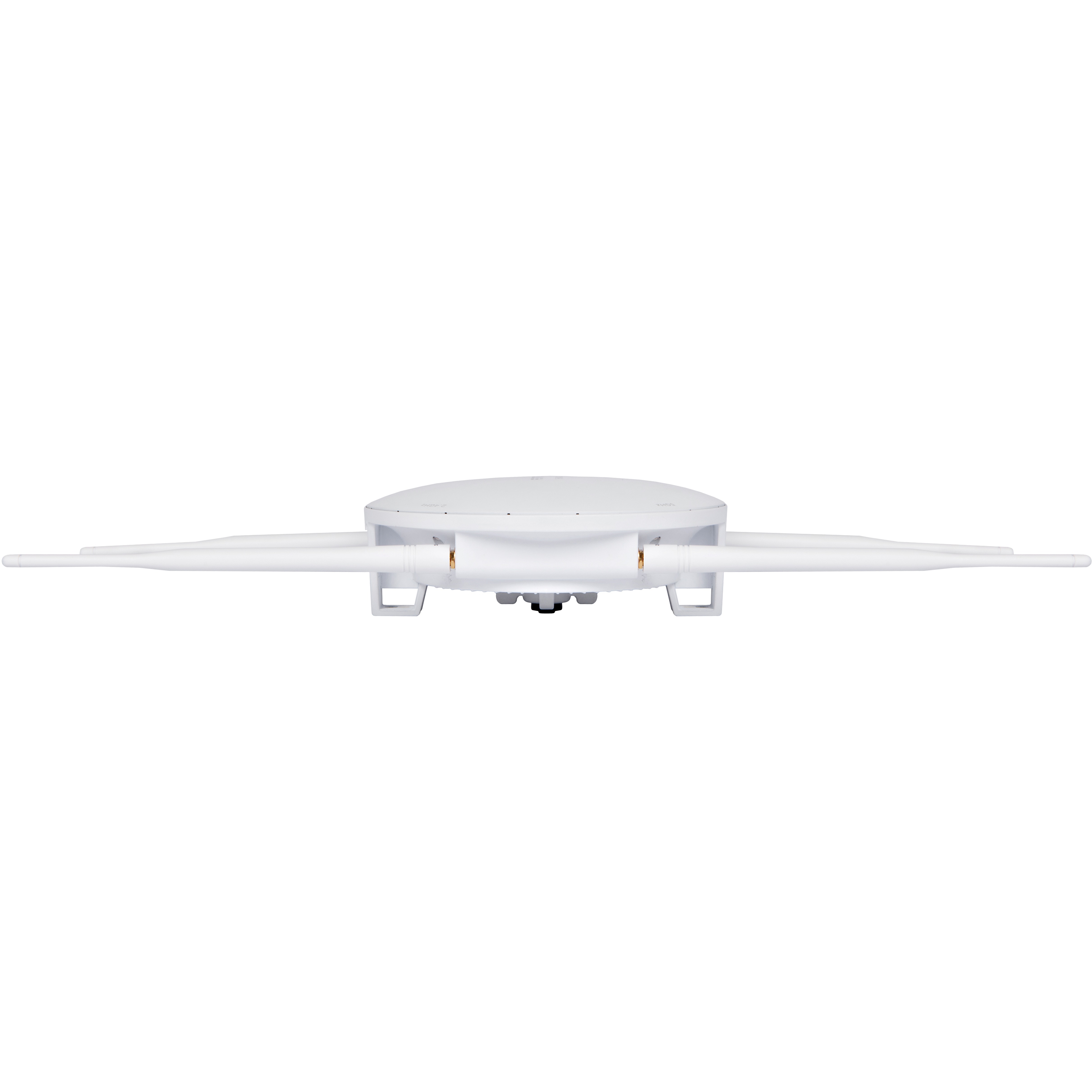

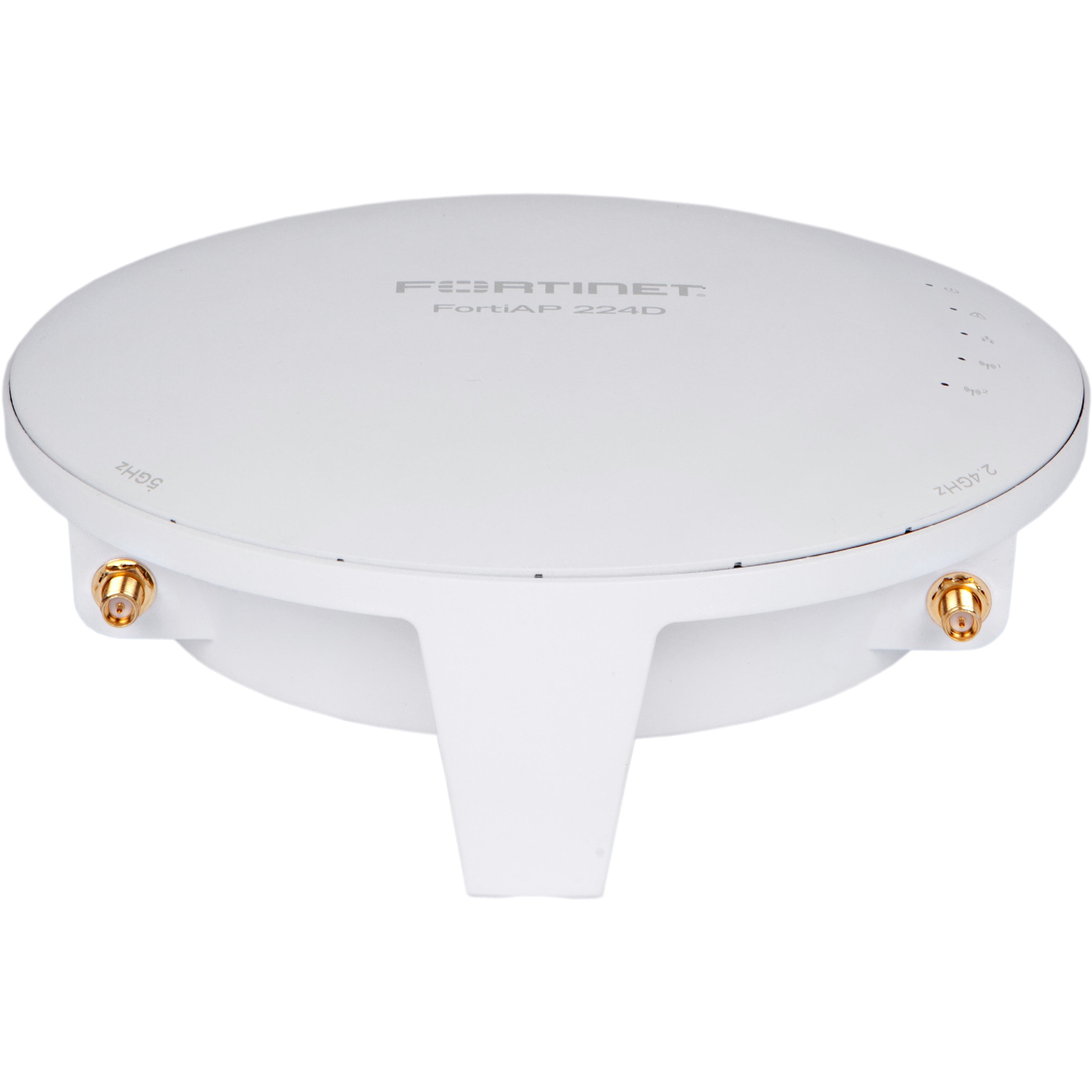

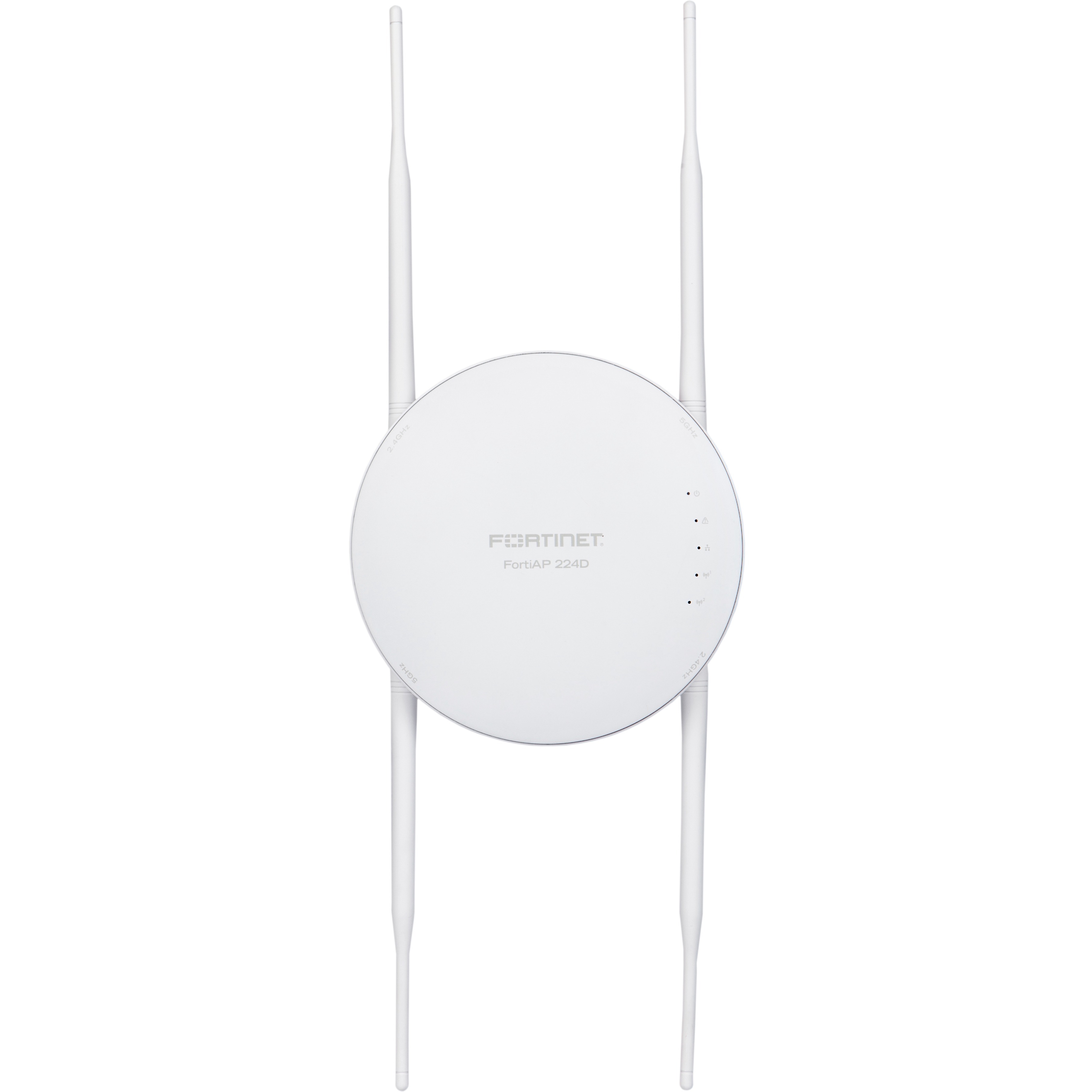

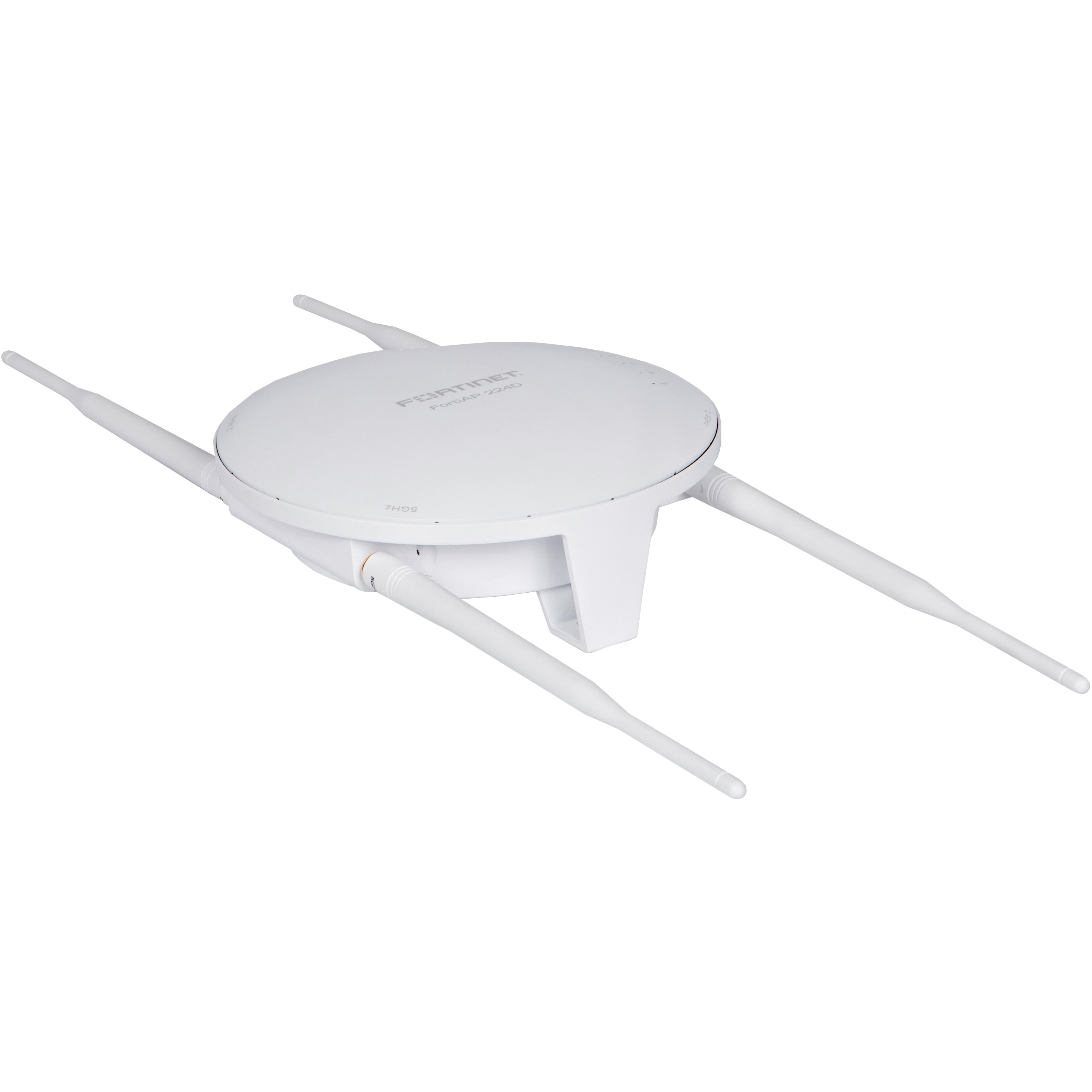

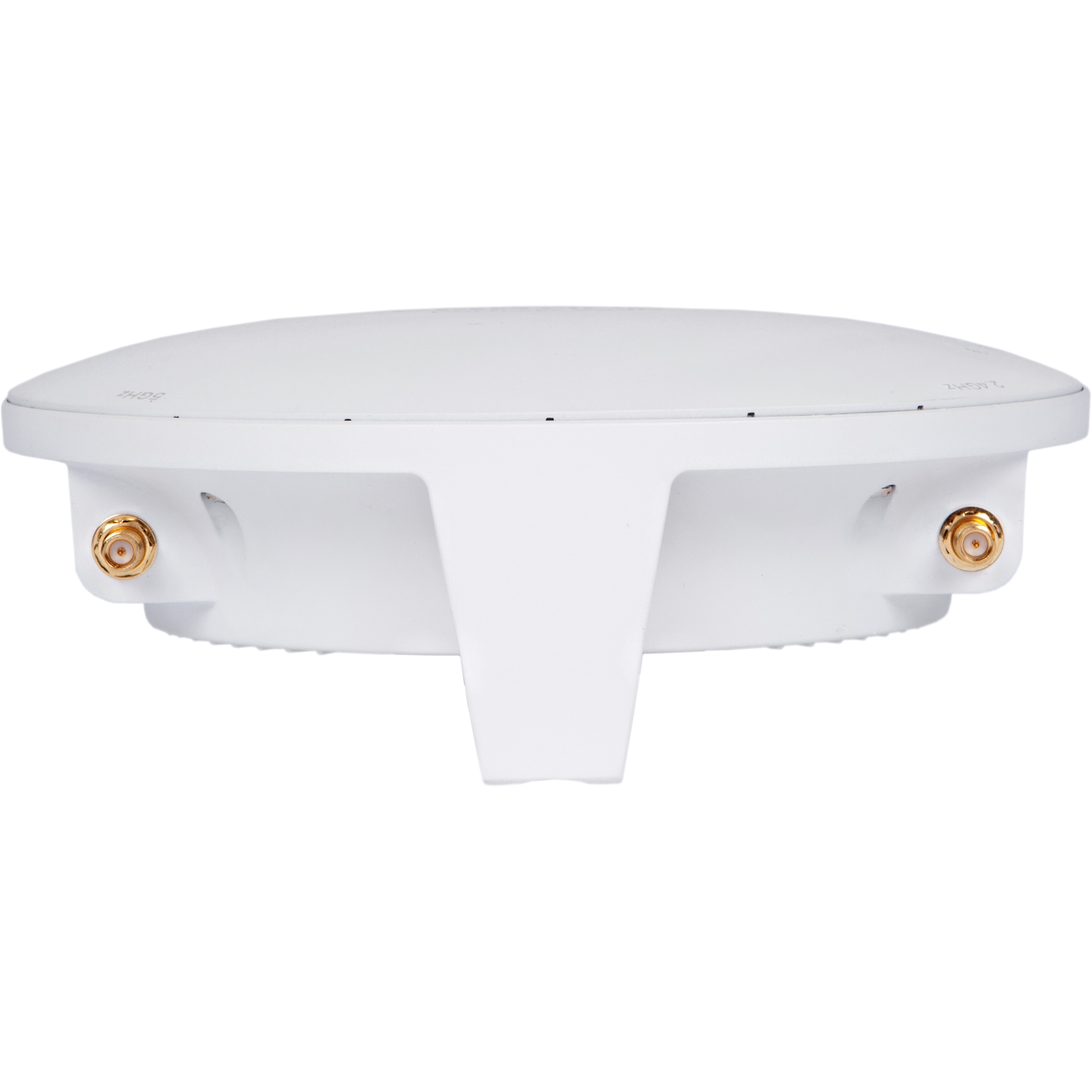

Fortinet FortiAP 224D IEEE 802.11a/b/g/n 300 Mbit/s Wireless Access Point

Part No. FAP-224D-V

by Fortinet, Inc

This Product is currently not in offering

Fortinet FortiAP 224D IEEE 802.11a/b/g/n 300 Mbit/s Wireless Access Point

Part No. FAP-224D-V

by Fortinet, Inc

This Product is currently not in offering

General Information
ManufacturerFortinet, Inc
Manufacturer Part NumberFAP-224D-V
Brand NameFortinet
Product LineFortiAP
Product Model224D
Product NameFortiAP 224D Wireless Access Point
Marketing InformationThin Wireless LAN Access Points

FortiAP are thin access points, delivering secure, identity-driven WiFi access for your enterprise network, managed centrally by the integrated WLAN controller of any FortiGate® security appliance. With the integration of the wireless controller functionality into the market leading FortiGate appliance, Fortinet delivers a true Unified Access Layer. This enables you to easily manage wired and wireless security from a Single Pane of Glass management console and protects your network from the latest security threats.

Outdoor Enterprise WLAN Deployment

FortiAP outdoor WLAN access points are ruggedized products designed for installation in harsh physical environments. Outdoor FortiAPs can provide outdoor access to clients when deployed in AP mode, or they can be used as a wireless mesh client to enabling bridging or point-to-multipoint coverage for large outdoor areas. Some models are equipped with external antenna connectors to support the use of directional or panel antennas and dual-port models feature PoE pass-through to power IP CCTV camera.

Product TypeWireless Access Point
Technical Information
Wireless LAN StandardIEEE 802.11a/b/g/n
Frequency Band
  • 2.40 GHz
  • 5 GHz
Number of External Antennas4
Wireless Transmission Speed300 Mbit/s
MIMO TechnologyYes
Interfaces/Ports
Ethernet Technology
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports1
PoE PD PortYes
VGANo
HDMINo
USBNo
PowerlineNo
Management PortNo
Physical Characteristics
Form Factor
  • Wall Mountable
  • Pole-mountable
Height1.90" (48.26 mm)
Width6.90" (175.26 mm)
Depth6.90" (175.26 mm)
Weight (Approximate)12.32 oz (349.266125 g)
Miscellaneous
Package Contents
  • FortiAP 224D Wireless Access Point
  • PoE Injector with AC Power Adapter
  • Pole Mount Kit
  • Wall Mount Kit
  • Grouding Cable
  • 4 x Dipole Antennas
Environmentally FriendlyYes
