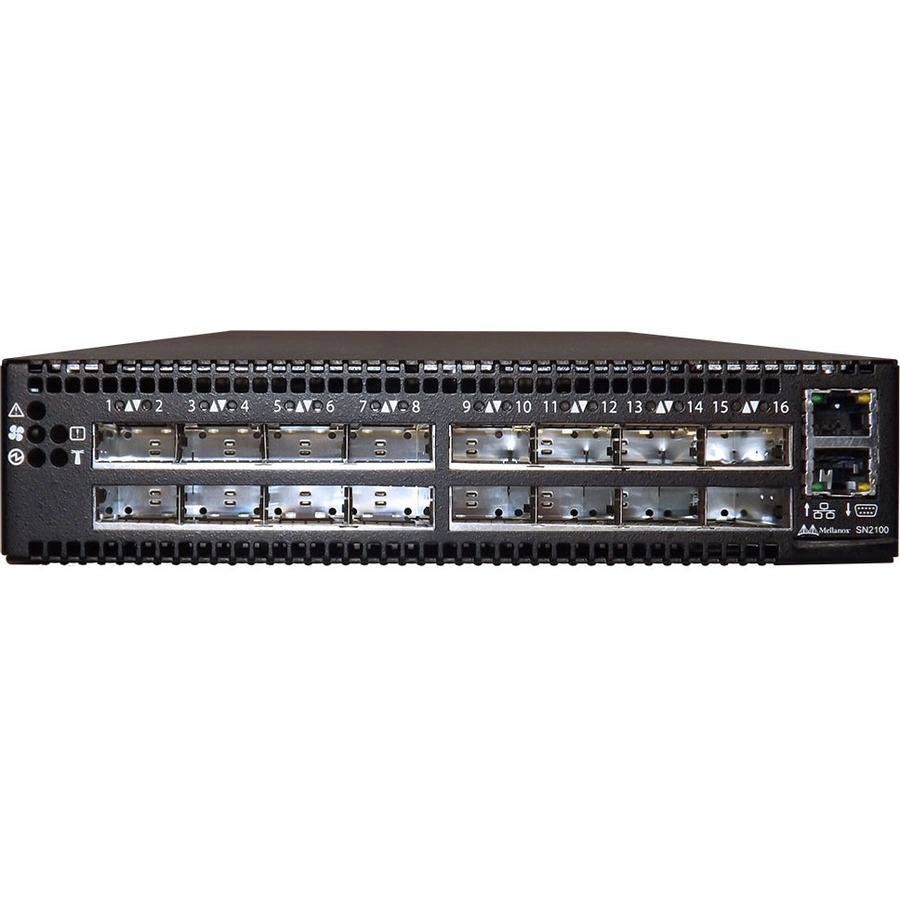

Mellanox Half-Width 16-Port Non-Blocking 100GbE Open Ethernet Switch System
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | NVIDIA Corporation |
| Manufacturer Part Number | MSN2100-BB2FC |
| Brand Name | Mellanox |
| Product Line | Spectrum |
| Product Model | SN2100 |
| Product Name | Half-Width 16-Port Non-Blocking 100GbE Open Ethernet Switch System |
| Marketing Information | Half-Width 16-port Non-blocking 100GbE Open Ethernet Switch System The SN2100 switch provides a high density, side-by-side 100GbE switching solution which scales up to 64 25GbE ports in 1RU for the growing demands of today's database, storage, data centers environments. The SN2100 switch is an ideal spine and top of rack (ToR) solution, allowing maximum flexibility, with port speeds spanning from 10Gb/s to 100 Gb/s per port and port density that enables full rack connectivity to any server at any speed. The uplink ports allow a variety of blocking ratios that suit any application requirement. Powered by the Spectrum ASIC and packed with 16 ports running at 100GbE, the SN2100 carries a whopping switching capacity of 3.2Tb/s with a landmark 4.8Bpps processing capacity in a compact 1RU form factor. |
| Product Type | Ethernet Switch |
Interfaces/Ports
| Uplink Port | No |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 16 x 40 Gigabit Ethernet Expansion Slot |
Media & Performance
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 40 Gigabit Ethernet |
| Network Technology | 40GBase-X |
I/O Expansions
| Total Number of Expansion Slots | 16.0 |
| Expansion Slot Type | QSFP+ |
| Shared SFP Slot | No |
Network & Communication
| Layer Supported | 3 |
Management & Protocols
| Manageable | Yes |
Power Description
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
Physical Characteristics
| Compatible Rack Unit | 1U |
| Form Factor |
|
| Height | 1.72" (43.69 mm) |
| Width | 7.87" (199.90 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 10.01 lb (4540 g) |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
