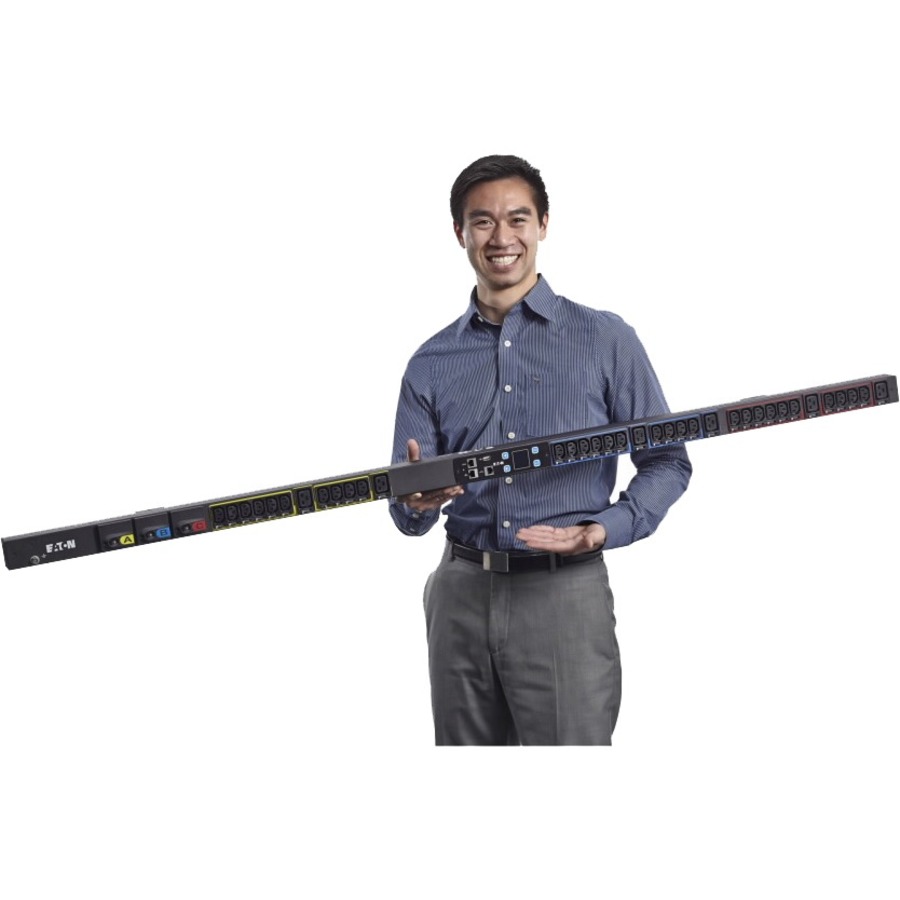

Eaton ePDU Metered 60-Outlet PDU
IEC 60309 460P9 - 48 x IEC 60320 C13, 12 x IEC 60320 C19 - 230 V AC - 17.30 kW - Network (RJ-45) - 0U - Vertical - Rack-mountable
$3752.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | EMI338-06 |
| Brand Name | Eaton |
| Product Line | ePDU |
| Product Series | Metered |
| Product Name | ePDU Metered 60-Outlet PDU |
| Marketing Information | Eaton Metered Input ePDUs Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address. |
| Product Type | PDU |
Technical Information
| Plug/Connector Type | IEC 60309 460P9 |
| Plug/Connector Detail | 1 x IEC 60309 460P9 |
| Receptacle Type |
|
| Receptacle Detail |
|
Power Description
| Input Voltage | 230 V AC |
| Power Rating (Watt) | 17.30 kW |
| Input Current | 48 A |
Interfaces/Ports
| Network (RJ-45) | Yes |
Physical Characteristics
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 63.20" (1605.28 mm) |
| Width | 4.20" (106.68 mm) |
| Depth | 2.09" (53.09 mm) |
Miscellaneous
| Country of Origin | United States |
| Condition | No |
| UPC | 0786685985176 |
Warranty
| Limited Warranty | 3 Year |
