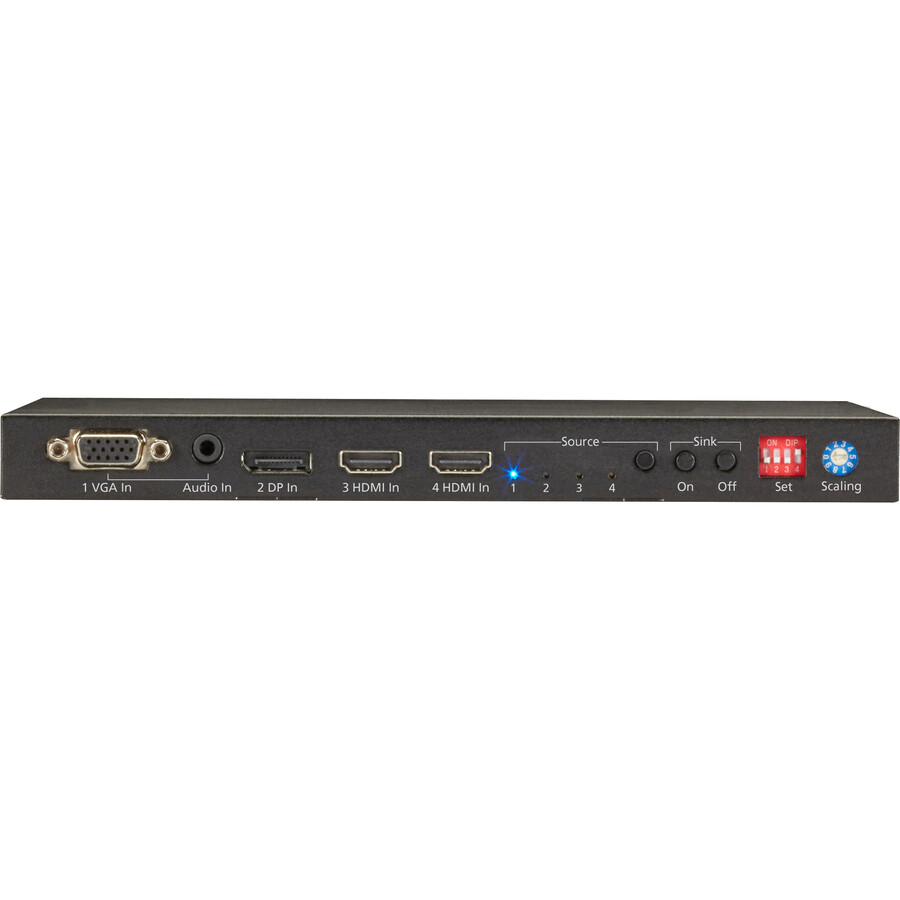

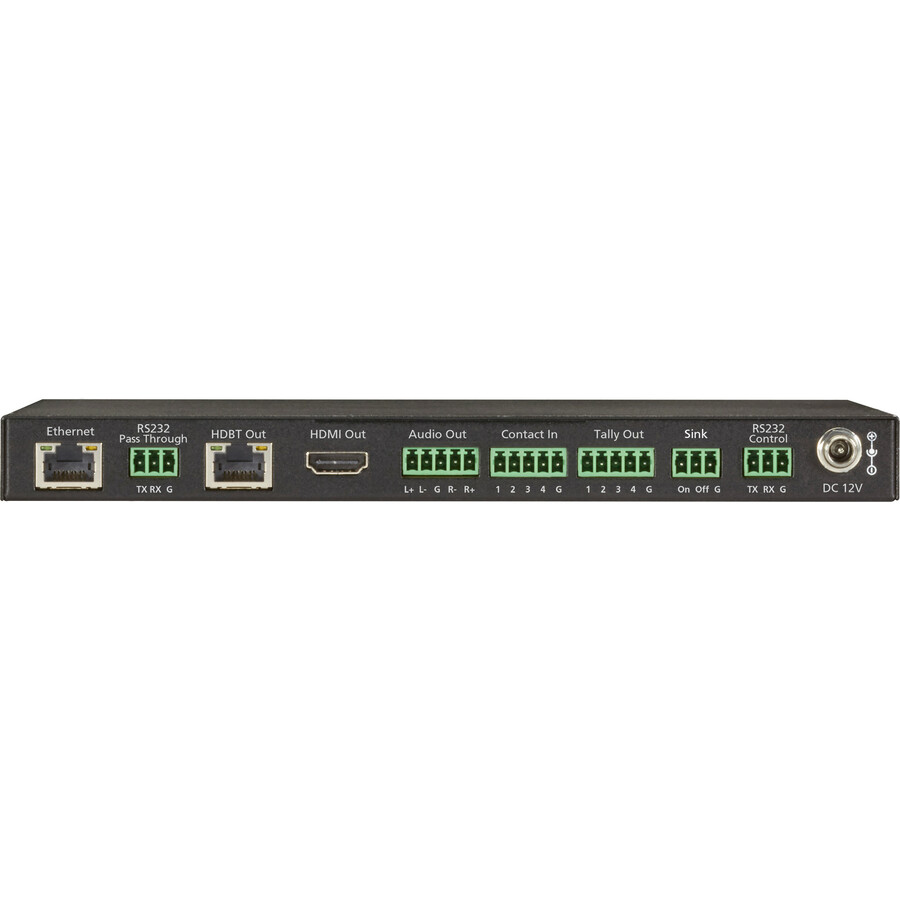

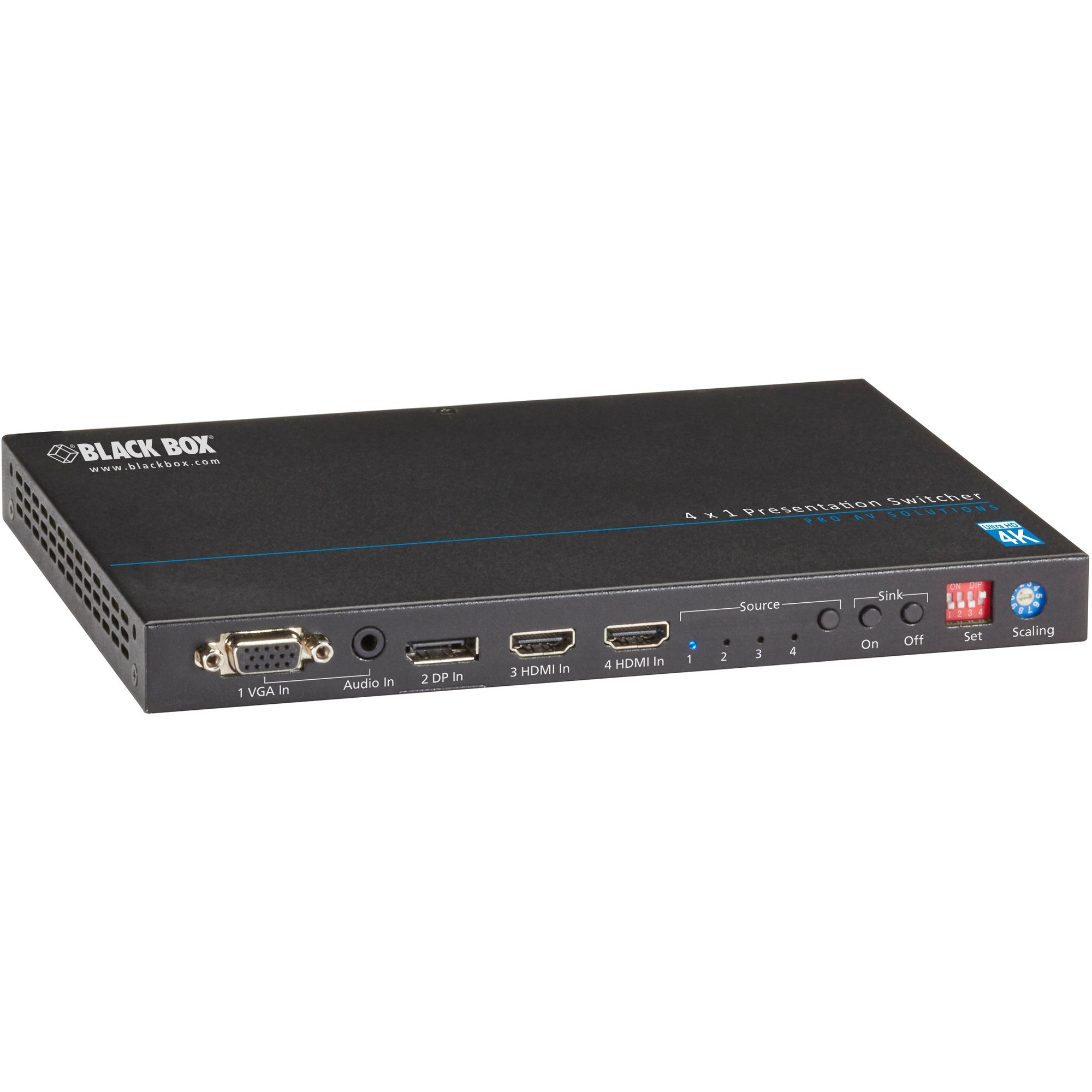

Black Box 4x1 Presentation Switcher - 4K, HDMI, DisplayPort, VGA, HDBaseT
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | AVSC-0401H |
| Brand Name | Black Box |
| Product Model | AVSC-0401H |
| Product Name | 4x1 Presentation Switcher - 4K, HDMI, DisplayPort, VGA, HDBaseT |
| Marketing Information | Simplify classroom and small office system integration. Install this multi-format presentation switcher/scaler beneath conference tables and in lecterns to provide localized presentation switching support. Built-in HDBaseT extension up to 330 ft. for connection to remote displays. Control via RS-232 and front panel buttons. CEC support to control source devices. Analog audio extraction to connect to separate audio amplifier or speaker system. PoH line-powering for connected HDBaseT receivers. DIP switch provided to adjust automatic or manual switching mode. LED indicators for active input and power. |
| Packaged Quantity | 1 |
| Product Type | Audio/Video Switchbox |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 4 |
| Device Supported | Display |
| Number of Displays Supported | 1 |
| Graphics Modes | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| HDMI In | Yes |
| HDMI Out | Yes |
| VGA In | Yes |
| DisplayPort | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 2 |
| Number of HDMI Inputs | 2 |
| Number of VGA Inputs | 1 |
| Number of VGA Outputs | 1 |
| Number of DisplayPort Inputs | 1 |
| Media Type Supported | Twisted Pair |
| Maximum Operating Distance | 330 ft (100584 mm) |
| Form Factor | Rack-mountable |
| Height | 3.20" (81.28 mm) |
| Width | 10.25" (260.35 mm) |
| Depth | 14.25" (361.95 mm) |
| Weight (Approximate) | 2 kg |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Condition | No |
| UPC | 822088122821 |
| Limited Warranty | 3 Year |
