Connect a Low-Profile PCIe Card to Computers Without Expansion Slots

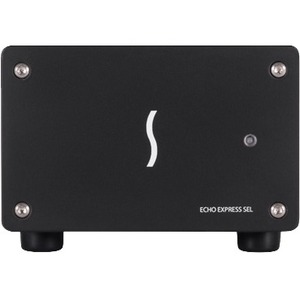

Shopping for a new computer? Small and thin is in-the latest ultra-light notebooks, small form factor, and all-in-one desktops are slender marvels of engineering. But, thinness comes with a cost-there's nowhere to install PCIe cards that provide additional connectivity and processing capabilities beyond a computer's standard ports. Thin Mac® and Windows® computers with Thunderbolt™ 3 ports still offer tremendous processing power, but for many, such as pros in the creative fields, onboard processing power alone is not enough. Fortunately, you don't have to limit your choices to desktop workstations-think external. Sonnet's Echo Express SEL - Thunderbolt 3 Edition enables you to connect a single low-profile PCIe card outside of the computer. Through its x8 PCIe 3.0 slot, this little Thunderbolt 3-to-PCIe card expansion chassis supports many Thunderbolt-compatible 16Gb and 8Gb Fibre Channel, 40Gb and 10 Gigabit Ethernet, video capture and processing, SAS and SATA host bus adapters, and RAID controller cards.

The Echo Express SEL - Thunderbolt 3 Edition features 40Gbps Thunderbolt 3, which offers double the speed and connectivity of Thunderbolt 2, and yields up to 2750 MB/s of PCIe bandwidth, enabling it to support 4K video capture and processing cards at high frame rates, and 16Gb FC cards and dual-port 10GbE cards at full performance. With the ability to handle the most demanding, highest performance PCIe cards, support for connecting two 4K displays @ 60Hz or one 5K display @ 60Hz, and support for a vast array of Thunderbolt and USB peripheral devices, Thunderbolt 3 is a leap forward in every way.

• Echo Express SEL - Thunderbolt 3 Edition Thunderbolt 3-to-PCIe Card Expansion System
• Power adapter
• Power cord
• 0.5-meter Thunderbolt 3 (40Gbps) cable
• Thunderbolt connector retainer clip
• Documentation

• PCIe Cards Supported: One low-profile PCIe card
• Power Adapter: Universal 60W, 100-240V AC, 50-60 Hz
• Operating Temperature: 0°C to 35°C (32°F to 95°F)

• Two Thunderbolt 3 ports
• Power port

Expansion Slot:

• One x8 PCIe 3.0 slot
• x8 mechanical
• x4 electrical (Thunderbolt 3 spec)

Mac Compatibility:

• MacBook Pro (15-inch, Late 2016)
• MacBook Pro (13-inch, Late 2016, Four Thunderbolt 3 Ports)
• MacBook Pro (13-inch, Late 2016, Two Thunderbolt 3 Ports)
• Mac with Thunderbolt or Thunderbolt 2 ports and Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter
• macOS™ 10.12.1+

PC Compatibility:

• PC with a Thunderbolt 3
• Windows 10
