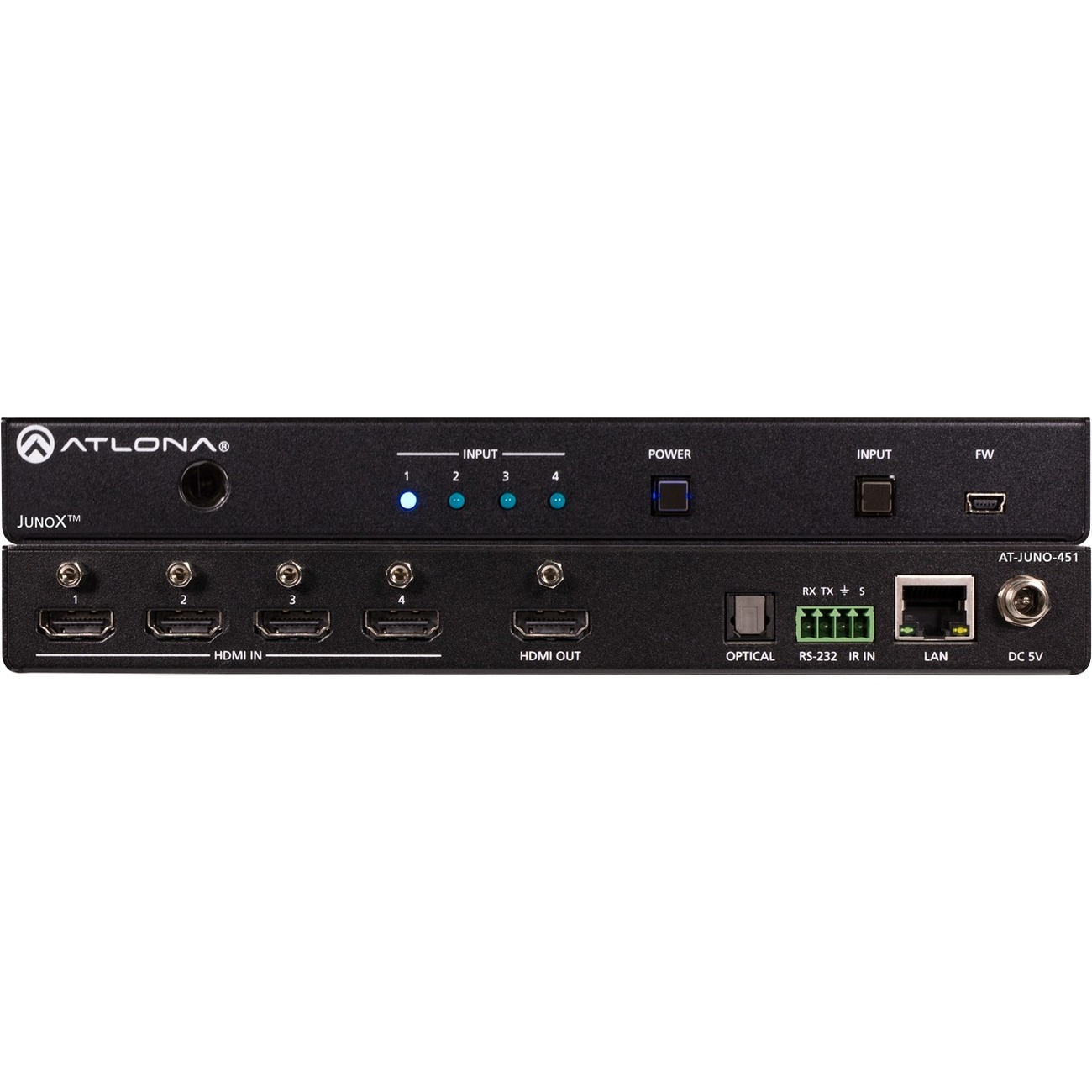

Atlona 4K HDR Four-Input HDMI Switcher
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-JUNO-451 |
| Brand Name | Atlona |
| Product Line | JUNOX |
| Product Model | JUNO-451 |
| Product Name | 4K HDR Four-Input HDMI Switcher |

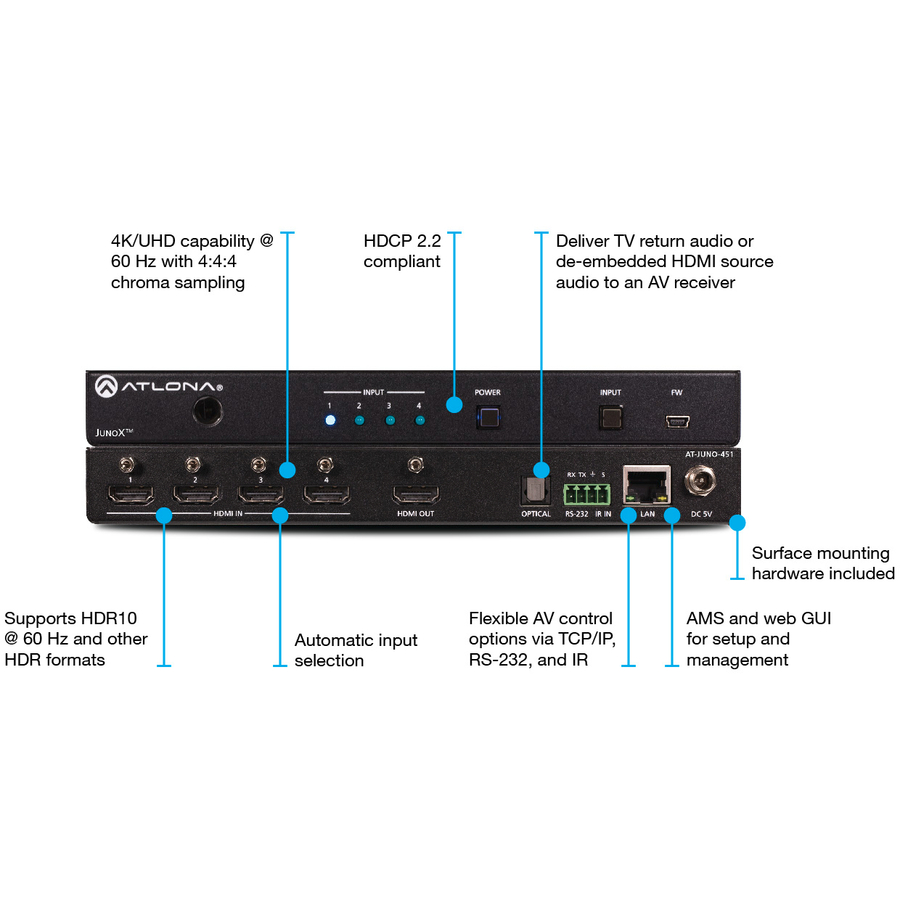

| Marketing Information | The Atlona JunoX™ 451 (AT-JUNO-451) is a 4x1 HDMI switcher for high dynamic range (HDR) formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The JunoX 451 is ideal for residential applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0a specification, plus the ability to pass metadata for HDR content. The JunoX 451 includes EDID management features and automatic input switching. It also supports the HDMI Audio Return Channel for receiving digital audio from a television, and includes a TOSLINK digital audio output for sending this audio an AV receiver or soundbar. This JunoX Series HDMI switcher can be controlled via Ethernet, RS-232, and IR. A handheld IR remote control is included. The JunoX 451 is designed to deliver dependable, pristine-quality image presentations in residential as well as commercial applications. It includes Atlona's award-winning 10 year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence. Applications
4x1 HDMI Switcher
|
| Product Type | Audio/Video Switchbox |
Technical Information
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 4 |
| Device Supported |
|
| Number of Displays Supported | 1 |
Video
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
Interfaces/Ports
| HDMI In | Yes |
| HDMI Out | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 1 |
Media & Performance
| Maximum Operating Distance | 30 ft (9144 mm) |
Physical Characteristics
| Form Factor |
|
| Height | 1.02" (26 mm) |
| Width | 8.62" (219 mm) |
| Depth | 5.98" (152 mm) |
| Weight (Approximate) | 820 g |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty
| Limited Warranty | 10 Year |
