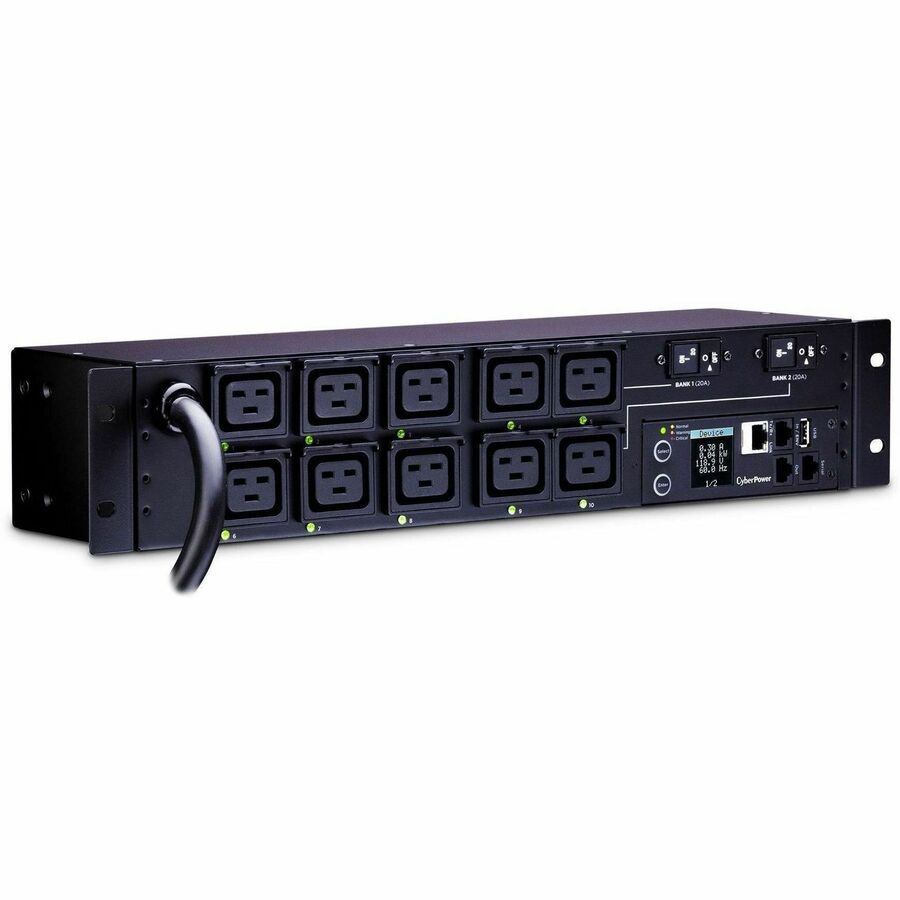

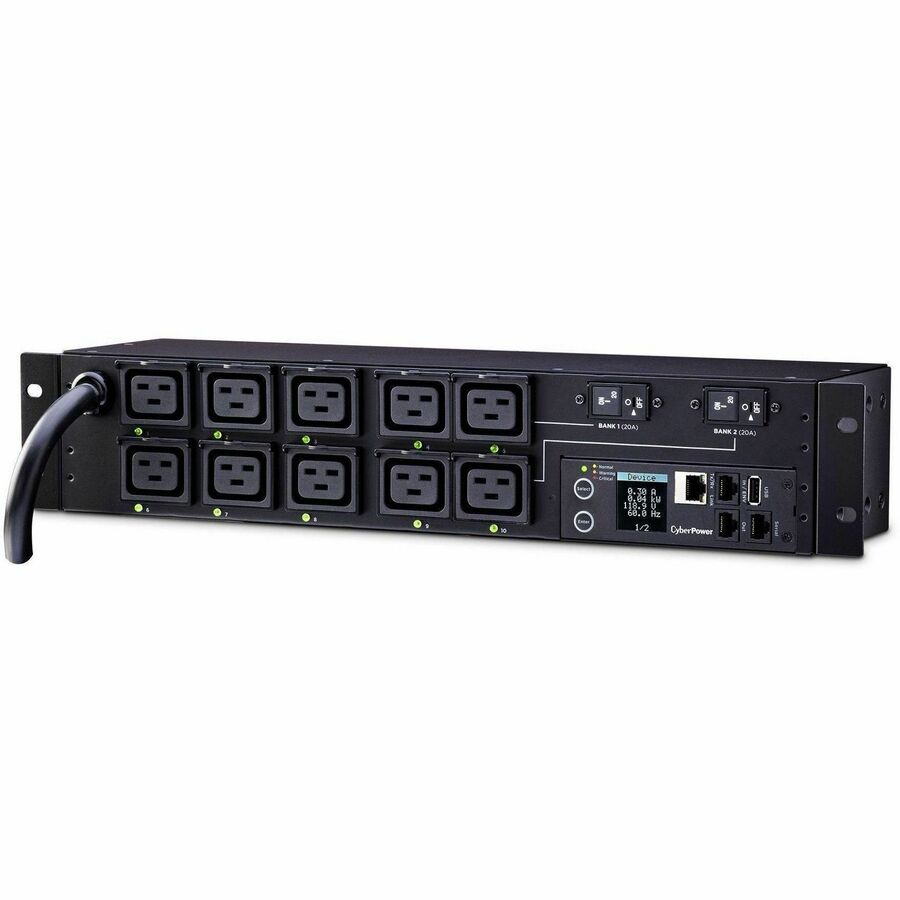

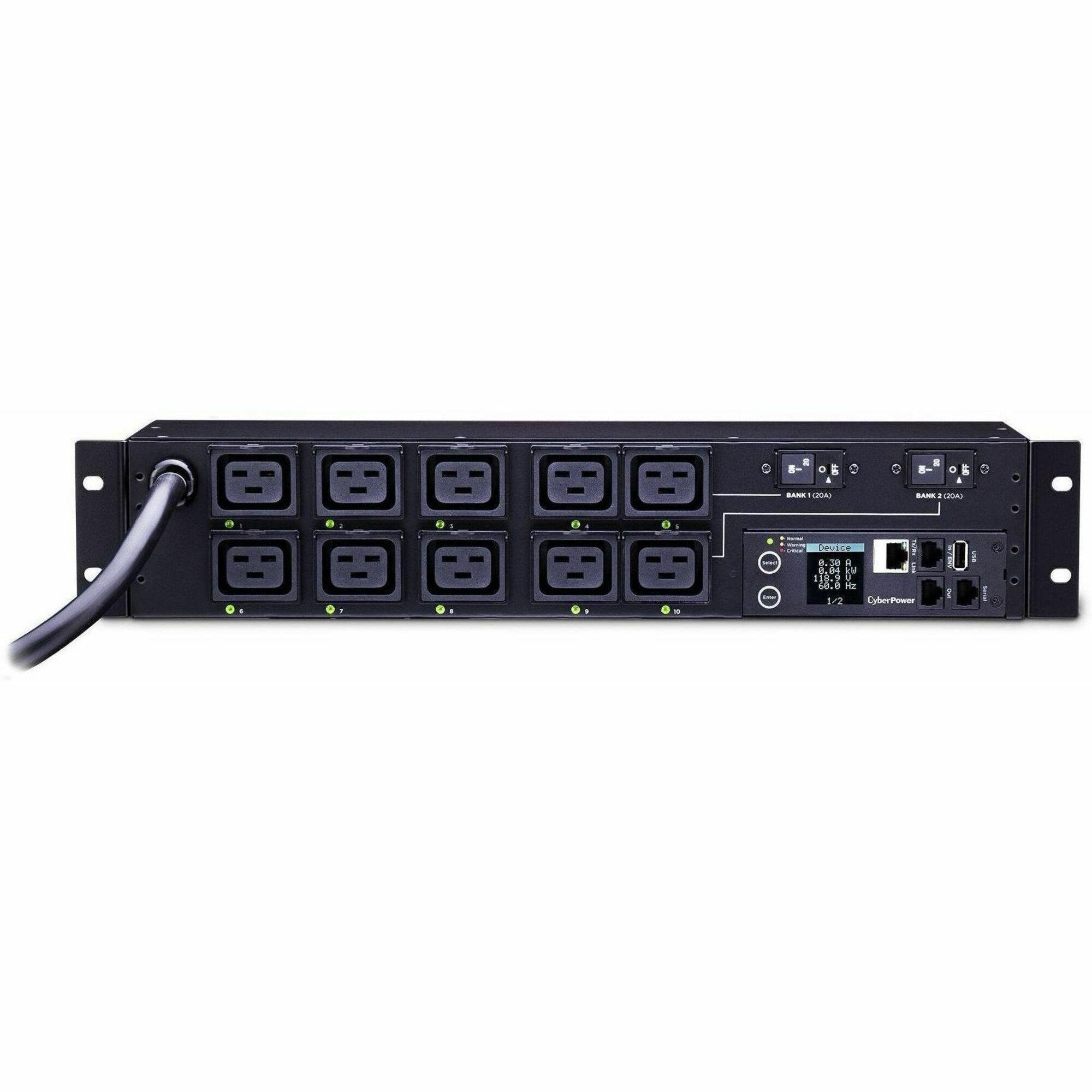

CyberPower PDU81009 200 - 240 VAC 30A Switched Metered-by-Outlet

10 Outlets, 12 ft, NEMA L6-30P, Horizontal, 2U, LCD, 3YR Warranty

Part No. PDU81009

by CyberPower Systems, Inc

$1935.99

Specifications
Services (1)

General Information

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU81009
Brand Name	CyberPower
Product Series	Switched Metered-by-Outlet PDU
Product Model	PDU81009
Product Name	PDU81009
Marketing Information	Streamline capacity planning and power management with the CyberPower PDU81009 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more. The PDU81009 supports inputs between 200-240V and includes ten (10) IEC-320 C19 outlets and a single NEMA L6-30P input power plug. Other features include a rack mount design (2U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81009 is protected by a three-year limited warranty.
Product Type	PDU

Technical Information

PDU Type	Switched Metered-by-Outlet
Phase	Single Phase
Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C19
Receptacle Detail	10 x IEC 60320 C19
Protection Type	Overload Protection
Features	LCD Display

Power Description

Input Voltage	120 V AC 230 V AC
Input Voltage Range	100 V AC - 240 V AC
Output Voltage Range	100 V AC - 240 V AC
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)	Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	2U
Cord Length	12 ft (3.66 m)
Height	3.50" (88.90 mm)
Width	17.05" (433.07 mm)
Depth	4.41" (112.01 mm)
Weight (Approximate)	9.69 lb (4395.31 g)

Miscellaneous

Package Contents	PDU81009 2 x Short Mounting Brackets 2 x Long Mounting Brackets 12 x M4x8 Screws 6 x M5X12 Screws/Washers 2 x Cord Retention Trays 12 x M3x6 Screws 30 x Cable Ties RJ45/DB9 Serial Cable User's Manual Registration & Download Cards
Additional Information	Physical Dimensions - (WxHxD) (cm) : 43.31 x 8.89 x 11.2 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 3.5 x 4.41 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 89 x 112 (mm) Weight (kg) : 4.4 Weight (lb) : 9.69 Shipping Dimensions - (WxHxD) (cm) : 24.77 x 15.24 x 50.17 (cm) Shipping - Dimensions (WxHxD, in) : 9.75 x 6.0 x 19.75 (in) Shipping - Dimensions (WxHxD, mm) : 247.65 x 152.4 x 501.65 (mm) Shipping - Weight (kg) : 9.3 Shipping - Weight (lb) : 20.5 Cord Length : 12 ft (3.7 m) Derated Input Current : 24 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L6-30P Maximum Input Current : 30A Nominal Input Voltage : 200 - 240 VAC Power Cord Length : 12 ft (4 m) Circuit Quantity : 2 Nominal Output Voltage : 200 - 240 VAC Number of Outlets : 10 Outlets - Total : 10 Outlet Type COMPUTED : 10 - IEC-320 C19 Overload Protection : 20A x 2 USB Charge Port : No Environmental Sensor : Optional, via RJ45 Hardware Connection Port : RJ45 LCD : Multifunction LCD Outlet switching : Yes Protocols : IPv4\|TCP/IP\|UDP\|SNMPv1\|HTTP\|NTP\|DNS\|Telnet\|DHCP\|SMTP\|FTP\|IPv6\|SNMPv3\|HTTPs\|SSH\|SSL\|TLS\|LDAP(S)\|RADIUS\|Syslog\|CLI\|Windows AD Upgradeable firmware : Yes Color : Black Form Factors Supported : 2U Rackmount Material of Construction : Metal Rack Height : 2U Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 131 °F (-15 - 55 °C) Safety : UL 60950-1 Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
Application/Usage	Data Center Network Closet
Certifications & Standards	UL 60950-1
Country of Origin	China
UL Listed	Yes
Condition	No
UPC	0649532613960

Warranty

Limited Warranty	3 Year
