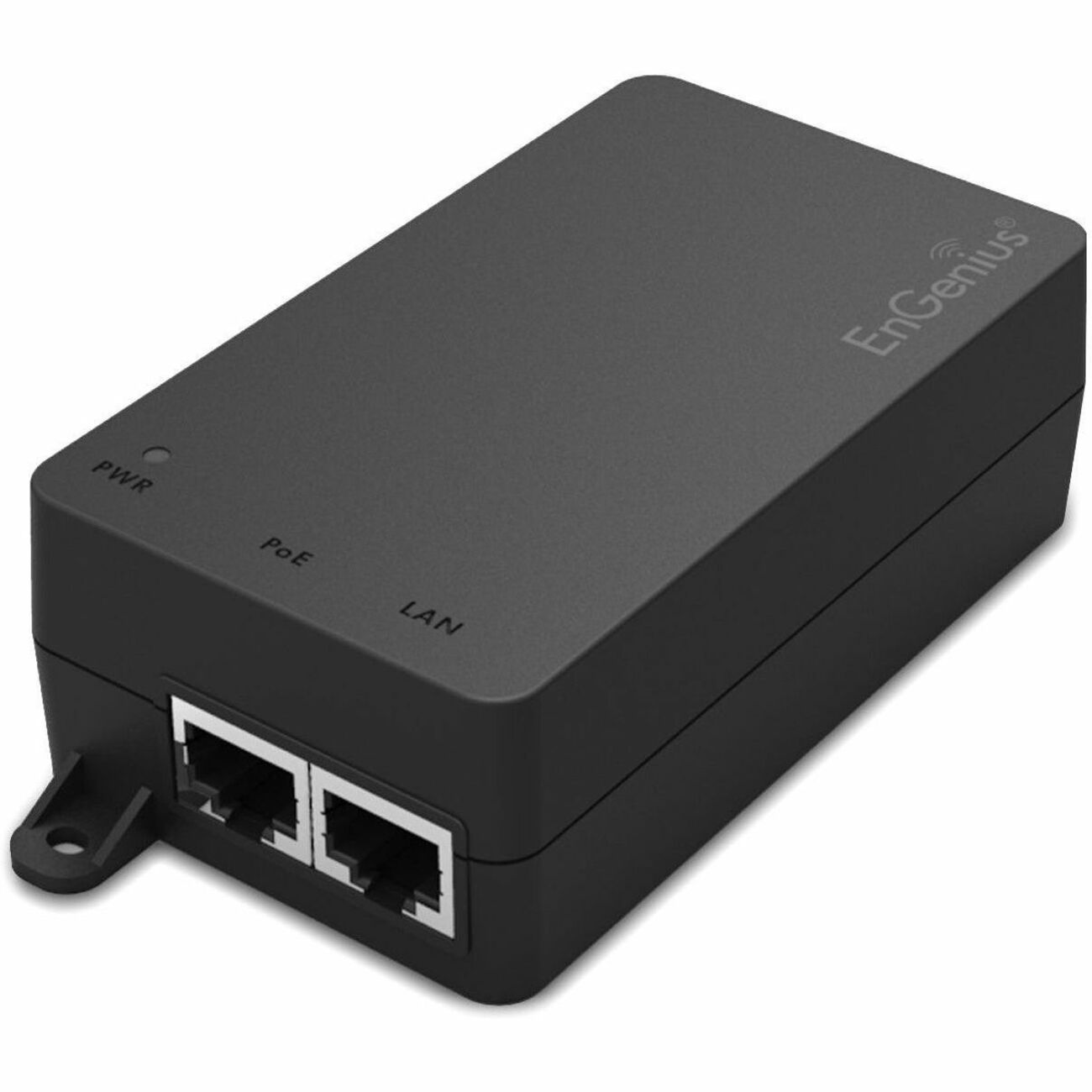

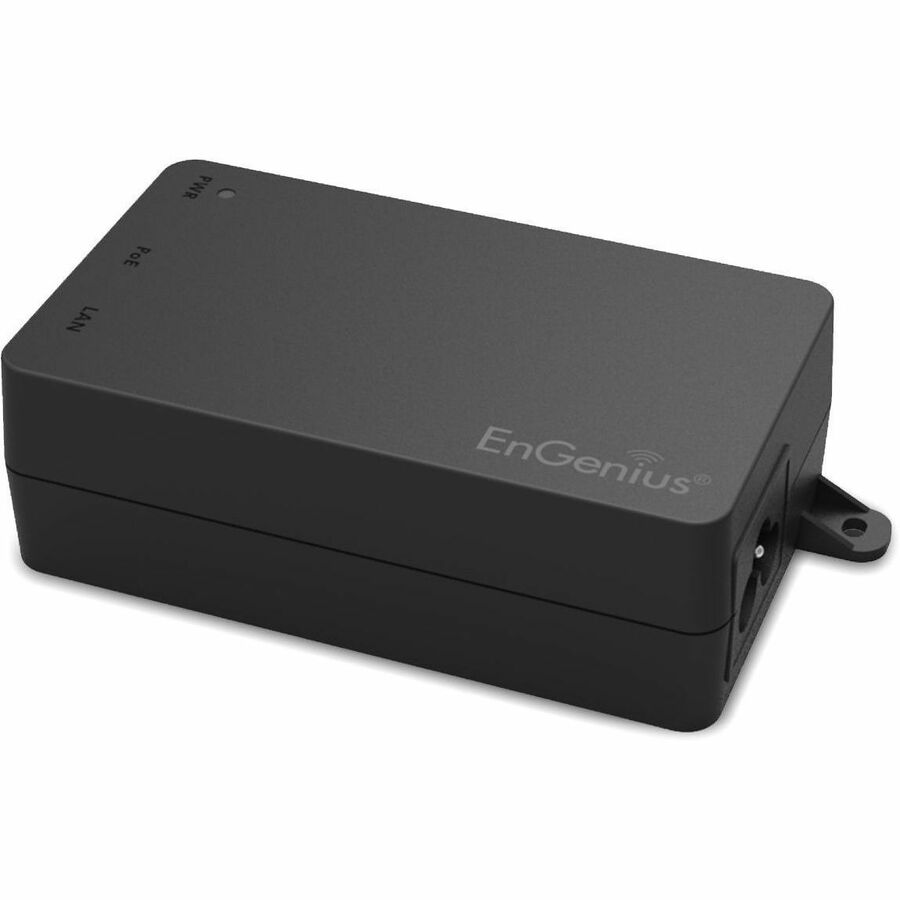

EnGenius Single Port Power-over-Ethernet (PoE) Adapter

Part No. EPA2410GP

by EnGenius Technologies, Inc

EnGenius Single Port Power-over-Ethernet (PoE) Adapter

120 V AC, 230 V AC Input - 1 x Gigabit Ethernet Input Port(s) - 1 x Gigabit PoE Output Port(s) - 24 W

Part No. EPA2410GP

by EnGenius Technologies, Inc

$41.99
General Information
ManufacturerEnGenius Technologies, Inc
Manufacturer Part NumberEPA2410GP
Brand NameEnGenius
Product ModelEPA2410GP
Product NameSingle Port Power-over-Ethernet (PoE) Adapter
Marketing Information

Powered by EnGenius Single Port Power-over-Ethernet (PoE) adapter solution is ideal for installers to deploy PoE devices scalable, and to reduce maintenance cost and labor fee.

The ideal solution could assist installers to solve the limitation in designing networks is the availability of power source. The EnGenius PoE adapter allows delivery of both data and power to compatible Access Points or device over a single Ethernet cable, allowing deployment of them exactly when users needed to provide the best wireless coverage and at much lower installation cost.

Besides built-in networking facility, EPA series is also equipped with short-circuit and overload protection to assure the securable and reliable connection for Access Points or other PoE devices. By sending direct current (DC) output, Ethernet terminals which need more power such as wireless LAN high power device, IP media center, and web camera are powered remotely.

Product TypePoE Injector
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Minimum Input Current700 mA
Maximum Input Current350 mA
Maximum Output Power24 W
Interfaces/Ports
Input Ports1 x Gigabit Ethernet
Output Ports1 x Gigabit PoE
Physical Characteristics
Height1.30" (33.02 mm)
Width2.27" (57.66 mm)
Depth3.90" (99.06 mm)
Weight (Approximate)144 g
Miscellaneous
Compatibility

EnGenius ENS620EXT Wireless Access Point

Certifications & Standards
  • CB: IEC 62328-1: 2014
  • UL 60950-1 2nd
  • FCC Subpart15 B
  • CE: EN 55032:2012/AC:2013, EN 55024: 2010
  • RCM: AS/NZS60950.1: 2011/Amdt 1: 2012
ConditionNo
UPC0655216008236
Warranty
Limited Warranty1 Year
