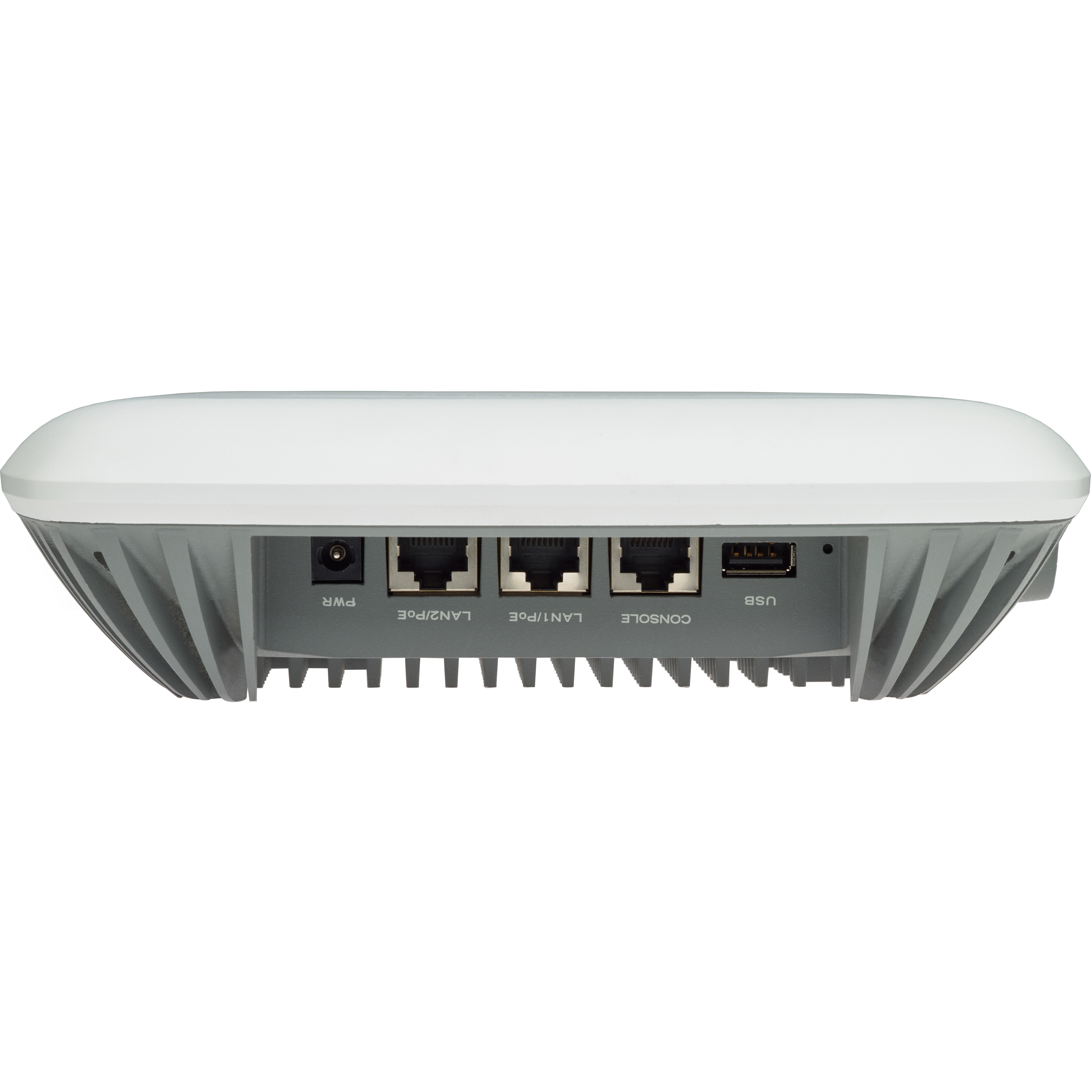

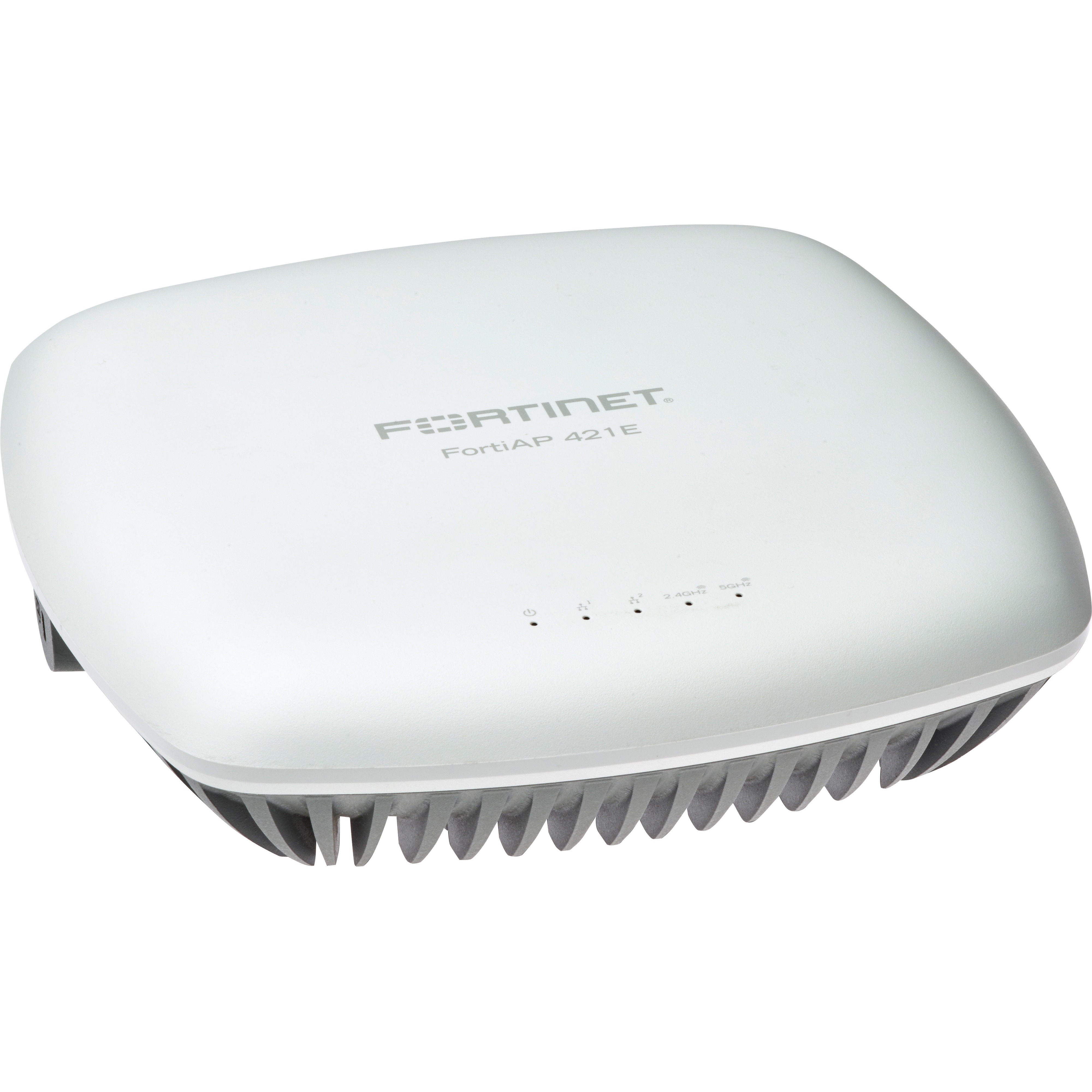

Fortinet FortiAP 421E IEEE 802.11ac 1.30 Gbit/s Wireless Access Point

Part No. FAP-421E-D

by Fortinet, Inc

This Product is currently not in offering

Fortinet FortiAP 421E IEEE 802.11ac 1.30 Gbit/s Wireless Access Point

Part No. FAP-421E-D

by Fortinet, Inc

This Product is currently not in offering

General Information
ManufacturerFortinet, Inc
Manufacturer Part NumberFAP-421E-D
Brand NameFortinet
Product LineFortiAP
Product Model421E
Product NameFortiAP 421E Wireless Access Point
Marketing Information

Thin Wireless LAN Access Points

FortiAPs are thin access points, delivering secure, identity-driven WiFi access for your enterprise network, managed centrally by the integrated WLAN controller of any FortiGate® security appliance. They can also be managed by FortiCloud. With the integration of the wireless controller functionality into the market leading FortiGate appliance, Fortinet delivers a true Unified Access Layer. This enables you to easily manage wired and wireless security from a Single Pane of Glass management console and protects your network from the latest security threats.

High Performance 802.11ac Wave 2

The FortiAP 421E and 423E access points support the latest 802.11ac Wave 2 standard, with a client association rate of up to 1.733 Gbps when using 80 Mhz channels. Additional features include 802.11ac explicit transmit beamforming (TxBF), multi-user MIMO (MU-MIMO), and more. The combination of the 802.11ac Wave 2 standard and these advanced features means better client data rates over greater distances, and ultimately a better user experience.

Product TypeWireless Access Point
Technical Information
Wireless LAN StandardIEEE 802.11ac
Frequency Band
  • 2.40 GHz
  • 5 GHz
Total Number of Antennas8
Number of Internal Antennas8
Wireless Transmission Speed1.30 Gbit/s
MIMO TechnologyYes
Beamforming TechnologyYes
Interfaces/Ports
Ethernet TechnologyGigabit Ethernet
Number of Network (RJ-45) Ports2
PoE (RJ-45) PortNo
PoE PD PortYes
VGANo
HDMINo
USBYes
PowerlineNo
Management PortYes
Physical Characteristics
Form Factor
  • Ceiling Mountable
  • Wall Mountable
  • Rail-mountable
Height2.20" (55.88 mm)
Width8.50" (215.90 mm)
Depth8.50" (215.90 mm)
Weight (Approximate)3.53 lb (1601.181066 g)
Miscellaneous
Package Contents
  • FortiAP 421E Wireless Access Point
  • Ceiling, T-Rail and Wall Mount Kit
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Warranty
Limited WarrantyLifetime
