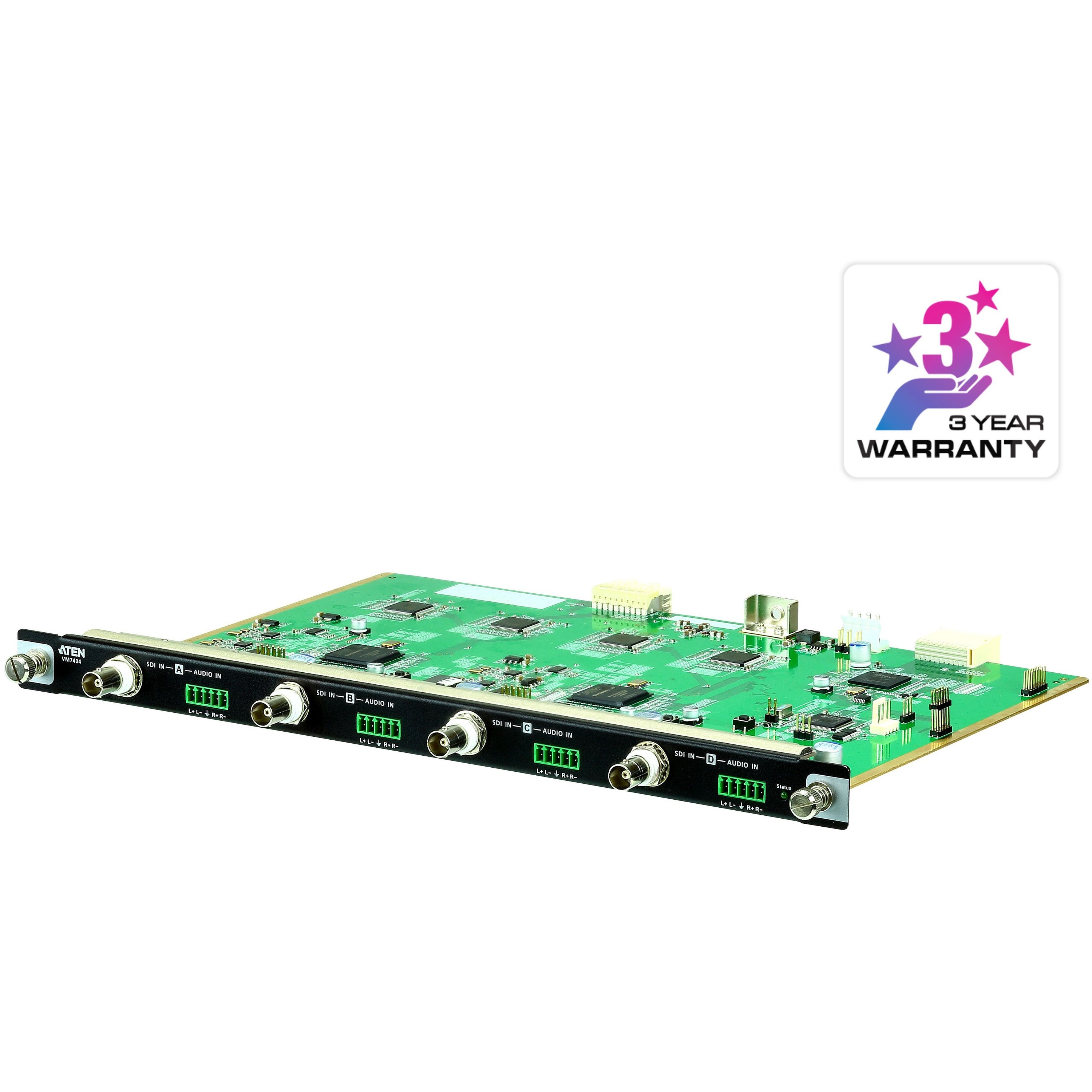

The VM7404 4-Port 3G-SDI Input Board offers an easy way to route any 4 SDI video and audio sources to multiple displays when used in combination with an ATENModular Matrix Switch. This input board provides the capability to connect to SDI sources, including 3G-SDI, HD-SDI and SD-SDI, and supports high quality video resolutions up to 1080p @ 60 Hz. The VM7404 also supports separate analog stereo audio signals that can be routed independently. Furthermore, the board is based on a hot-swappable design, allowing the ATEN Modular Matrix Switch to remain on while the board is changed. Ideal for surveillance systems and numerous other broadcast-grade A/V applications, the VM7404 allows you to effectively centralize routing for all your 3G / HD / SD-SDI devices.

• 4-Port 3G-SDI Input Board
• 4 x Terminal Block Connectors
• 1 x User Instructions

Video:

• Supported Resolutions PAL /50 PAL and NTSC/59.94
• 720p 25, 29.97, 30,50,59.94, 60
• 1080i50, 59.94, 60
• 1080PsF 25, 29.97,30
• 1080p 23.98, 24, 25, 29.97, 30,50,59.94, 60
• Max. Data Rate 2.97 Gpbs
• Max. Distance 100m (3G-SDI); 150m (HD-SDI); 300m (SD-SDI)
• SDI Formats 3G-SDI, SMPTE-259,292,424, 425 Level A & B-DL

Audio Inputs:

• Interfaces 4 x Captive Screw Connectors, 5 pole
• Audio signal type: stereo, balanced/unbalanced.
• Power Consumption 16W:75BTU

Environmental:

• Operating Temperature 0-40°C
• Storage Temperature -20-60°C
• Humidity 0 - 80% RH, Non-Condensing
• Physical PropertiesBalanced audio maximum input/output level: 0.5 Vrms (-6.02dBV@600 ohm )
• Unbalanced audio maximum input/output level: 1Vrms (0dBV@600ohm.)

Video Input:

• Interfaces 4 x BNC Female
• Impedance 75 ?
