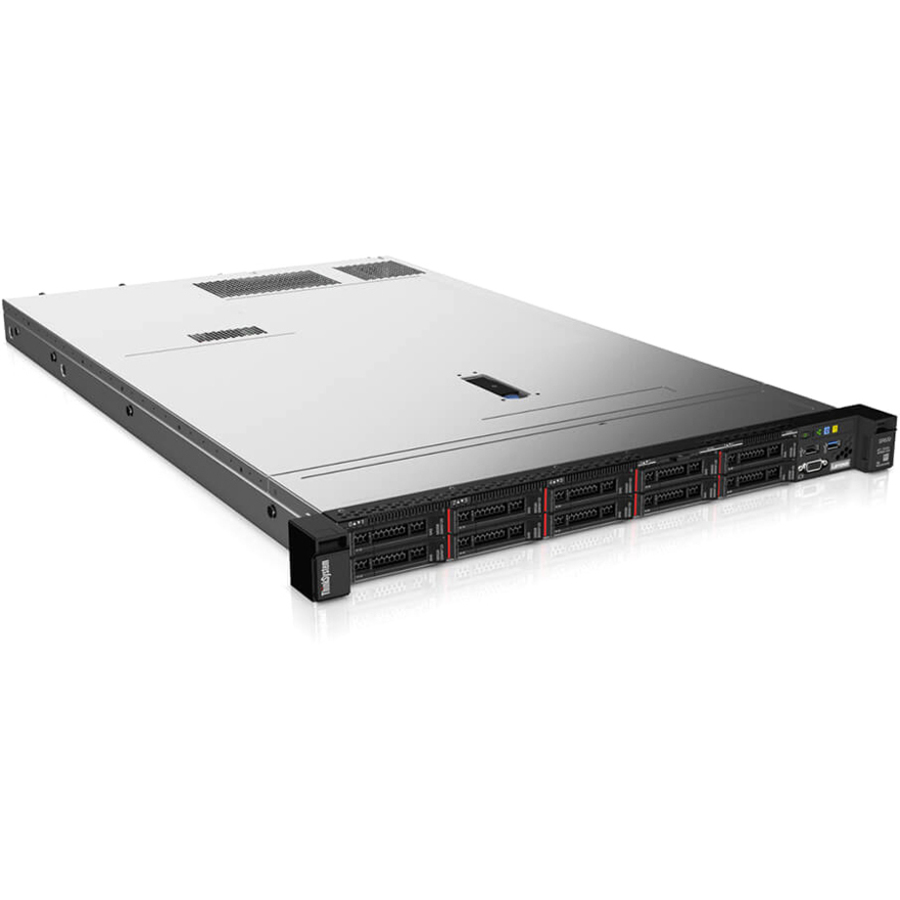

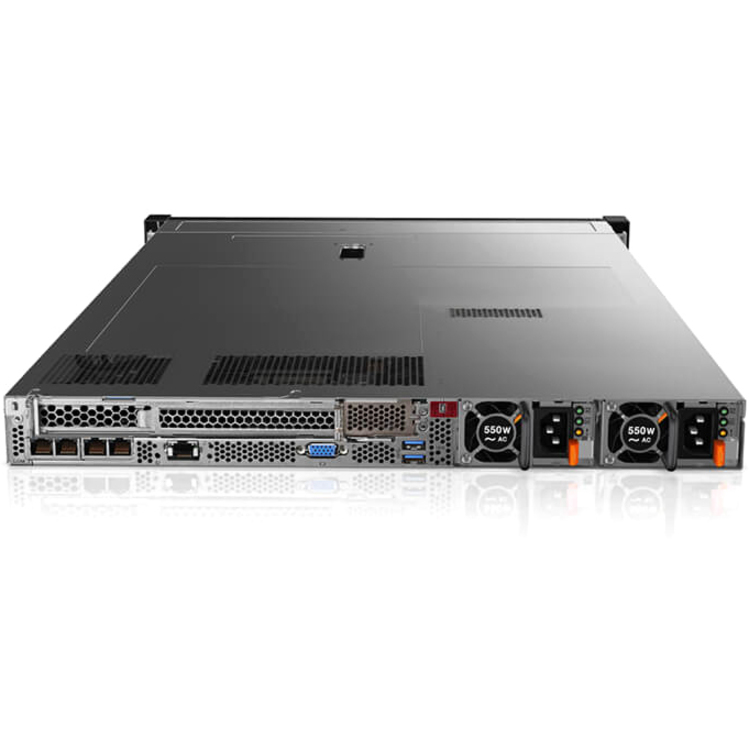

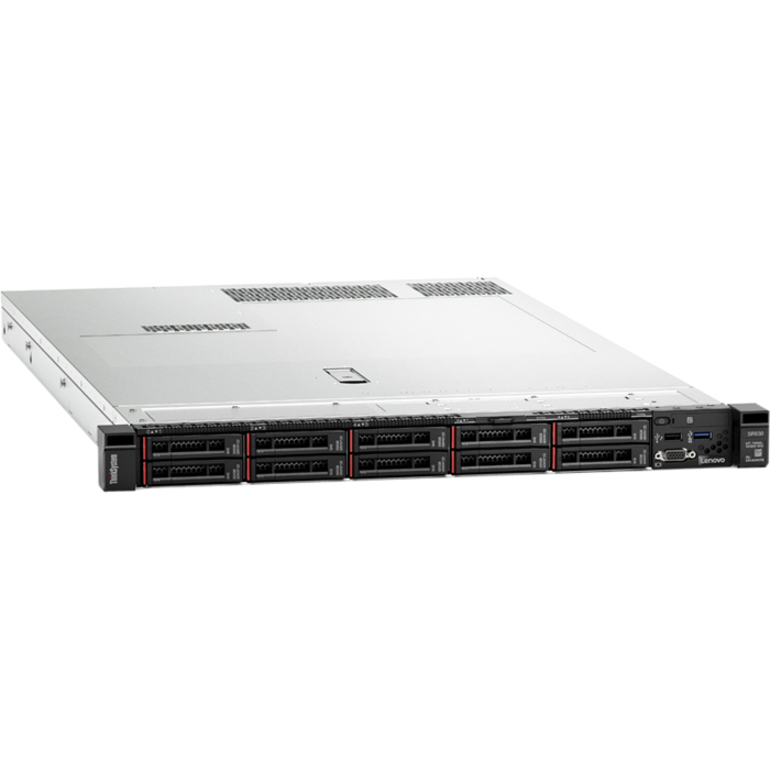

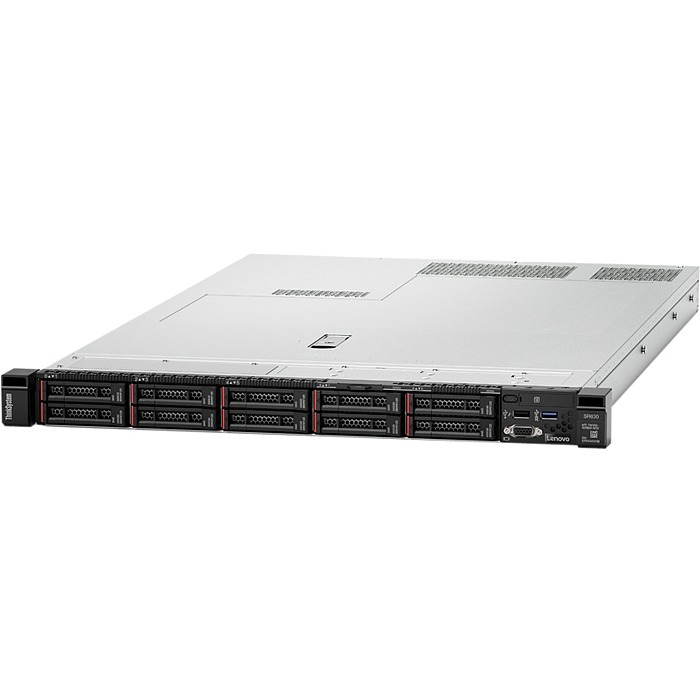

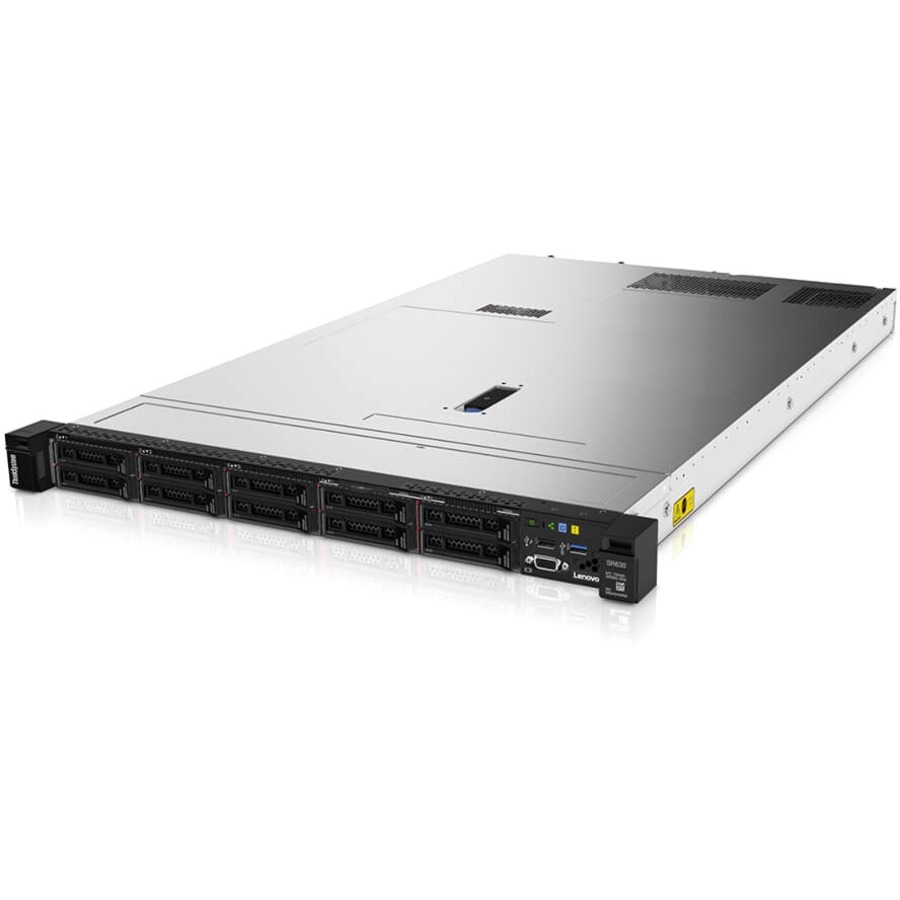

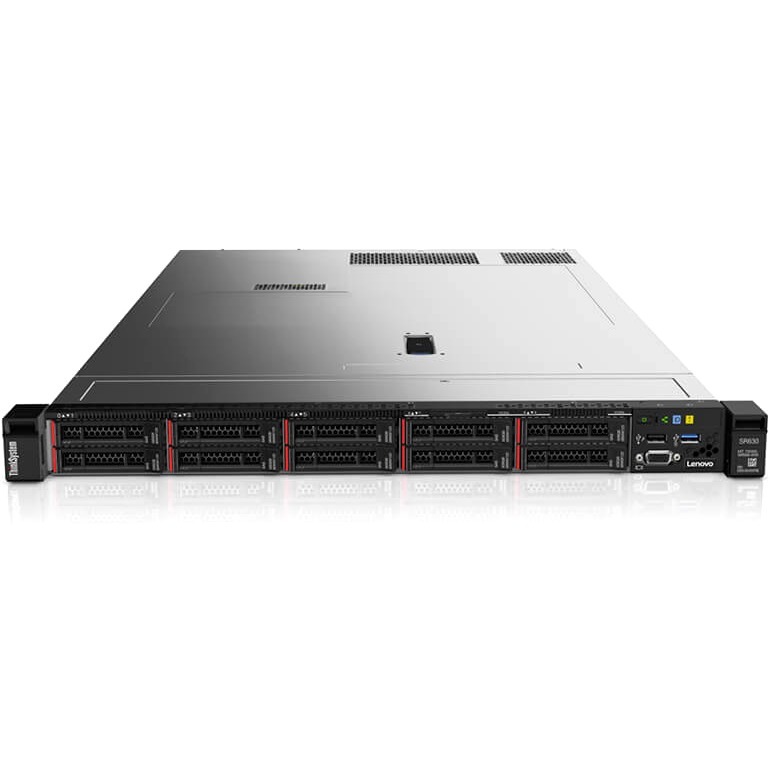

Lenovo ThinkSystem SR630 7X02A01MNA 1U Rack Server - 1 Xeon Gold 5118 2.30 GHz - 16 GB RAM - 12Gb/s SAS, Serial ATA/600 Controller
This Product is currently not in offering
On back-order, will ship once in-stock
Manufacturer | Lenovo Group Limited |
Manufacturer Part Number | 7X02A01MNA |
Brand Name | Lenovo |
Product Line | ThinkSystem |
Product Series | SR630 |
Product Model | 7X02A01MNA |
Product Name | ThinkSystem SR630 7X02A01MNA Server |
Marketing Information | Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC. |
Product Type | Server |
Number of Processors Supported | 2 |
Number of Processors Installed | 1 |
Processor Type | Xeon Gold |
Processor Model | 5118 |
Processor Core | Dodeca-core (12 Core) |
Processor Speed | 2.30 GHz |
Standard Memory | 16 GB |
Memory Technology | TruDDR4 |
Total Number of Memory Slots | 24 |
Number of Occupied Memory Slots | 1 |
Total Hard Drive Capacity | No |
Controller Type |
|
RAID Supported | Yes |
RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
Number of Total Expansion Bays | 8 |
Number of Internal 2.5" Bays | 8 |
Hot Swappable Bays | Yes |
Graphics Controller Model | G200 |
Graphics Memory Capacity | 16 MB |
Ethernet Technology | Gigabit Ethernet |
Operating System | No |
Input Voltage |
|
Number of Power Supplies Supported | 2 |
Number of Power Supplies Installed | 1 |
Maximum Power Supply Wattage | 750 W |
Package Contents |
|
Energy Star | Yes |
Environmentally Friendly | Yes |
Energy Efficiency Certification | ENERGY STAR 2.1 |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Form Factor | Rack |
Rack Height | 1U |
Height | 1.70" (43.18 mm) |
Width | 17.10" (434.34 mm) |
Depth | 28.10" (713.74 mm) |
Weight (Approximate) | 41.45 lb (18800 g) |
Limited Warranty | 3 Year |
