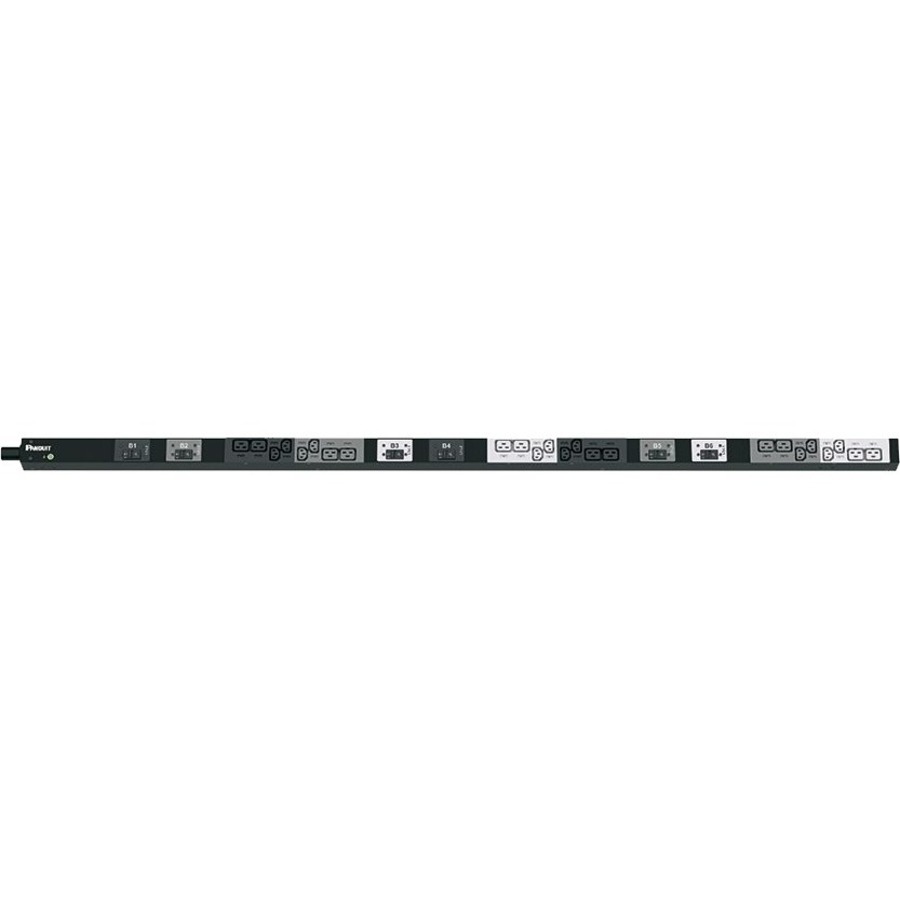

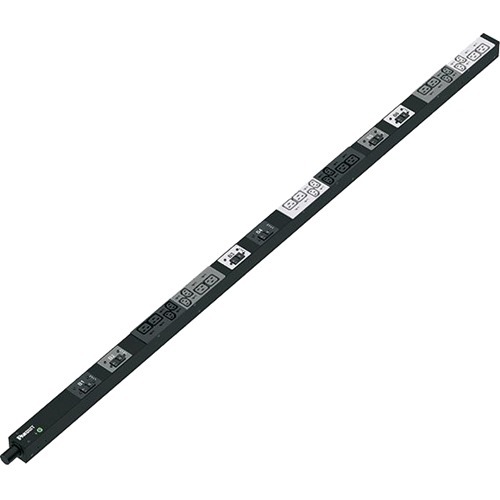

Panduit P24B14M Vertical Basic Power Distribution Unit
Basic - IEC 60309 460P9 - 12 x IEC 60320 C13, 12 x IEC 60320 C19 - 230 V AC - 0U - Vertical - Rack-mountable
$1942.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P24B14M |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | P24B14M |
| Product Name | P24B14M Vertical Basic Power Distribution Unit |
| Marketing Information | Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13, C19, or NEMA compliant). These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware. |
| Packaged Quantity | 1 |
| Product Type | PDU |
Technical Information
| PDU Type | Basic |
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 460P9 |
| Receptacle Type |
|
| Receptacle Detail |
|
| Protection Type | Double Pole |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Output Voltage Range | 120 V AC - 240 V AC |
| Power Rating (VA) | 17.30 kVA |
| Input Current | 60 A |
Management
| Remote Outlet Switching | No |
Physical Characteristics
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 68.90" (1750.06 mm) |
| Width | 2" (50.80 mm) |
| Depth | 2.10" (53.34 mm) |
Miscellaneous
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 0007498334877 |
Warranty
| Limited Warranty | 3 Year |
