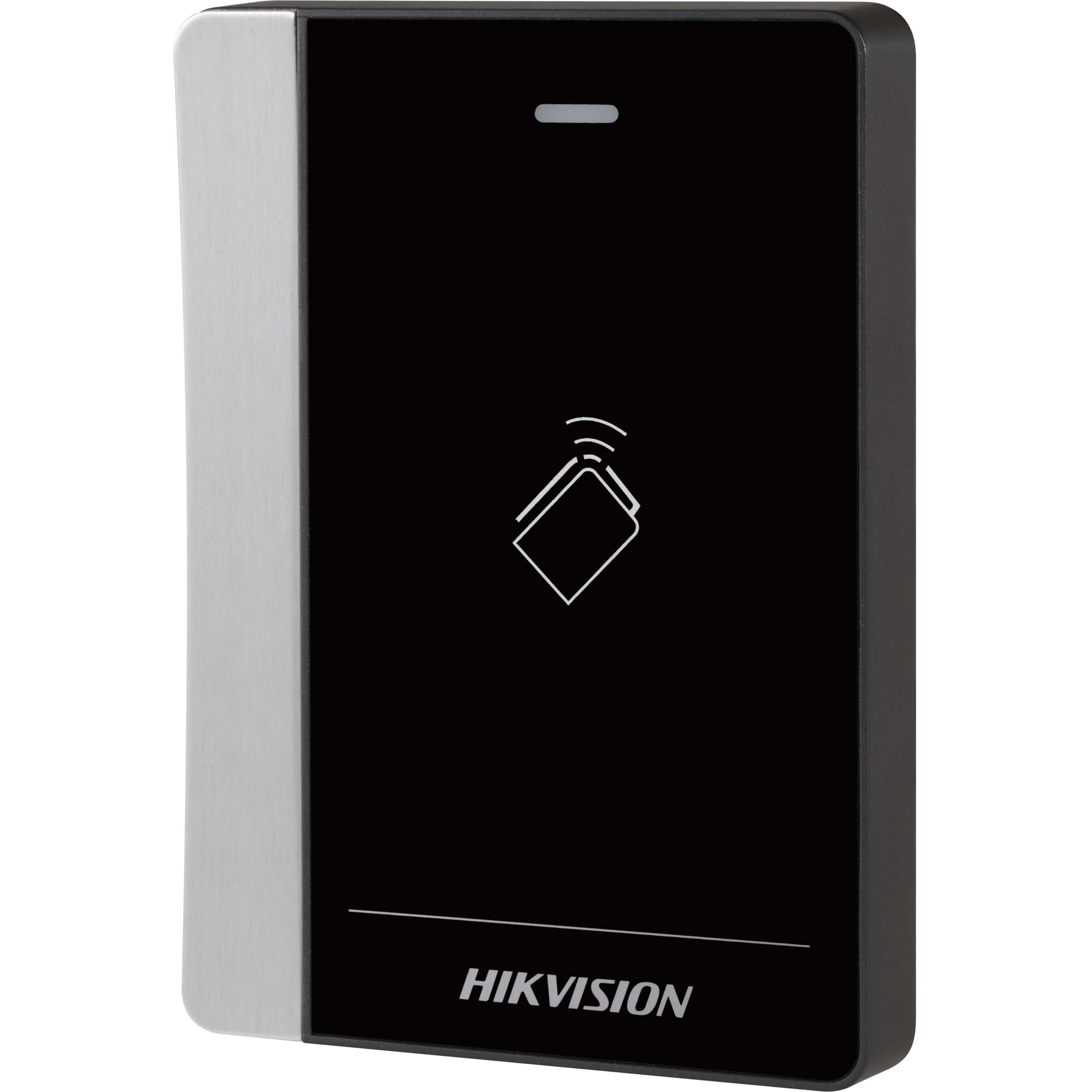

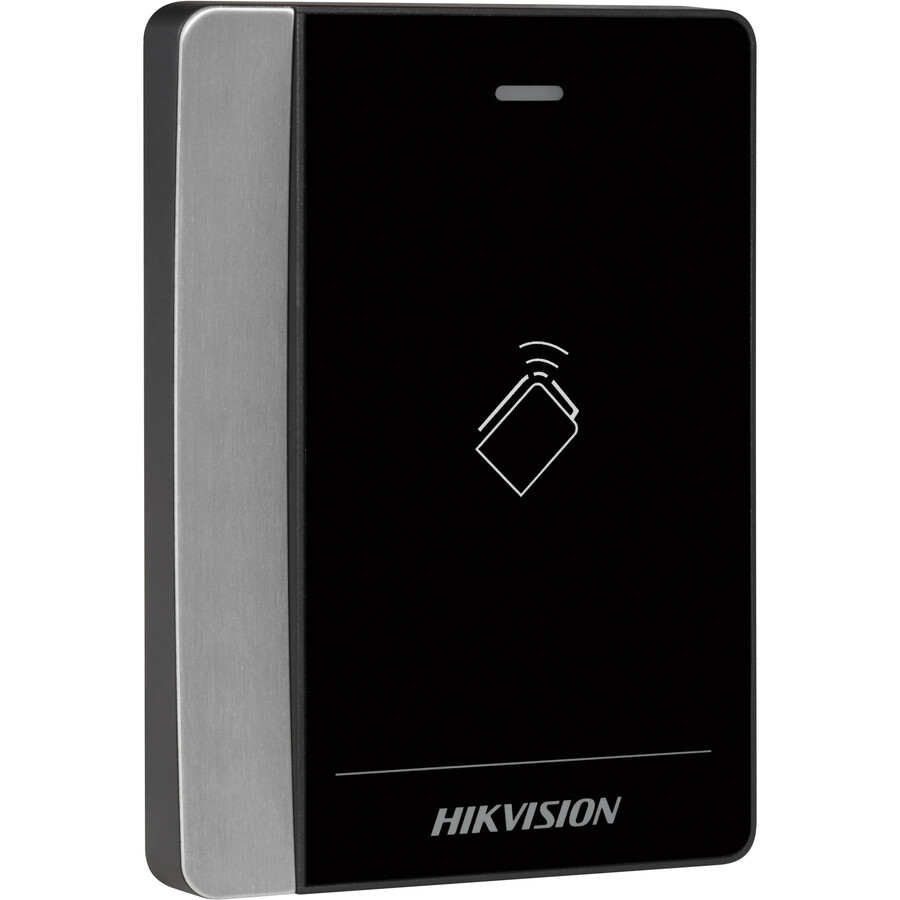

Hikvision DS-K1102M Card Reader Access Device

Part No. DS-K1102M

$67.99

Hikvision DS-K1102M Card Reader Access Device

Proximity - 1.97" (50.04 mm) Operating Range - Serial - Wiegand - 12 V DC

Part No. DS-K1102M

$67.99

Specifications

General Information

Manufacturer	Hikvision
Manufacturer Part Number	DS-K1102M
Brand Name	Hikvision
Product Series	DS-K1102
Product Model	DS-K1102M
Product Name	DS-K1102M Card Reader Access Device
Marketing Information	LED Reader Status Indicator Tamper-Resistant Alarm Supports EM/Mifare Cards (Options) Keypad (Option) RS-485 and Wiegand (W26/W34) Protocols Hikvision's DS-K1102 Series card readers with dip switch are dust-proof and water-resistant. They support RS-485 and Wiegand (W26/W34) protocols. The built-in 125 KHz EM card reading module (DS-K1102E/DS-K1102EK) reads EM card numbers. The built-in 13.56 MHz Mifare card reading module (DS-K1102M/DS-K1102MK) reads Mifare card numbers. The DS-K1102 Series meets the ISO 14443-A standard.
Product Type	Card Reader Access Device

Technical Information

Identification Method	Proximity
Operating Range	1.97" (50.04 mm)

Interfaces/Ports

Serial	Yes
Wiegand	Yes

Power Description

Input Voltage	12 V DC

Physical Characteristics

Height	0.55" (13.97 mm)
Width	3.41" (86.61 mm)
Depth	4.76" (120.90 mm)
Weight (Approximate)	141.7 g
