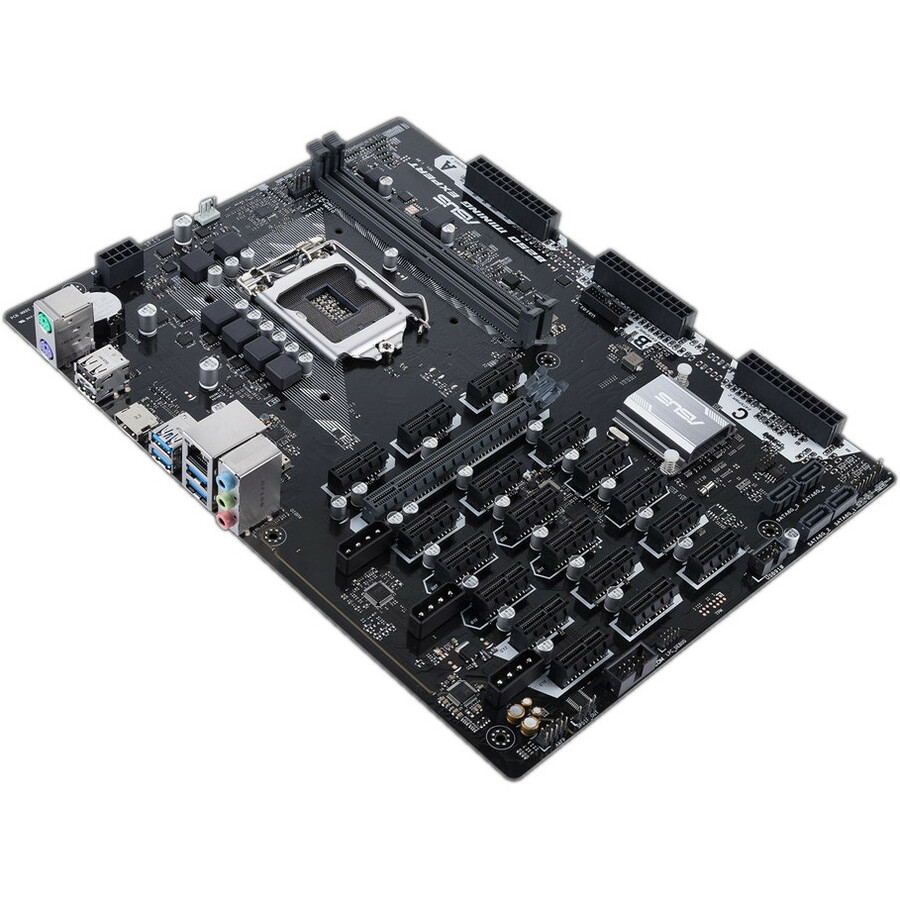

ASUS B250 MINING EXPERT LGA1151 DDR4 HDMI B250 ATX Motherboard for Cryptocurrency Mining with 19 PCIe Slots and USB 3.1 Gen1

• Maximize your mining connectivity and speed with 19x PCIe Slots, up to 32GB DDR4 2400 RAM, USB 3.1 Gen1 and Intel® Gigabit LAN
• Triple-ATX12V Power Delivery separates 19x PCIe slots into 3 groups, each with a dedicated 24-pin for reliable power performance
• 5X Protection III Hardware-level safeguards with SafeSlot Core, LANGuard and Overvoltage Protection provide component longevity and reliability
• PCIe Slot State Detection provides a real time indication of the status of each GPU in your rig
• Voltage-stabilization Capacitors provides steady voltage from your power supply units to your GPUs

DESIGNED FOR CRYPTO MINING

World's First 19-Slot Mining Motherboard

Max out your megahash rates!

ASUS B250 Mining Expert is the world's first mining motherboard to feature 19 PCI Express^® (PCIe^®) slots. With 18 PCIe x1 and one PCIe x16 slots on board, plus three zoned ATX12V power connectors, B250 Mining Expert lets you run up to 19 NVIDIA or AMD GPUs in parallel to max out your megahash rates!

Triple-ATX12V Power Delivery

Engineered to deliver the power your graphics cards need

B250 Mining Expert has been engineered to provide all the power your GPUs demand, cleanly and efficiently. The 19 PCIe slots are grouped into three distinct zones, each powered by its own, dedicated 24-pin ATX12V power connector - reducing wiring complexity and ensuring ample power delivery to all PCIe slots.

Voltage-Stabilization Capacitors

Stable, low-noise power for your GPUs

Stable, low-noise power is a serious benefit for 24/7 cryptocurrency mining. That's why we've engineered B250 Mining Expert with 19 decoupling capacitors. These quality components smooth voltages and reduce high-frequency noise, so your GPUs get the good-quality power delivery needed for reliable operation.

PCIe Slot State Detection

Easy management and debugging

B250 Mining Expert has built-in smarts to show the status of each and every graphics card from the moment you power up. The moment the Power-On, Self-Test (POST) screen appears, you'll see a graphical representation of the status of every slot - so you'll know instantly if there's a problem or whether your mining operation is good to go.

Mining Mode BIOS Optimization

Simple setup

Unlike some rival boards, B250 Mining Expert has a special Mining Mode that's enabled by default, removing the hassle of having to make BIOS-level changes that are necessary to maximize mining performance. Mining Mode sets the PCI Express speed to PCIe 1.0 and disables the Compatibility Support Module, so you get the best stability and compatibility right out of the gate.

Best Network Performance

Intel Gigabit LAN and ASUS LANGuard

B250 Mining Expert is equipped with Intel Gigabit Ethernet for the best throughput and lower CPU overhead, ensuring optimum performance from your mining rig.

ASUS-exclusive LANGuard employs advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput - protecting the B250 Mining Expert from lightning strikes and static electricity.

• Core i7
• Core i3
• Core i5
• Pentium
• Celeron

• UDIMM
• DIMM

• 2400 MHz
• 2133 MHz

• B250 MINING EXPERT Desktop Motherboard
• User's Manual
• I/O Shield
• 2 x SATA 6Gb/s Cable(s)
• 1 x Supporting DVD
