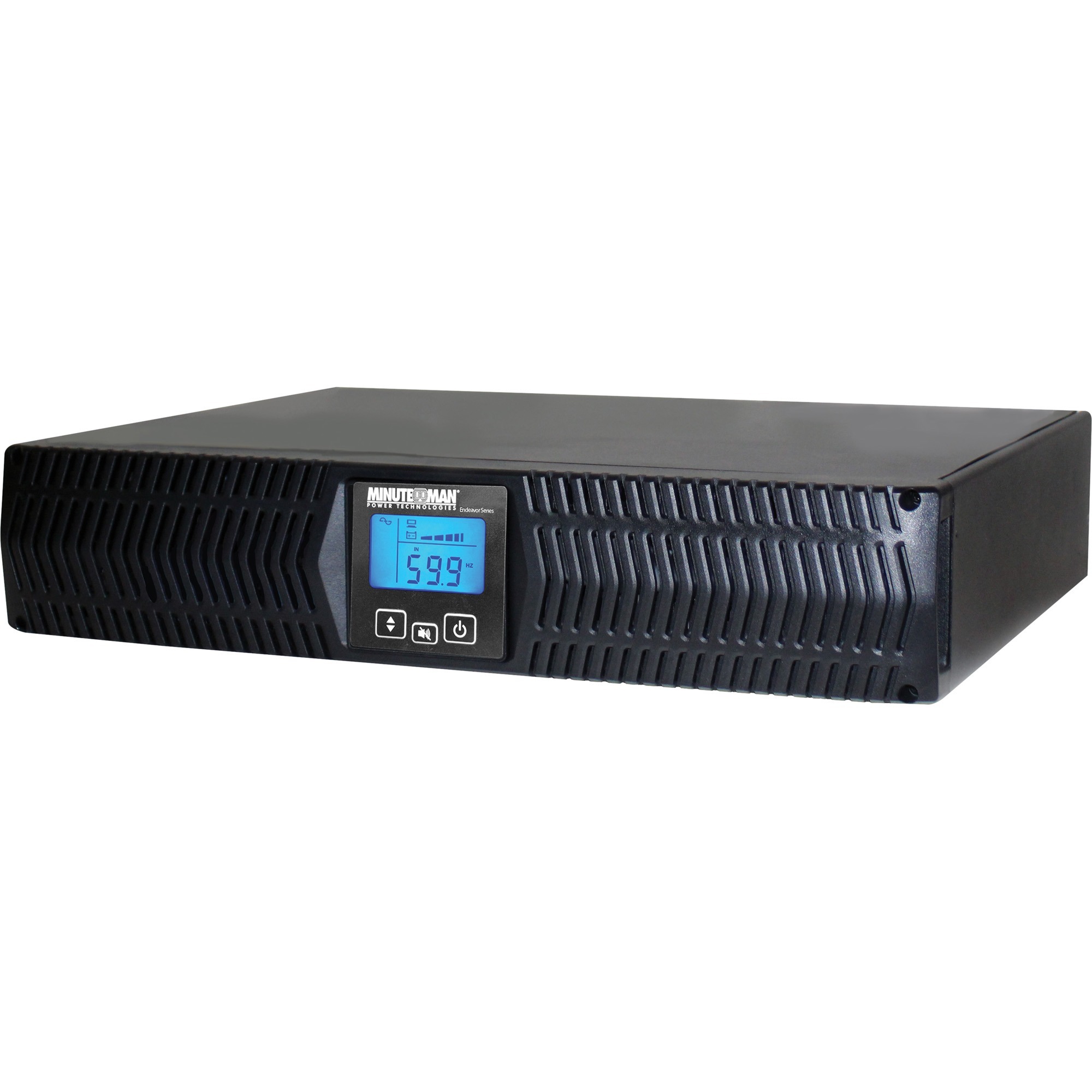

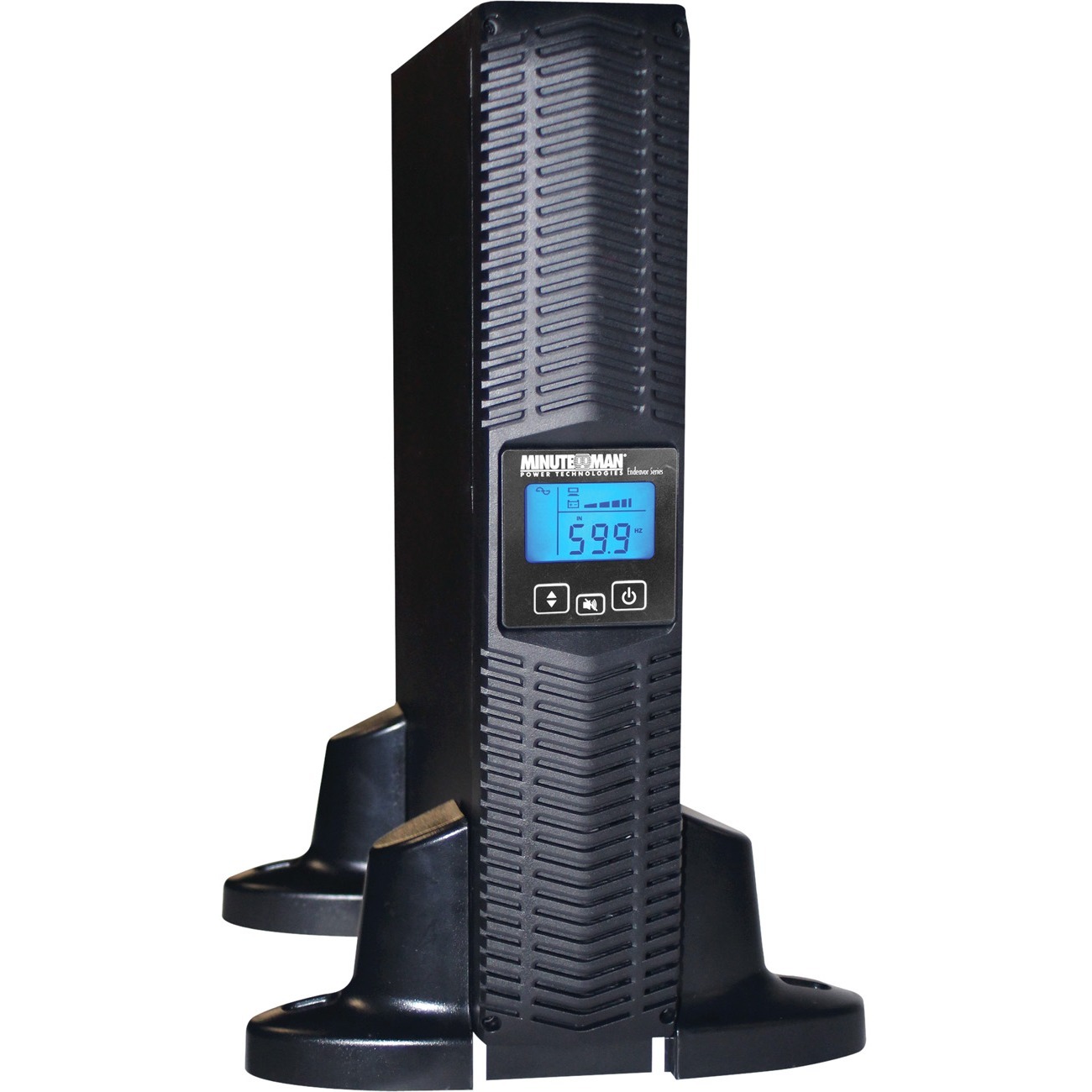

Minuteman Endeavor ED3000RTXL2U 3000VA Tower/Rack/Wall Mountable UPS

Part No. ED3000RTXL2U

by Para Systems, Inc

Minuteman Endeavor ED3000RTXL2U 3000VA Tower/Rack/Wall Mountable UPS

2U Tower/Rack/Wall Mountable - 3.50 Minute Stand-by - 120 V AC Input - 120 V AC Output - 1 x NEMA L5-30R, 7 x NEMA 5-15/20R Receptacle(s)

Part No. ED3000RTXL2U

by Para Systems, Inc

$3259.99
General Information
ManufacturerPara Systems, Inc
Manufacturer Part NumberED3000RTXL2U
Brand NameMinuteman
Product LineEndeavor
Product ModelED3000RTXL2U
Product NameEndeavor ED3000RTXL2U 3000VA Tower/Rack/Wall Mountable UPS
Marketing Information

Endeavor® LCD On-line Uninterruptible Power Supply
In today's 24/7, "always on" business world, downtime is a not an option. Minuteman's Endeavor LCD Series products are engineered to provide the best features that demanding users require for supporting critical applications, while also offering unmatched reliability in a true on-line UPS. This premium-level product provides a sinewave output and is backed with the industry's first comprehensive 5-year warranty, including parts, labor and batteries.

The Endeavor LCD Series delivers continuous power conditioning through Minuteman's double conversion on-line technology, providing emergency backup power with zero transfer time. For extended runtime applications, these products allow the connection of optional external battery packs for long backup times required in certain applications, along with being generator friendly.

The Endeavor LCD Series is designed to protect servers, data storage, switches, and routers used in data centers or network closets, DAS and small cell systems, light industrial applications, telecom and VOIP systems, plus security systems.

Offering premium protection that meets critical application needs, users can confidently rely on Minuteman's Endeavor LCD Series to provide complete power protection when reliability really matters.

Product TypeDouble Conversion Online UPS
Technical Information
Plug/Connector TypeNEMA L5-30P
Receptacle Type
  • NEMA L5-30R
  • NEMA 5-15/20R
Receptacle Detail
  • 1 x NEMA L5-30R
  • 7 x NEMA 5-15/20R
Application/Usage
  • Network
  • Network Closet
  • Security System
  • VoIP Phone System
  • Distributed Antenna System (DAS)
Power Description
Load Capacity (VA)3 kVA
Load Capacity (Watt)2.70 kW
Input Voltage120 V AC
Input Voltage Range0 V AC - 160 V AC
Output Voltage120 V AC
Waveform TypeSine Wave
Interfaces/Ports
Network (RJ-45)Yes
Battery Information
Backup/Run Time (Full Load)3.50 Minute
Hot SwappableYes
Physical Characteristics
Height3.50" (88.90 mm)
Width19" (482.60 mm)
Rack Height2U
Form FactorTower/Rack/Wall Mountable
Weight (Approximate)70.50 lb (31978.26 g)
Miscellaneous
Package Contents
  • Endeavor ED3000RTXL2U 3000VA Tower/Rack/Wall Mountable UPS
  • Batteries
Certifications & Standards
  • cTUVus
  • TÜV Rheinland
  • Energy StarYes
    Country of OriginChina
    Environmentally FriendlyYes
    Environmental ComplianceRestriction of Hazardous Substances (RoHS) 2
    ConditionNo
    UPC784755160041
    Warranty
    Limited Warranty5 Year
