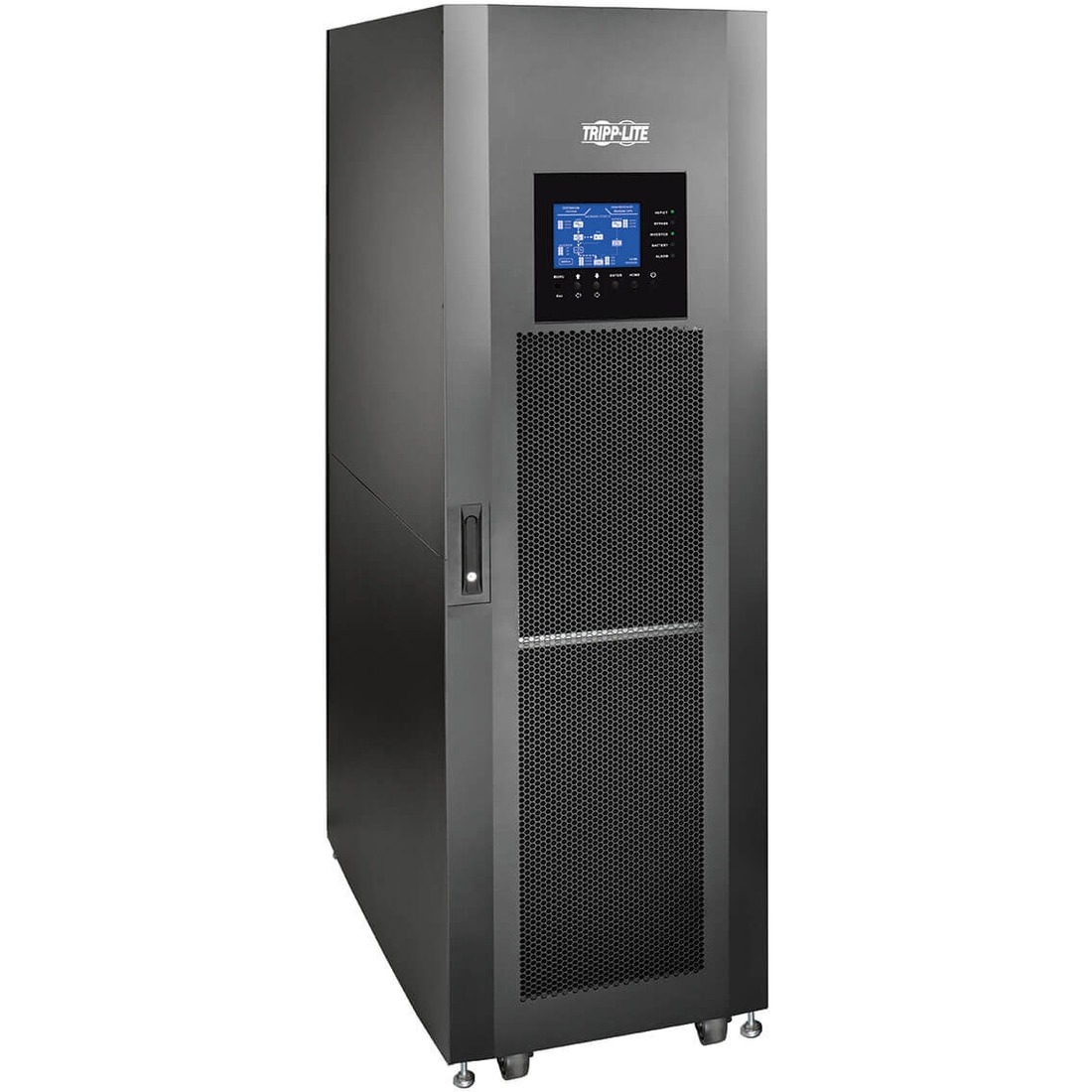

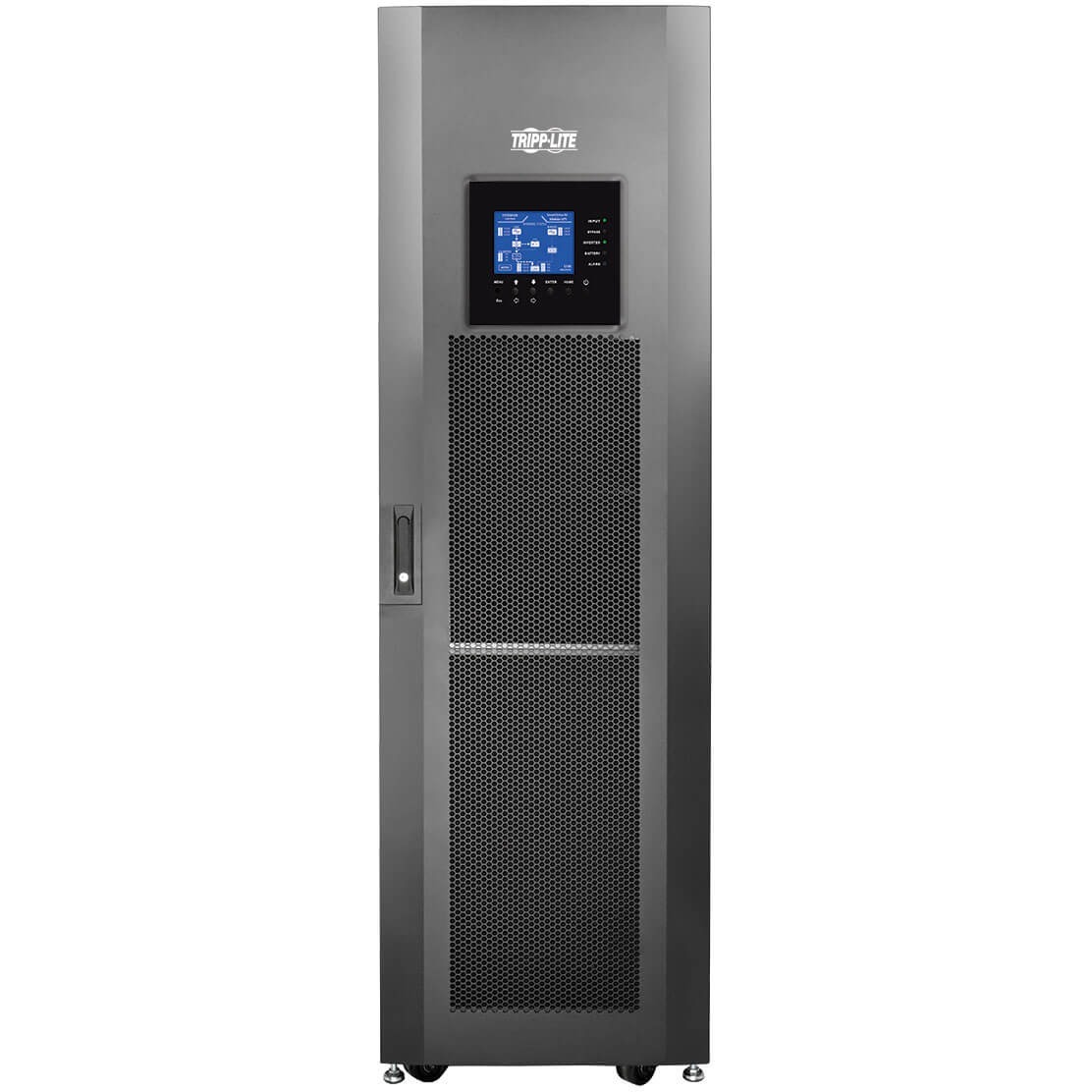

Tripp Lite by Eaton SmartOnline SV60KM3P3B 60kVA Tower UPS
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SV60KM3P3B |
| Brand Name | Tripp Lite by Eaton |
| Product Line | SmartOnline |
| Product Series | SV |
| Product Model | SV60KM3P3B |
| Product Name | SmartOnline SV60KM3P3B 60kVA Tower UPS |

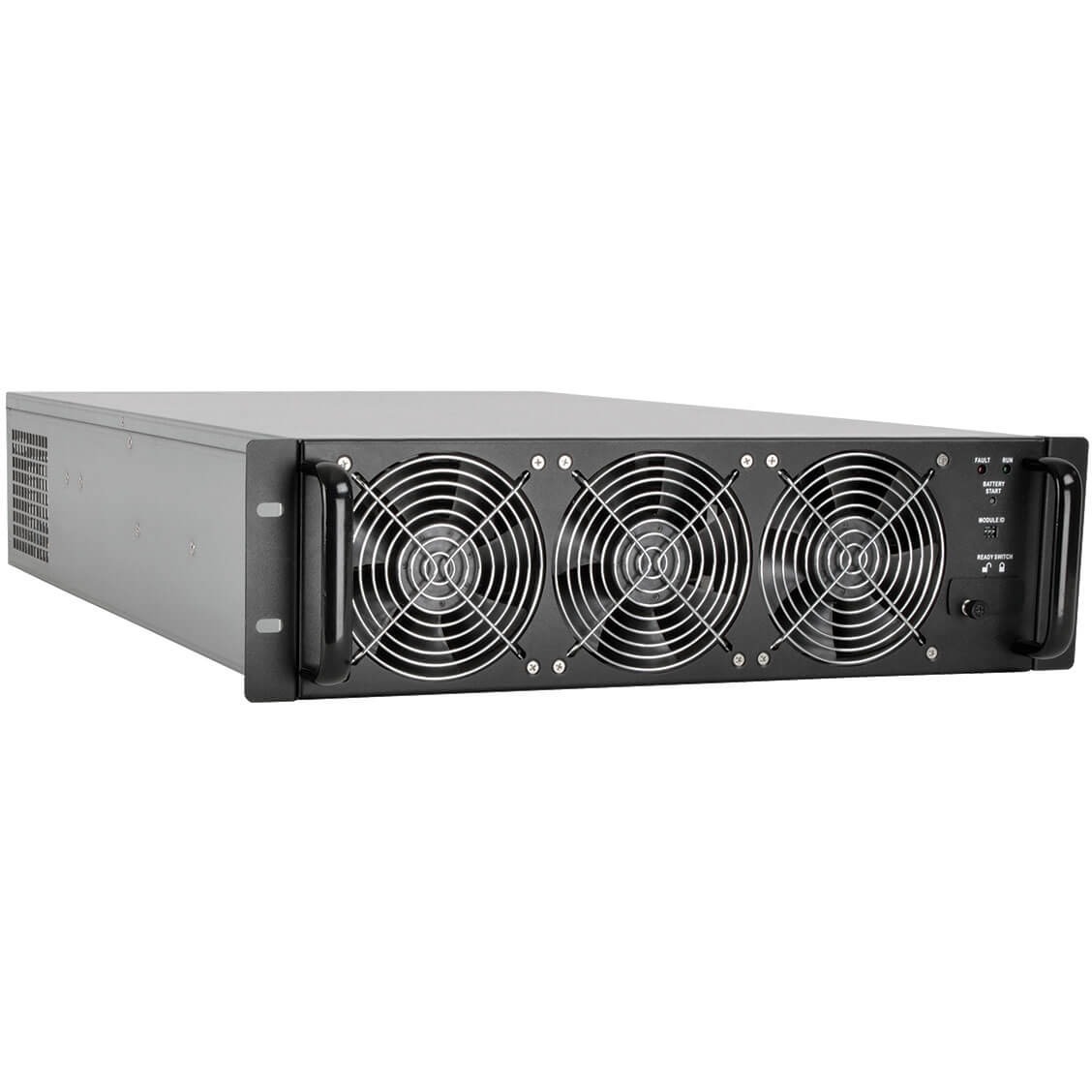

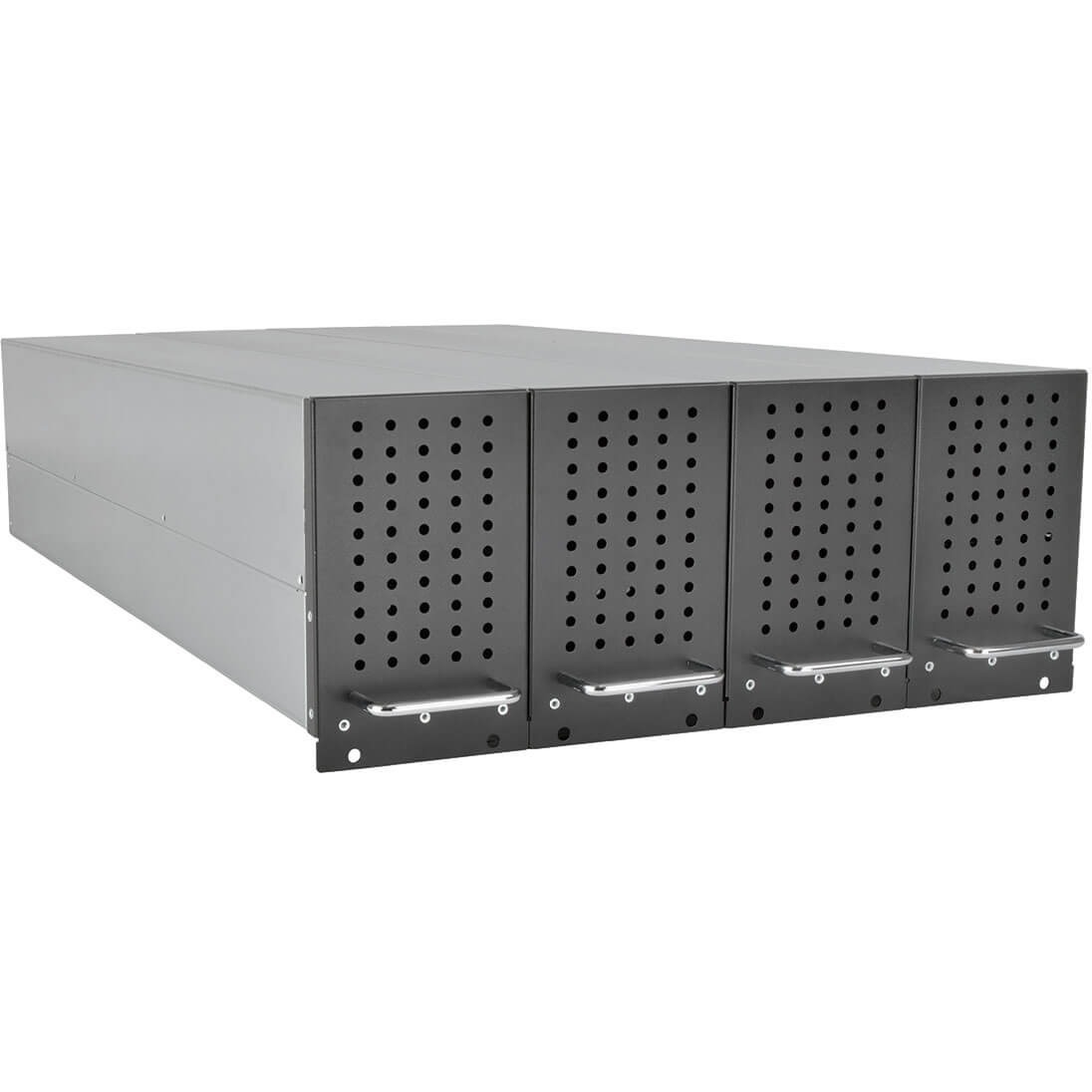

| Marketing Information | The SV60KM3P3B SmartOnline® SV Series 60kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems. The SV60KM3P3B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), three 20kVA SV20PM power modules and three SVBM battery modules. Space is included for one additional user-installable SV20PM power module and one SVBM internal battery module. External ±120VDC battery options, such as BP240V370, are also available from Tripp Lite for even more extended runtime. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. |
| Product Type | Double Conversion Online UPS |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| Phase | Three Phase |
| Load Capacity (VA) | 60 kVA |
| Input Voltage |
|
| Output Voltage |
|
| Waveform Type | Pure Sine Wave |
| Network Management |
|
| Backup/Run Time (Full Load) | 3.90 Minute |
| Backup/Run Time (Half Load) | 8 Minute |
| Form Factor | Tower |
| Height | 79.13" (2010 mm) |
| Width | 23.62" (600 mm) |
| Depth | 43.31" (1100 mm) |
| Weight (Approximate) | 1520.99 lb (689910 g) |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| Limited Warranty | 1 Year |
