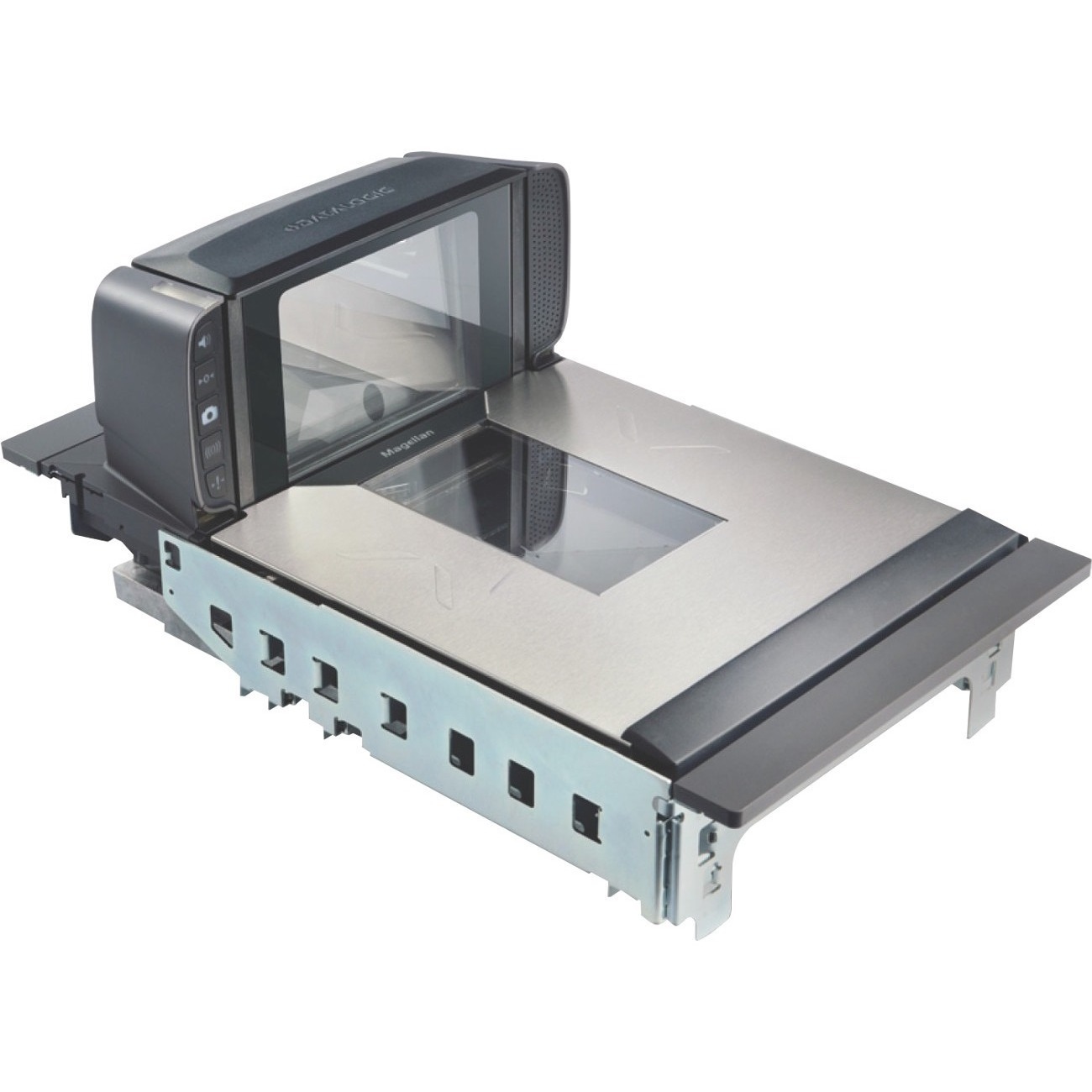

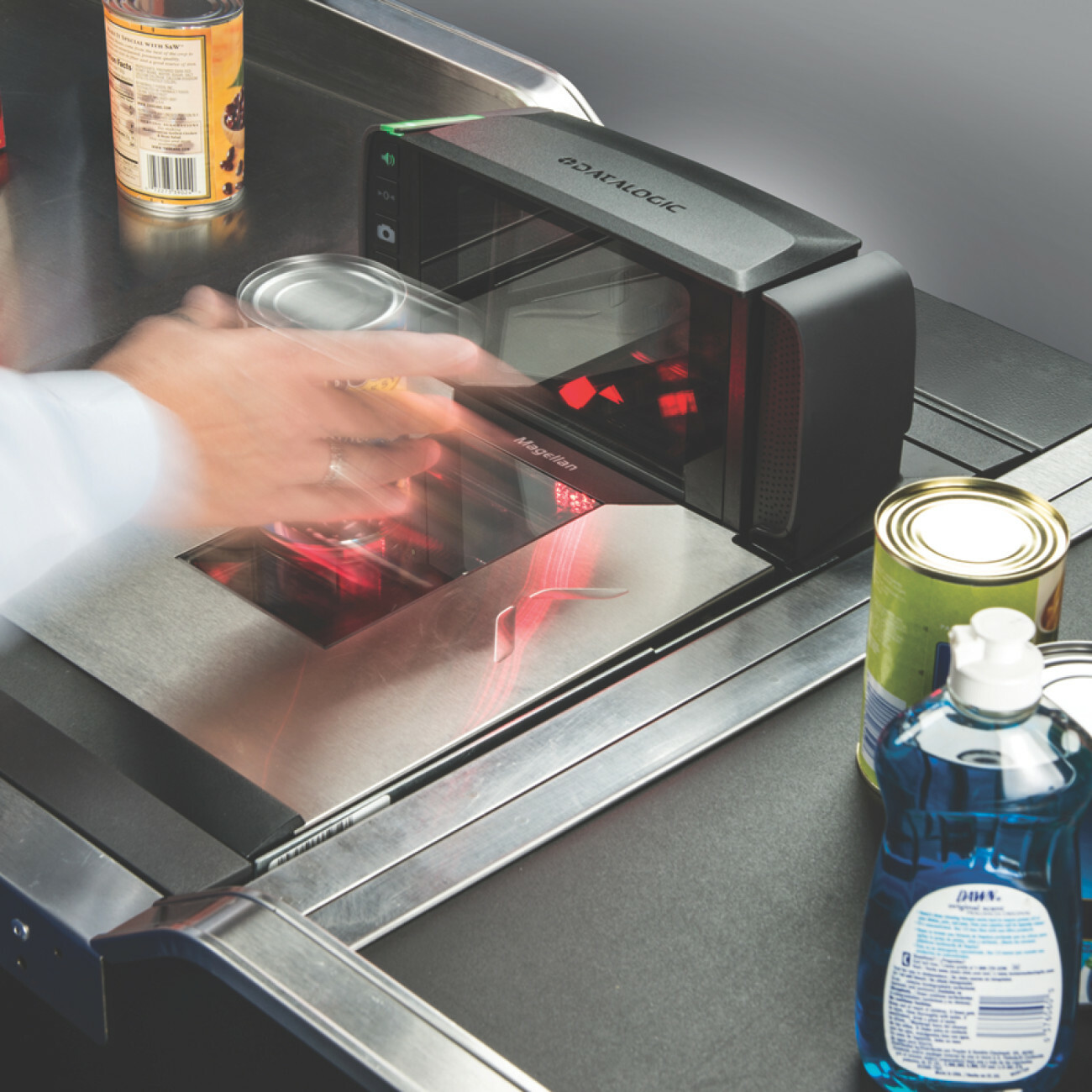

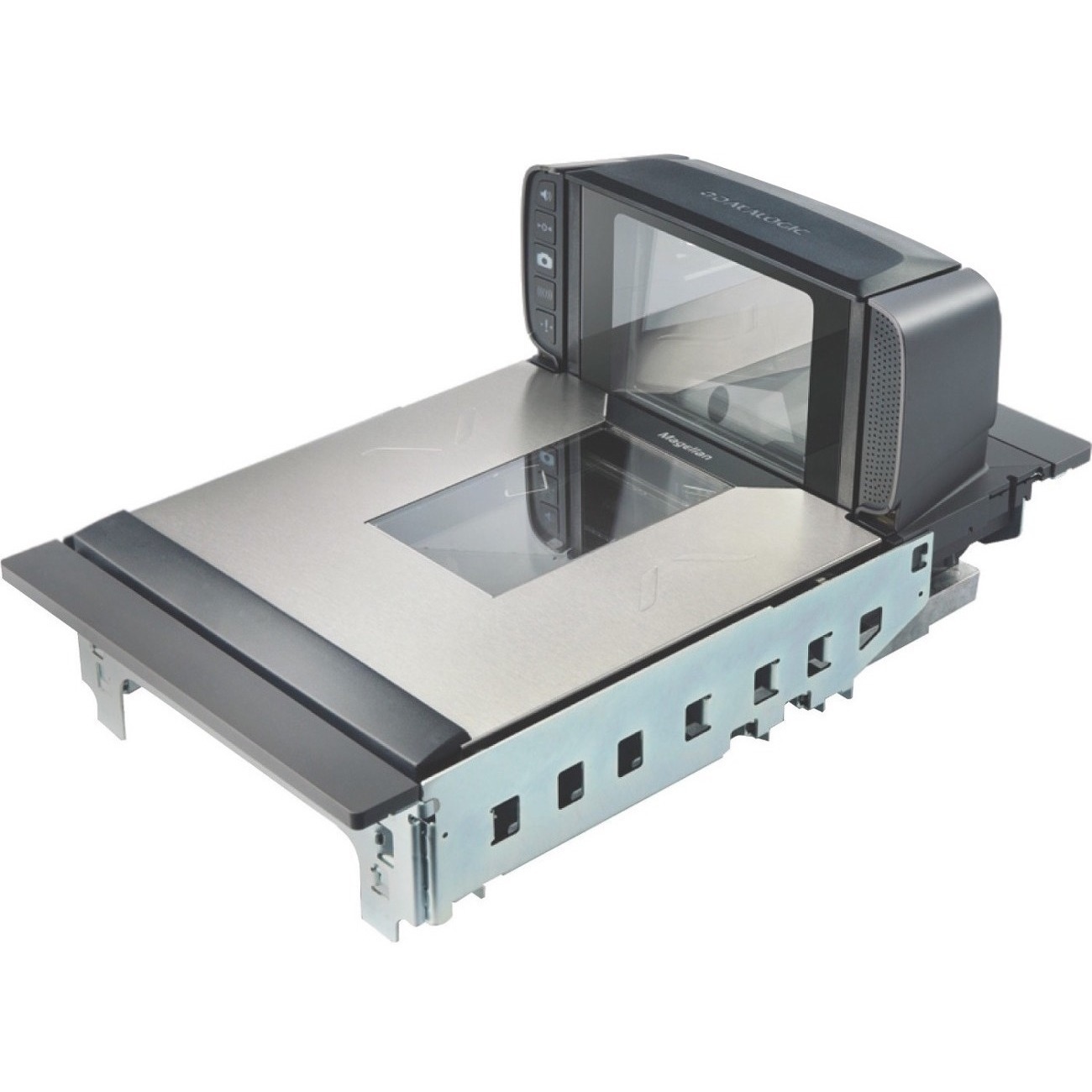

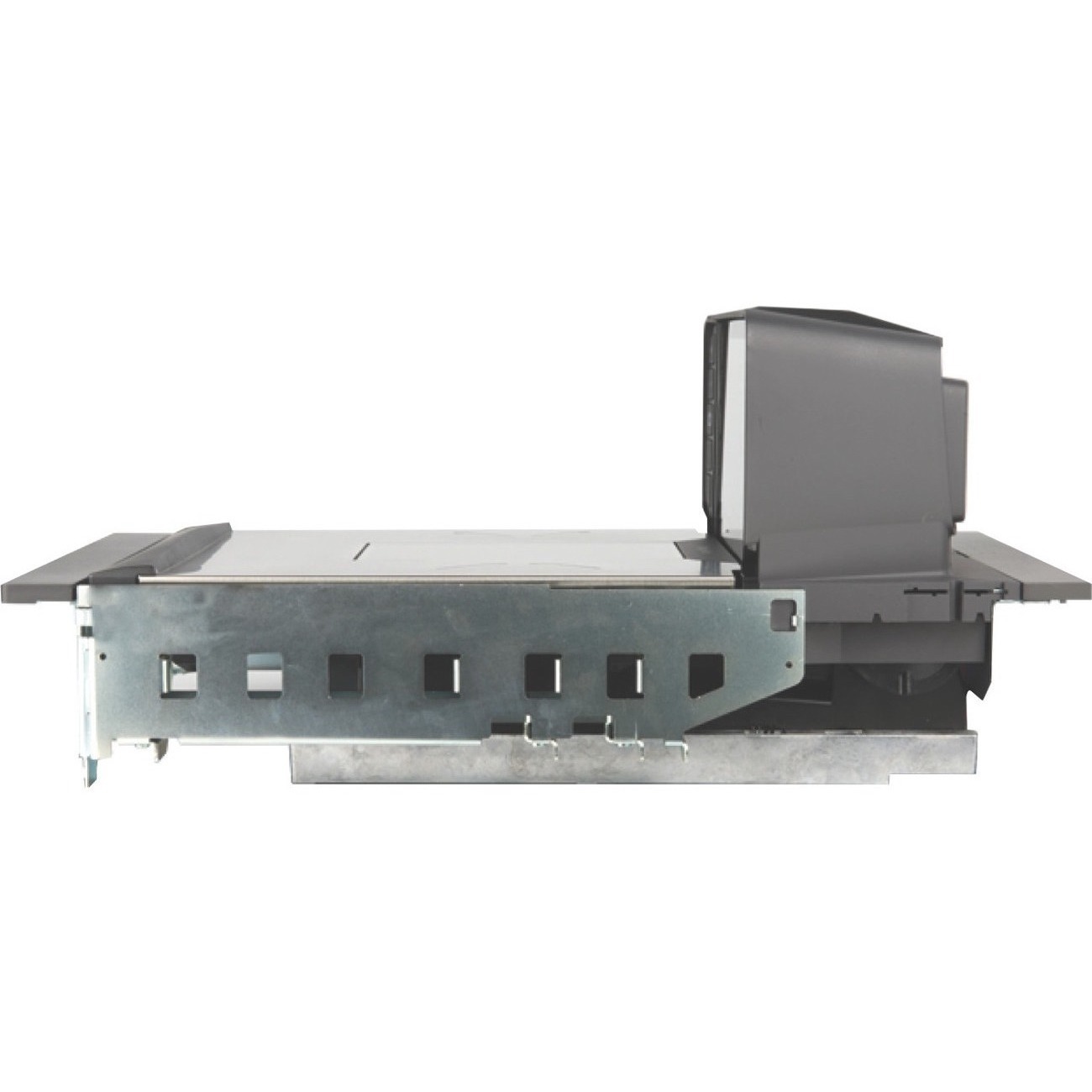

Datalogic Magellan 9300i Fixed Mount Barcode Scanner

Part No. 9320150010-000231

by Datalogic S.p.A

Datalogic Magellan 9300i Fixed Mount Barcode Scanner

Cable Connectivity - 1D, 2D - Imager

Part No. 9320150010-000231

by Datalogic S.p.A

$2399.99
General Information
ManufacturerDatalogic S.p.A
Manufacturer Part Number9320150010-000231
Brand NameDatalogic
Product LineMagellan
Product Model9300i
Product NameMagellan 9300i Fixed Mount Barcode Scanner
Marketing InformationTHE POWER OF IMAGING

The Magellan™ 9300i/9400i scanner/ scale: a new class of high performance bar code scanners. With digital imagers in all planes, the 9300i/9400i scanner reads both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier.

With a more traditional bonnet height and large horizontal and vertical windows, the Magellan 9300i/9400i allows optimum positioning for POS or self-checkout touchscreens, payment terminals and printers while maintaining ergonomic comfort for both seated and standing cashiers.

ENHANCING THE CUSTOMER EXPERIENCE

The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.

LOSS PREVENTION

Innovative features and options such as ScaleSentry™ shrink monitoring/ prevention technology, AllWeighs™ platters and the support of all major EAS systems make 9300i/9400i purposebuilt to help retailers reduce shrink at the POS.

ENTERPRISE FEATURES

Remote Management is supported for OPOS, JavaPOS, IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
Product TypeBarcode Scanner
Technical Information
Connectivity TechnologyCable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported1D / LINEAR CODES: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.

STACKED CODES:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
2D CODES:
  • Aztec Code
  • Data Matrix
  • QR Code
  • Micro QR Code
Image Sensor TypeImager
Interfaces/Ports
Host Interface
  • Serial
  • USB
Physical Characteristics
Form FactorFixed Mount
Height5.12" (130 mm)
Width11.50" (292 mm)
Depth4.02" (102 mm)
Miscellaneous
Country of OriginVietnam
Environmentally FriendlyYes
Environmental Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
COOVN
ConditionNo
Warranty
Limited Warranty1 Year
