PanNet Jack Accessory
MULTI 1
$184.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | CJLRCAPIW-C |
| Brand Name | PanNet |
| Product Name | Jack Accessory |

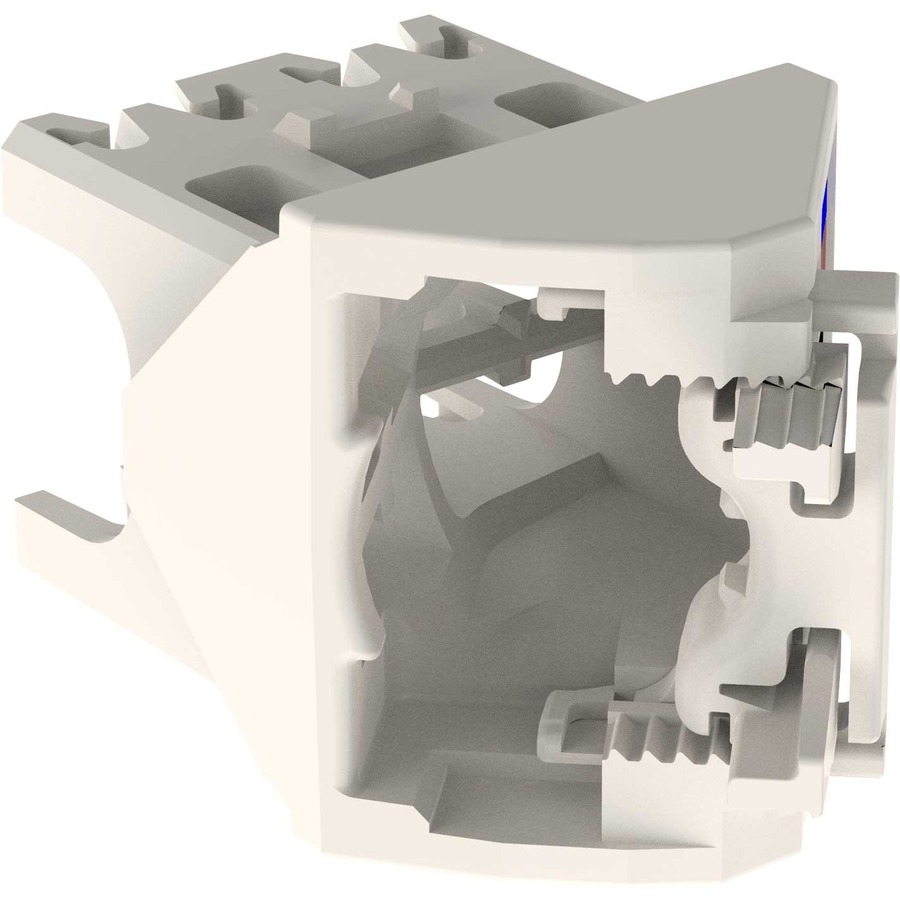

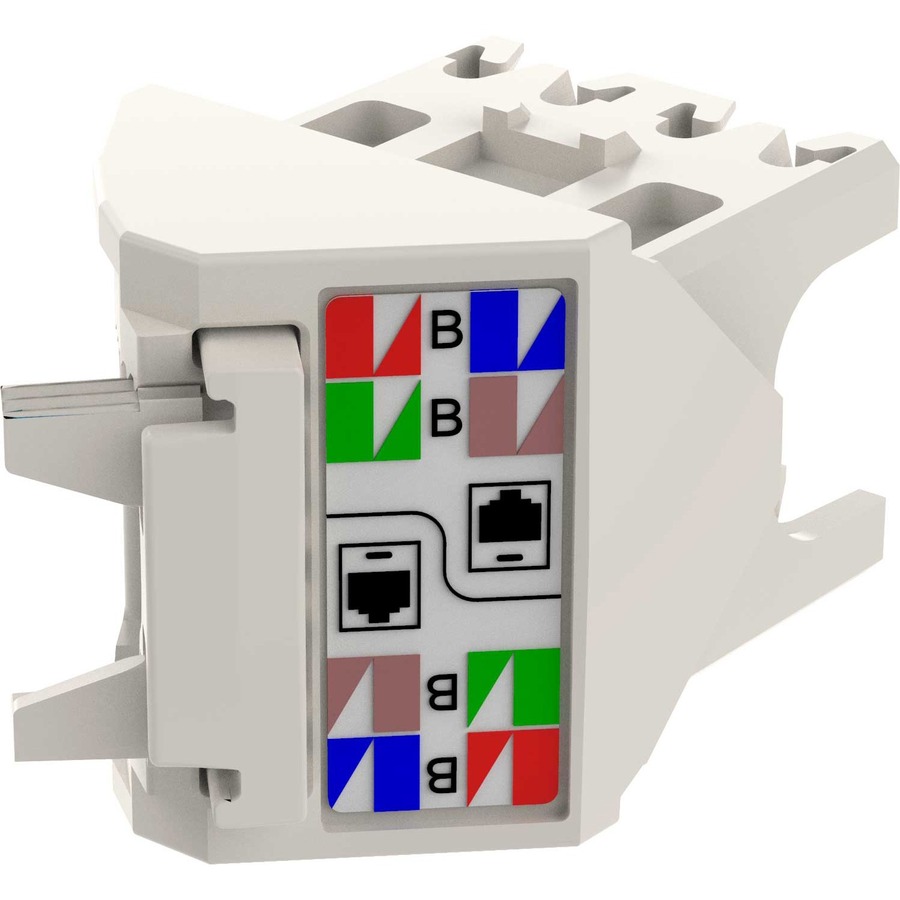

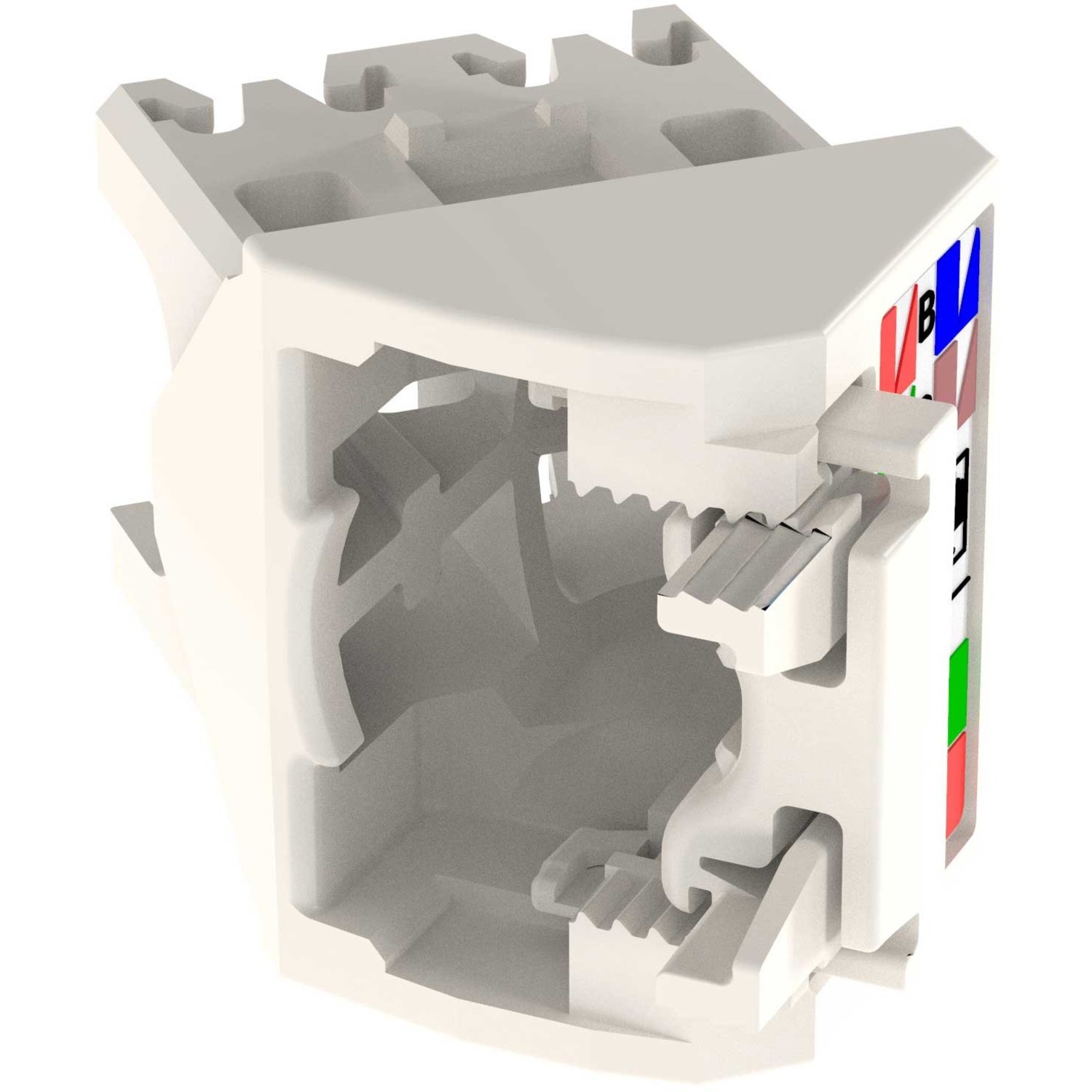

| Marketing Information | 45° angled wire caps, when mated with compatible UTP jack modules, shall provide improved cable routing to jacks in confined spaces. Angled wire caps shall terminate 4-pair, 22 - 26 AWG, 100 ohm unshielded twisted pair cable and shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The wire caps shall be color-coded to designate performance category and shall include a universal label coded for T568B wiring schemes. |
| Packaged Quantity | 100 |
| Product Type | Connector Insert |
Physical Characteristics
| Color Family | White |
| Product Color | Off White |
| Product Material | Polycarbonate |
| Height | 0.63" (16 mm) |
| Width | 0.61" (15.50 mm) |
| Depth | 0.96" (24.40 mm) |
Miscellaneous
| Application/Usage | Connector |
| Compatibility |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
