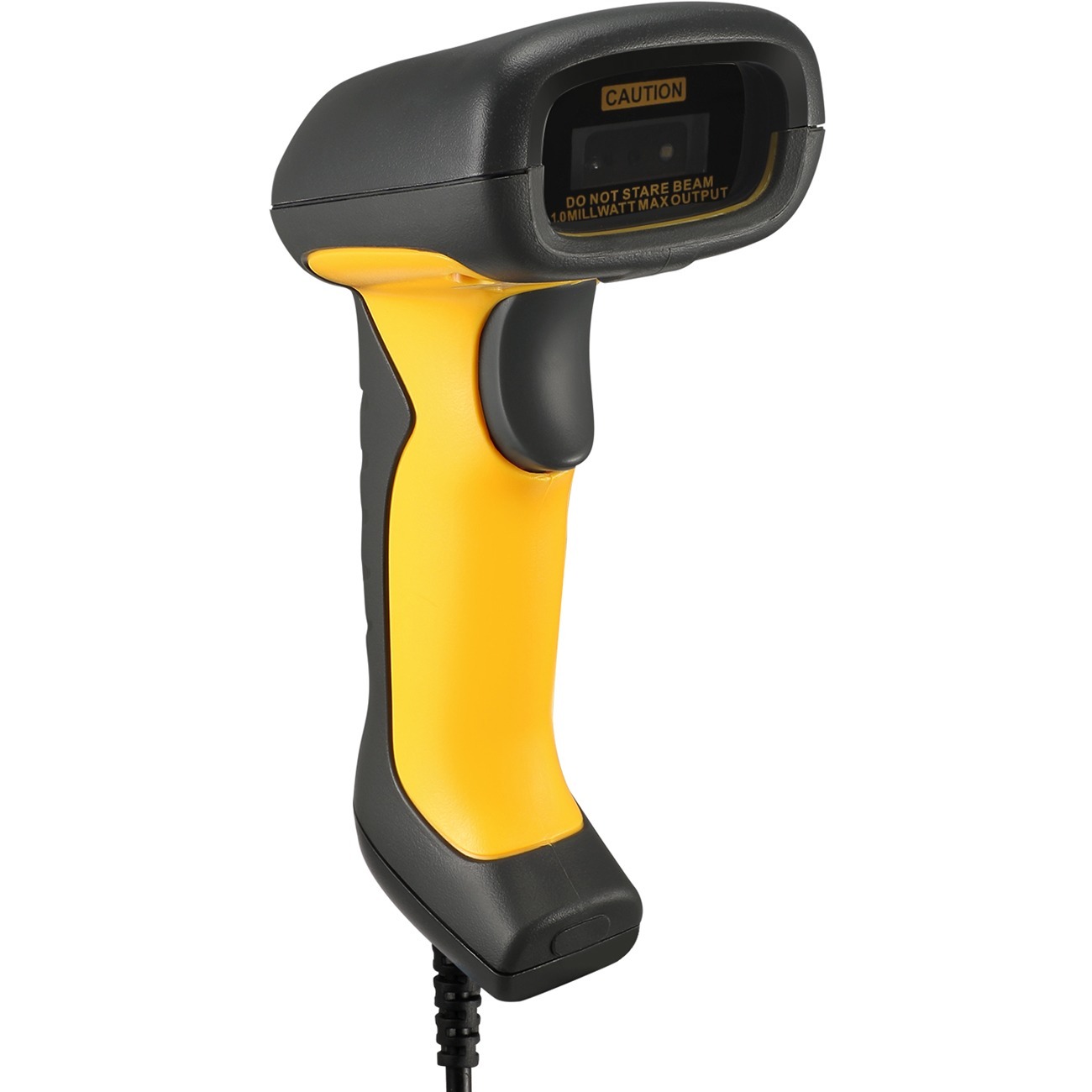

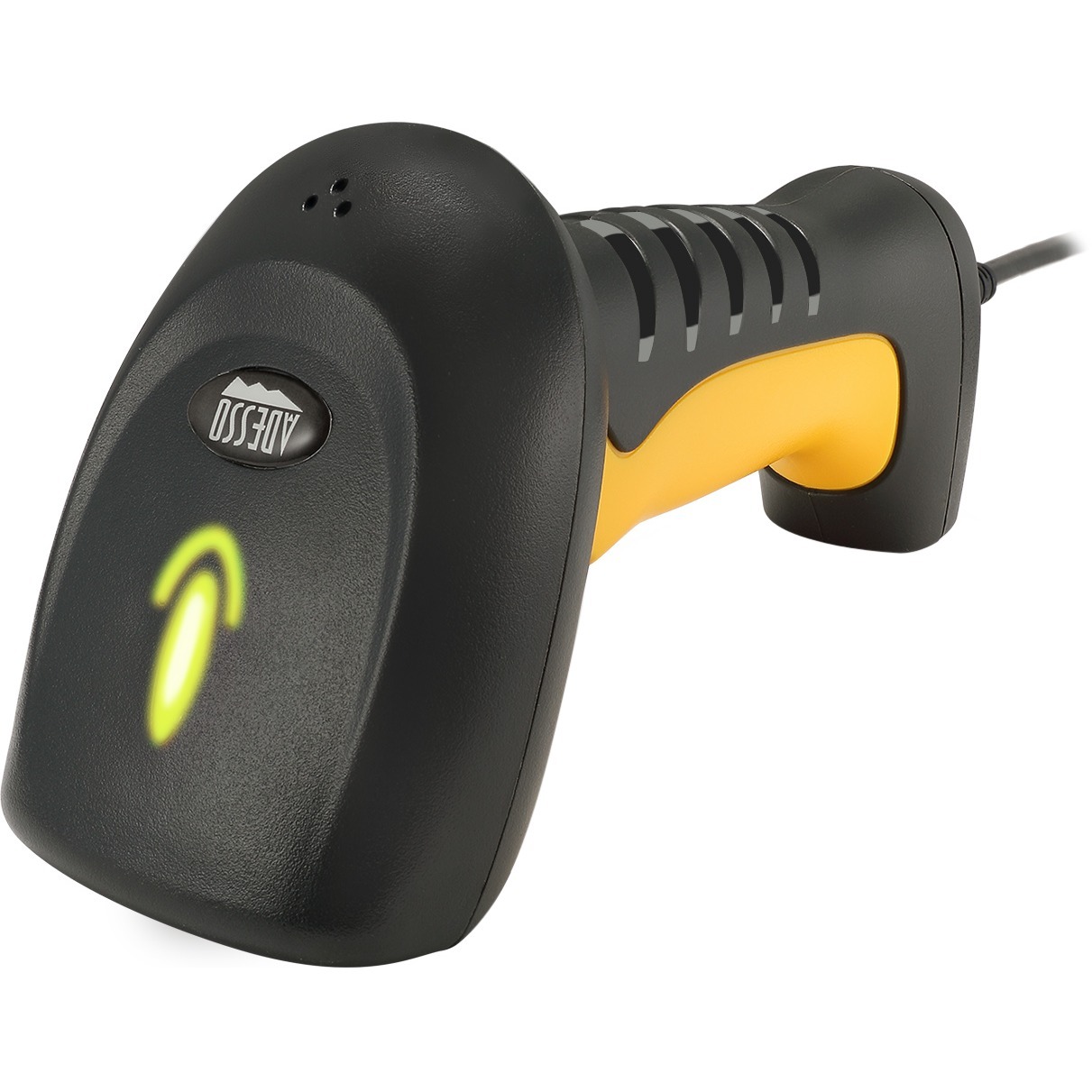

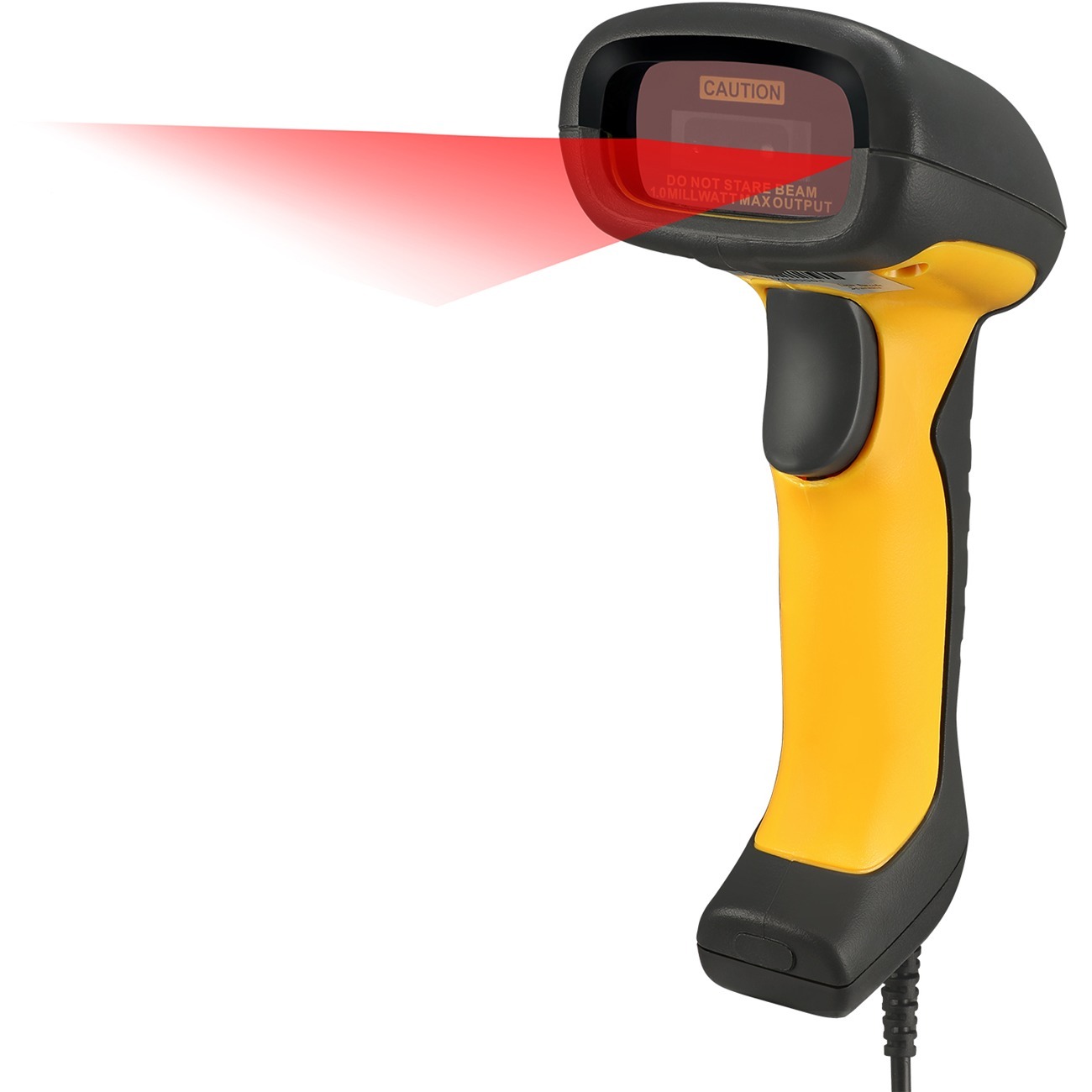

Adesso NuScan 5200TU- Antimicrobial & Waterproof 2D Barcode Scanner

Cable Connectivity - 12" (304.80 mm) Scan Distance - 1D, 2D - CMOS - USB - Yellow, Black - IP67 - Industrial, Healthcare, Logistics, Library, Retail

Part No. NUSCAN 5200TU

by Adesso, Inc

$236.99

Manufacturer Brochure

Specifications

General Information

Manufacturer	Adesso, Inc
Manufacturer Part Number	NUSCAN 5200TU
Brand Name	Adesso
Product Line	NuScan
Product Model	5200TU
Product Name	NuScan 5200TU- Antimicrobial & Waterproof 2D Barcode Scanner
Marketing Information	The Adesso NuScan 5200TU is compatible with a wide range of 1D and 2D barcode symbologies. With CMOS imager the NuScan 5200TU is able to scan major 2D barcodes such as PDF 417, QR Codes, Data Matrix, and micro QR Code. As your daily peripheral companion, your peripheral must be able to provide you with good hygiene and cleanness. Built with waterproof and antimicrobial substances, the NuScan 5200TU can be cleaned periodically. Its 7 meter drop protection also adds to its ruggedness. With all these great features, the NuScan 5200TU is truly your ultimate barcode scanner. Features: Antimicrobial The Nuscan 5200TU is made with antimicrobial material which prevents the growth of harmful bacteria and protects against the buildup germs. Waterproof IP67 Rated. Sealed with a silicone plastic material, this scanner is 100% waterproof and can be cleaned with soap and water or other liquids cleaners. Ranked as a IP67 Waterproof Standard, this device can withstand being submerged in water for up to 30 min up to a depth of 3 feet. Drop Protection With its rugged design and durable silicone plastic material, the Nuscan 5200TU is less likely to become damaged due to accidental drops from up to 20 feet. 2D & 1D Scanning Engine Easily and instantly read 2-dimensional barcode symbologies such as the most common PDF 417, QR, Data Matrix, and micro QR Code. 1D barcode symbologies are supported as well, making the Nuscan 5200TU truly reliable Superior Scanning Performance The 24 inches per second (IPS) motion tolerance and the innovative high pixels CMOS engine offer fast and accurate scanning results. More from the Manufacturer
Product Type	Barcode Scanner

Technical Information

Connectivity Technology	Cable
Scanning Capability	1D 2D
Barcode Symbology Supported	1D: UPC-A/E EAN13/8 Code 128 GS1-128 Code 39 (Plain&Full ASCII) Code 93 Code 11 Code 25 (ITF/Industrial/Matrix/IATA Standard) Codabar MSI/MSI Plessey GS1 DataBar 2D: PDF 417 Data Matrix QR Micro QR
Image Sensor Type	CMOS
Scanner Range	Long Range
Scanning Distance	12" (304.80 mm)
Reading Angle (Pitch)	45°
Reading Angle (Roll)	50°
Motion Tolerance	24 in/s (609.60 mm/s)
Drop Specification	Withstanding 7m freefall drops
Minimum Print Contrast	30%
Minimum Element Resolution (Code 39)	5 mil (0.13 mm)
Minimum Element Resolution (DataMatrix)	10 mil (0.25 mm)

Interfaces/Ports

Host Interface	USB

Physical Characteristics

Form Factor	Handheld
Color Family	Dual Color
Product Color	Yellow Black
Height	4" (101.60 mm)
Width	3" (76.20 mm)
Length	7" (177.80 mm)
Weight (Approximate)	5.60 oz (158.76 g)

Miscellaneous

Package Contents	NuScan 5200TU- Antimicrobial & Waterproof 2D Barcode Scanner Quick Start User Guide
Ingress Protection (IP) Rating	IP67
Application/Usage	Industrial Healthcare Logistics Library Retail
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Condition	No
UPC	783750008594
