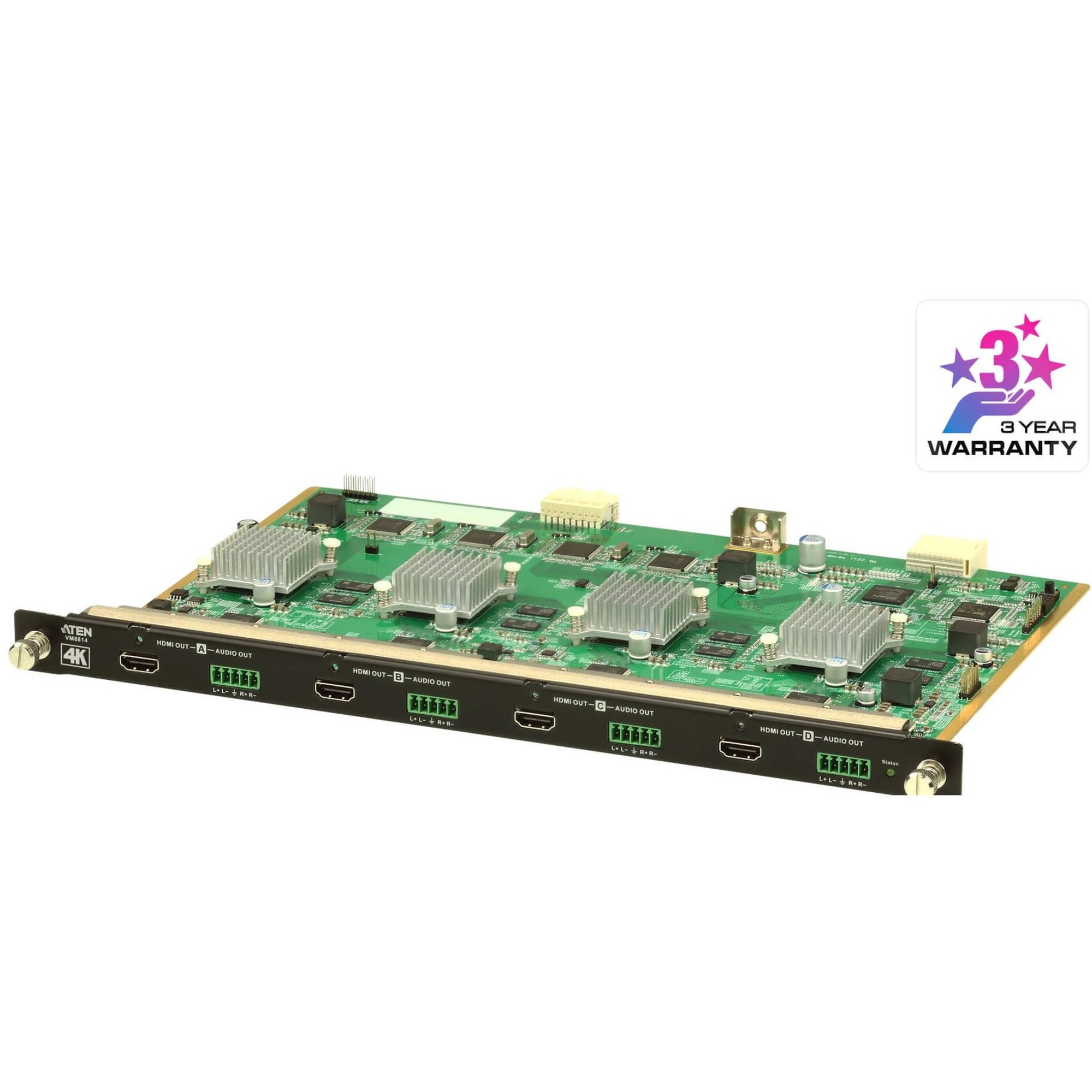

The VM8814 is a 4K HDMI output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI sources to 4 displays. In addition to the HDMI interface that carries digital A/V signals, the VM8814 is equipped with 4 stereo audio output ports that allow HDMI audio extraction.

Considering the need for fast video switching and resolution adaptation in video wall applications, the VM8814 supports Seamless Switch™ and EDID Expert™ that make real-time video switching possible, and contains a built-in 4K scaler that handles different video resolutions. The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.

• Metal - Housing

• 4-Port 4K HDMI Output Board with Scaler
• 4 x Terminal Blocks
• 1 x User Instructions

• Video Output
• Interfaces 4 x HDMI Type A Female (Black)
• Impedance 100 ?
• Max. Distance Up to 15m
• Video
• Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
• Max. Pixel Clock 340 MHz
• Compliance HDMI (3D, Deep Color, 4K)
• HDCP 2.2 Compatible
• Consumer Electronics Control (CEC)
• Max. Resolution 4096x2160/3840x2160@60Hz (4:2:0);
• 4096x2160/3840x2160@30Hz (4:4:4)
• Audio
• Output 4 x Captive Screw Connector, 5 pole
• Power Consumption 20W:94BTU
• Environmental
• Operating Temperature 0 - 40°C
• Storage Temperature -20 - 60°C
• Humidity 0 - 80% RH, Non-Condensing
