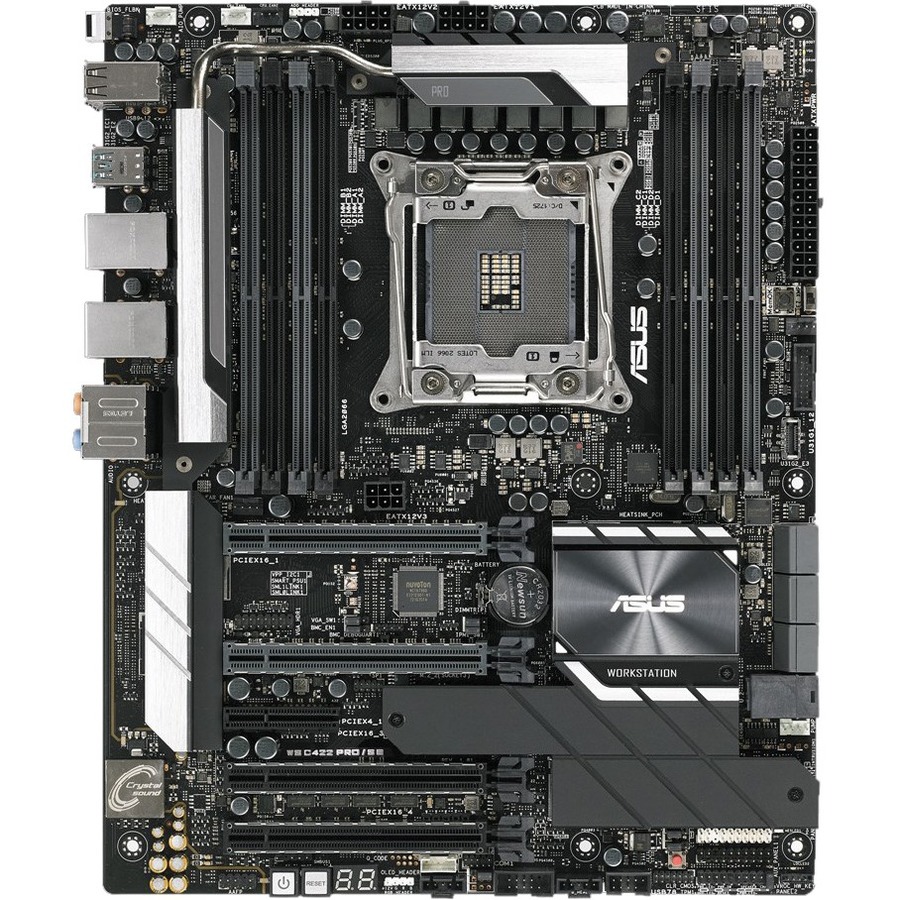

Asus WS C422 PRO/SE Workstation Motherboard - Intel C422 Chipset - Socket R4 LGA-2066 - ATX

Part No. WS C422 PRO/SE

by ASUS Computer International

This Product is currently not in offering

Asus WS C422 PRO/SE Workstation Motherboard - Intel C422 Chipset - Socket R4 LGA-2066 - ATX

Part No. WS C422 PRO/SE

by ASUS Computer International

This Product is currently not in offering

General Information
ManufacturerASUS Computer International
Manufacturer Part NumberWS C422 PRO/SE
Brand NameAsus
Product ModelWS C422 PRO/SE
Product NameWS C422 PRO/SE Workstation Motherboard
Marketing Information

Comprehensive IT Management Software

WS C422 PRO/SE features an embedded iKVM module and is bundled with ASUS Control Center software to provide comprehensive in-band and out-of-band management features for small and mid-size businesses:
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
The embedded ASMB9-iKVM module supports remote BIOS updates, fans control, standalone KVM, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics - even if the operating system is down or offline - through a user-friendly, web-based graphical interface that works with all major browsers.

Powerful performance with Intel® Xeon® W processor and ECC memory

WS C422 PRO/SE supports server-grade Intel® Xeon® W series processors to deliver powerful, optimized performance in always-on usage scenarios. Support for Error-Correcting Code (ECC) memory enables automatic detection and repair of single-bit memory errors, reducing the chance of system crashes and data corruption to ensure reliable and responsive workstation performance.

Up to 3-way Multi-GPU support with True PCIe Gen3 x 16 link

WS C422 PRO/SE features three true PCIe Gen 3 links with support for two-way and three-way NVIDIA®SLI™ and AMD CrossFireX™ configurations to enable multiple GPU setups that harness the full power of the latest graphics technologies to unleash maximum graphics processing performance.

Ultra-fast storage and I/O options Dual onboard M.2 & M.2 heatsink

WS C422 PRO/SE features dual onboard M.2 slots that support up to 22110-length SSDs and operate at PCIe Gen 3 x4 link speeds to provide an abundant 32Gbps of bandwidth for up to 5.3X faster performance than traditional SSDs. Both slots sit below the C422 chipset and are covered by a heatsink that reduces drive temperatures by as much as 20°C, ensuring peak performance under all scenarios. The revolutionary specification that lets your SSDs scream at top speed. Simply attach your choice of drive and experience data-transfer speeds of up to 32Gbps - and free up a PCIe slot for another expansion card.

Product TypeWorkstation Motherboard
Processor & Chipset
Chipset ManufacturerIntel
Chipset ModelC422
Total Processor Supported1
Processor SocketSocket R4 LGA-2066
Processor SupportedXeon
Multi GPU Supported
  • CrossFireX
  • SLI
Memory
Number of Memory Slots8
Memory Form Factor
  • LRDIMM
  • RDIMM
  • DIMM
Maximum Memory Supported512 GB
Memory Speed Supported
  • 2666 MHz
  • 2400 MHz
  • 2133 MHz
Memory TechnologyDDR4 SDRAM
I/O Controller
Controller TypeSerial ATA/600
Intel VROCYes
Intel RSTeYes
RAID SupportedYes
RAID Levels
  • 10
  • 1
  • 0
Video
Onboard VideoNo
Audio
Audio Channels7.1
Network & Communication
Gigabit EthernetYes
I/O Expansions
Total Number of Expansion Slots5
Total Number of PCI Express Slots5
Number of PCI Express x1 Slots1
Number of PCI Express x16 Slots4
Interfaces/Ports
Total Number of USB Ports10
Number of USB 3.1 Ports6
S/PDIFYes
Number of Network (RJ-45) Ports2
Onboard Interfaces
Number of SATA Interfaces6
Number of M.2 Interfaces2
Total Number of Onboard USB Ports5
Number of Onboard USB 3.1 Ports3
Physical Characteristics
Form FactorATX
Width12" (304.80 mm)
Depth9.60" (243.84 mm)
Miscellaneous
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Country of OriginChina
Warranty
Limited Warranty3 Year
