Cooler Master MasterCase MC600P

Part No. MCM-M600P-KG5N-S00

by Cooler Master Co., Ltd

This Product is currently not in offering

Cooler Master MasterCase MC600P

Part No. MCM-M600P-KG5N-S00

by Cooler Master Co., Ltd

This Product is currently not in offering

General Information
ManufacturerCooler Master Co., Ltd
Manufacturer Part NumberMCM-M600P-KG5N-S00
Brand NameCooler Master
Product LineMasterCase
Product SeriesMC600P
Product ModelMCM-M600P-KG5N-S00
Product NameMasterCase MC600P
Marketing Information

Remastered. Get More, Pay Less!
Upgraded MasterCase MC600P With FreeForm™ Modular System

MC-Series with FreeForm™ Modular System

We want you to have absolute control over how your case looks and functions. The FreeForm™ Modular System of the MC-Series lets you adjust the exterior structure and aesthetic via a range of replacement panels and doors. Each choice changes the look and feel of the case, but also the flexibility of the interior layout.

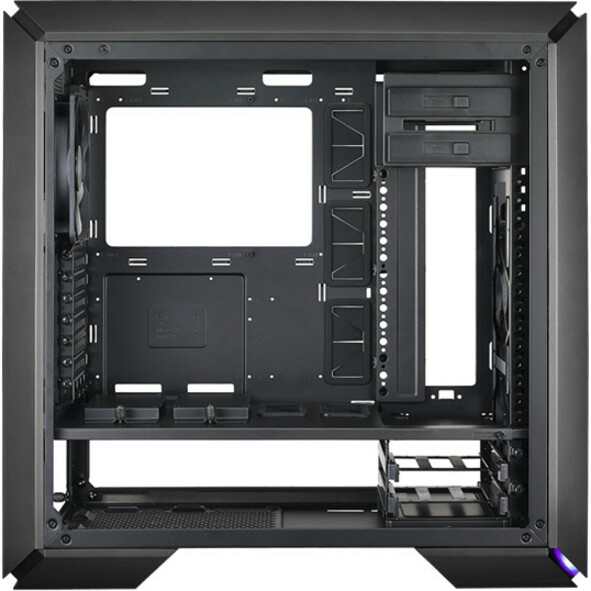

Frame with Removable Partition Plate

The option to relocate the M.port and remove the partition plate gives you the freedom to adjust the inside of the case.With the partition plate installed, you isolate the power supply and cables for a clean build.

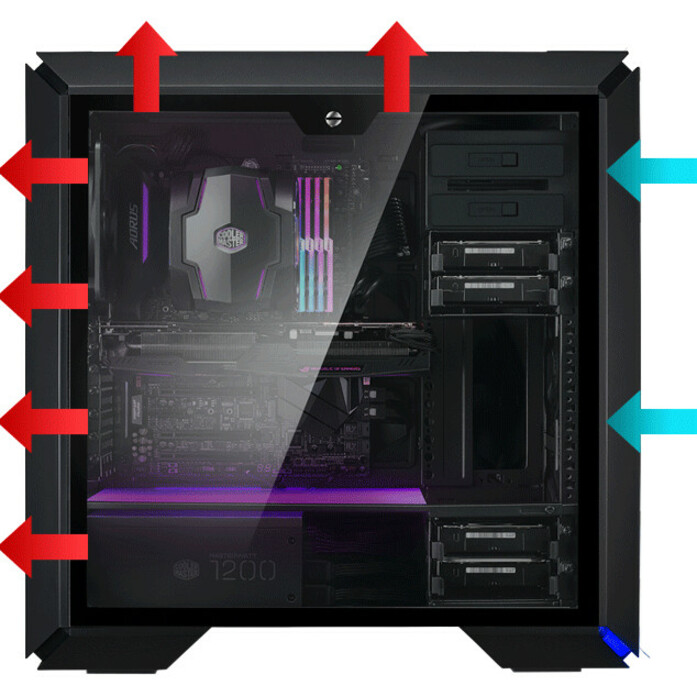

Discreet Air Vents

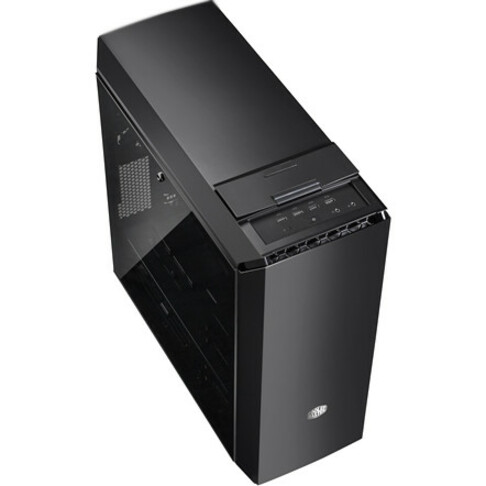

Pop your panels up

Thin vents on four corners of the case provide ventilation. Pop the top and front panels up slightly for even more cooling options. With a convenient magnetic system, feel free to increase the airflow or simply remove your panels for easy access to your fans.

Advanced I/O Panel

Rich connectivity on an easy accessible I/O panel.

Clear View Inside

An edge-to-edge light grey tinted tempered glass side panel gives a wide view inside your PC to showcase your masterpiece.

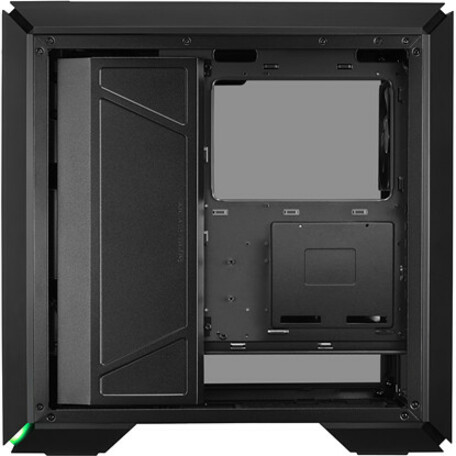

Cable Management Cover

Cooler Master was the first to make a CPU cut out hole and we are the first to cover it again.A PSU shroud and additional cable covers take cable management to the next level. Assemble clean builds like a pro!

Removable Rear Panel

Hide your cables.
Get a cleaner look by hiding your messy cables into the removable rear panel.

Adjust Internal Layout Clip-and-Click Panel

But this isn't just about aesthetics. Each decision opens new possibilities. Leveraging our unique clip-and-click panel, FreeForm lets users vertically adjust or entirely remove your optical disk drive (ODD) and HDD via sliding locks so intuitive you'll play with your configurations just for fun. Well, some people will. Just click-in the cages, and adjust the height to suit your needs. Position them at the top to allow room for up to three extra-long graphics cards, or retain only the bottom positioned cages to add a front-mounted radiator for even more cooling options.

Slip-and-Clip Pockets

The first Cooler Master case to incorporate two easy to install slip-and-clip solid-state drive pockets (2.5") with four easy mounting positions. Showcase them on the partition panel or hide them behind the motherboard tray for a cleaner look.

A. Two behind the motherboard tray
B. Two on top of power supply partition

Accessories

FreeForm extends beyond the case to include all the support you need in terms of selecting and purchasing components through a range of accessories to truly help you Make It Yours.

Product TypeComputer Case
Technical Information
Motherboard Supported
  • EATX
  • ATX
  • Micro ATX
  • Mini ITX
Number of Fans Supported6
Number of Fans Installed3
Installed Fan Size5.51" (140 mm)
Bays
Number of External 5.25" Bays2
Number of Internal 2.5" Bays2
Number of Internal 2.5"/3.5" Bays4
Number of Total Expansion Bays8
I/O Expansions
Total Number of Expansion Slots7
Interfaces/Ports
Total Number of USB Ports4
Total Number of Audio In Ports1
Total Number of Audio Out Ports1
Power Description
Power Supply InstalledNo
Number of Power Supplies Supported1
Number of Power Supplies Installed0
Physical Characteristics
Color FamilyDual Color
Product Color
  • Dark Metallic Gray
  • Black
Product Material
  • Steel
  • Plastic
  • Tempered Glass
Form FactorMid-tower
Height21.57" (548 mm)
Width9.25" (235 mm)
Depth21.42" (544 mm)
Weight (Approximate)28.66 lb (13000 g)
Miscellaneous
Country of OriginChina
Warranty
Limited Warranty2 Year
