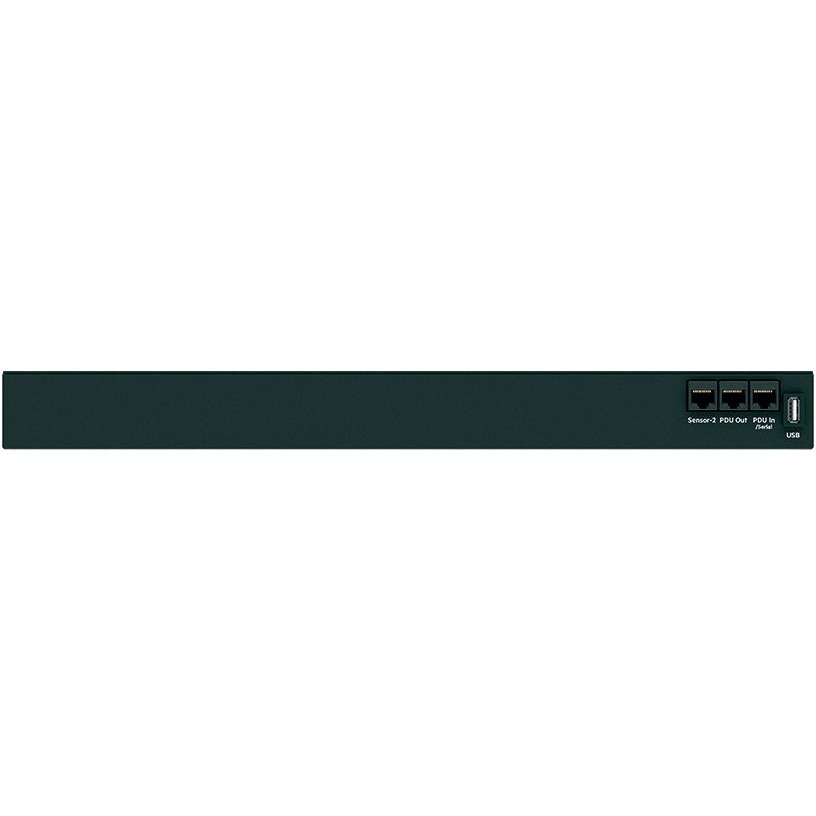

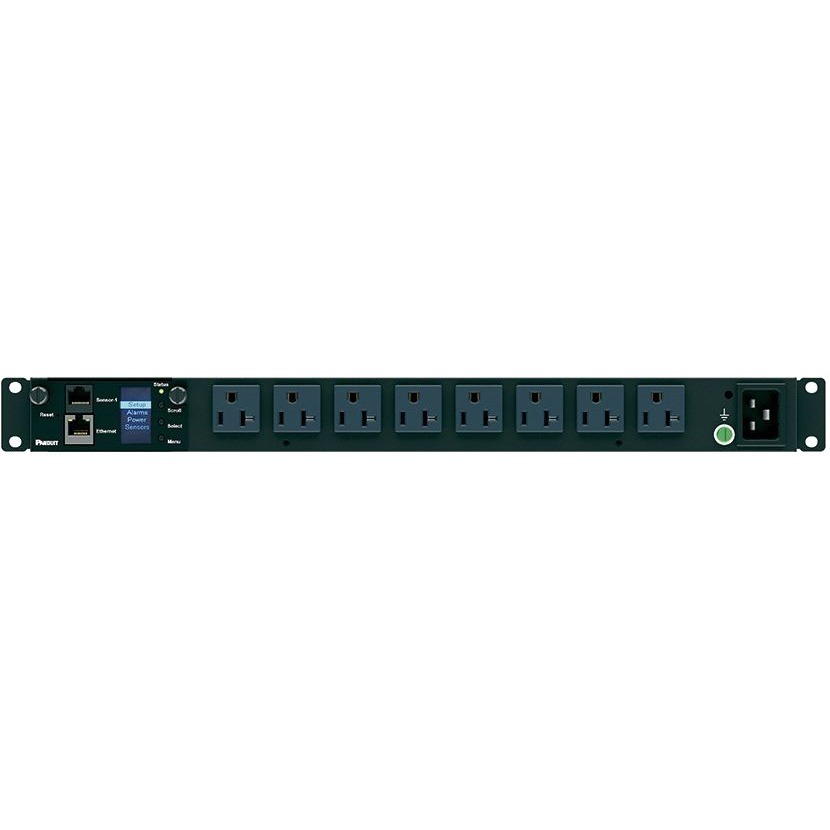

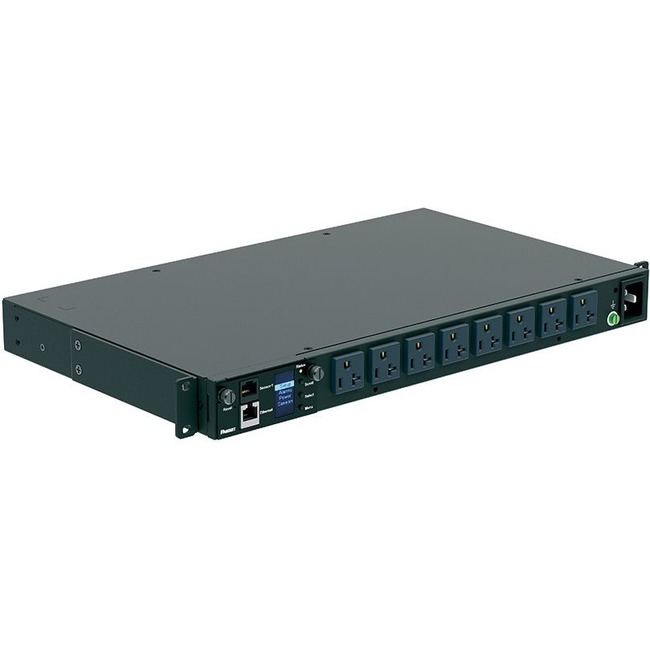

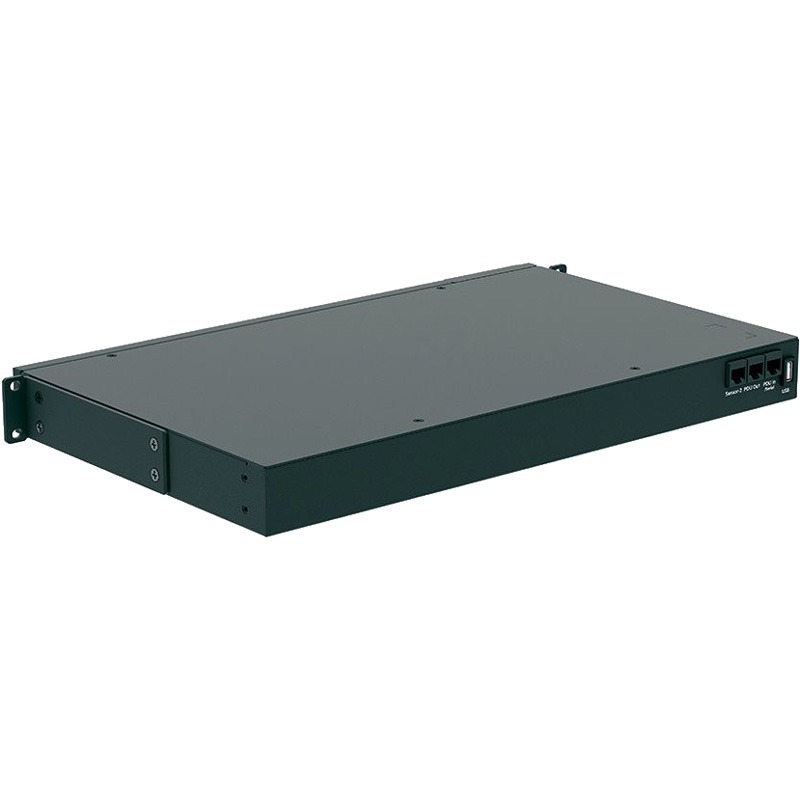

Panduit P08D09M Horizontal Intelligent Power Distribution Unit
Monitored - NEMA 5-15P - 8 x NEMA 5-20R - 120 V AC - 1U - Horizontal - Rack-mountable
$1264.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P08D09M |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MI |
| Product Model | P08D09M |
| Product Name | P08D09M Horizontal Intelligent Power Distribution Unit |
| Marketing Information | The Panduit® SmartZone™ G5 iPDU is more than a power distribution unit and energy meter. These iPDUs monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads, and physical environmental conditions that place critical IT equipment at risk. Panduit's iPDUs provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness), and drive green data center initiatives to save energy and money. Making the right choice in IT equipment is essential for a safe, efficient data center operation. Our full range of iPDUs, environmental sensors, and dual locking power cords are the key to fulfilling mission-critical data center needs. |
| Packaged Quantity | 1 |
| Product Type | PDU |
Technical Information
| PDU Type | Monitored |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 8 x NEMA 5-20R |
Power Description
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Output Voltage Range | 120 V AC - 240 V AC |
| Power Rating (VA) | 1.40 kVA |
| Input Current | 15 A |
Management
| Remote Outlet Switching | No |
Physical Characteristics
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.71" (43.43 mm) |
| Width | 17.46" (443.48 mm) |
| Depth | 10.60" (269.24 mm) |
Miscellaneous
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
Warranty
| Limited Warranty | 3 Year |
