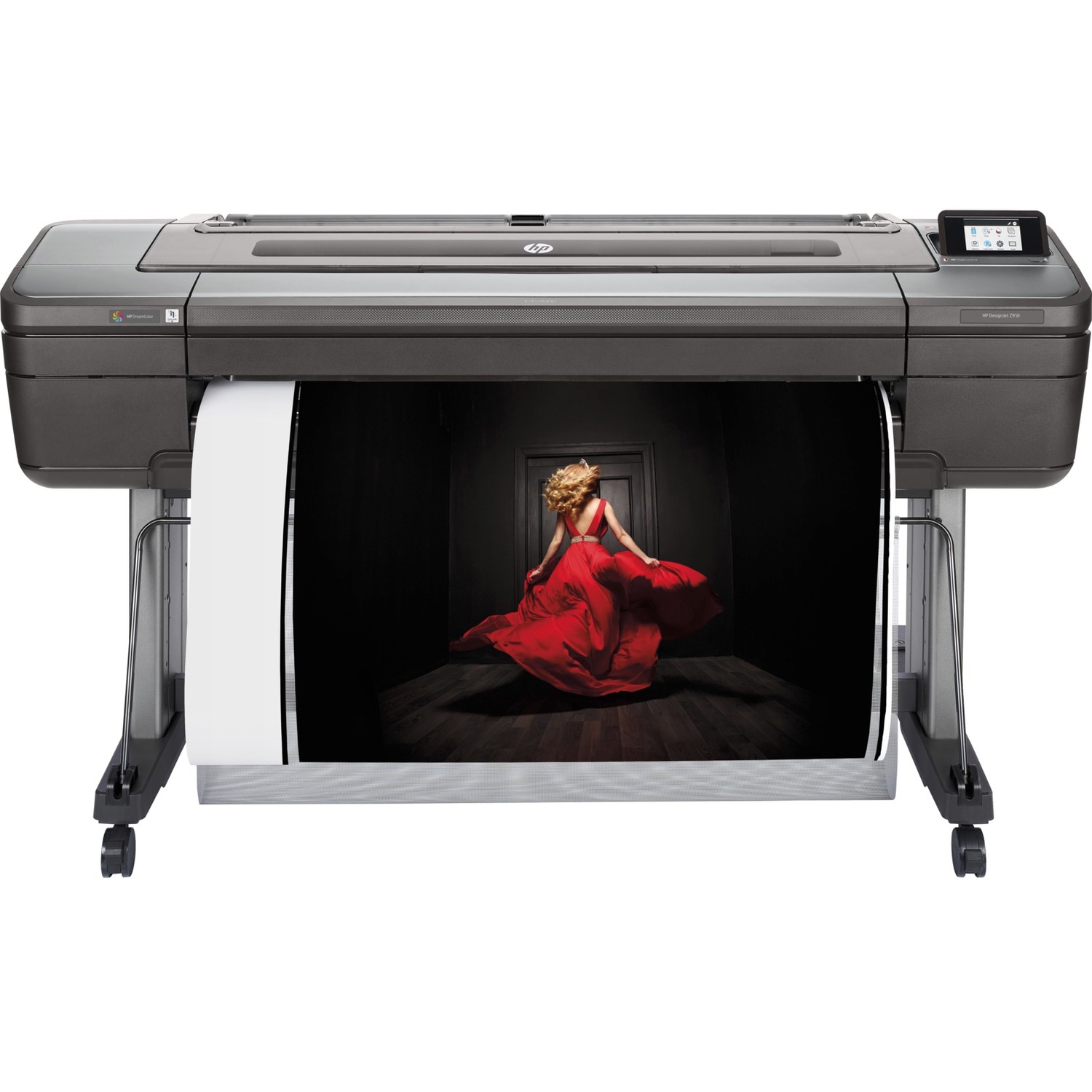

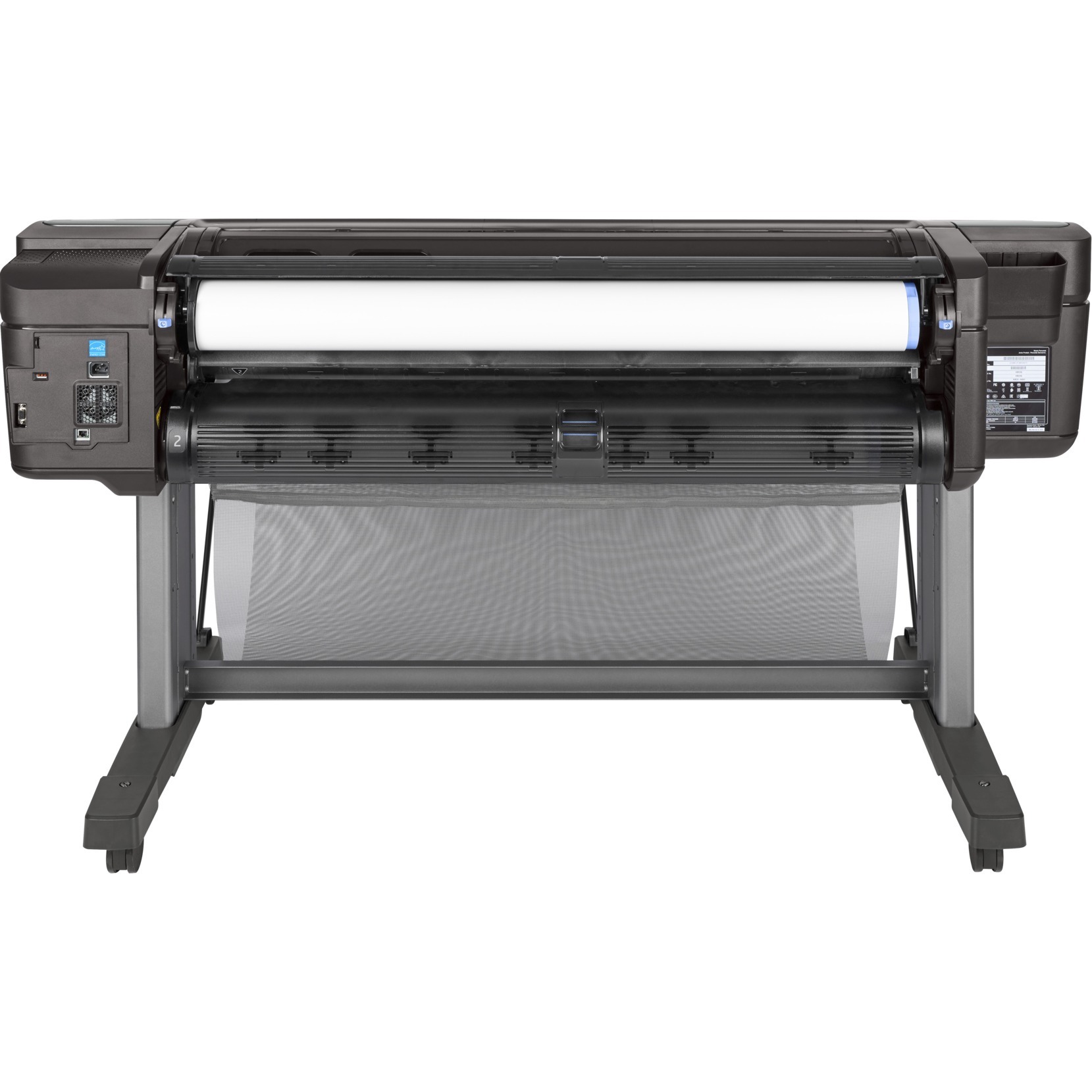

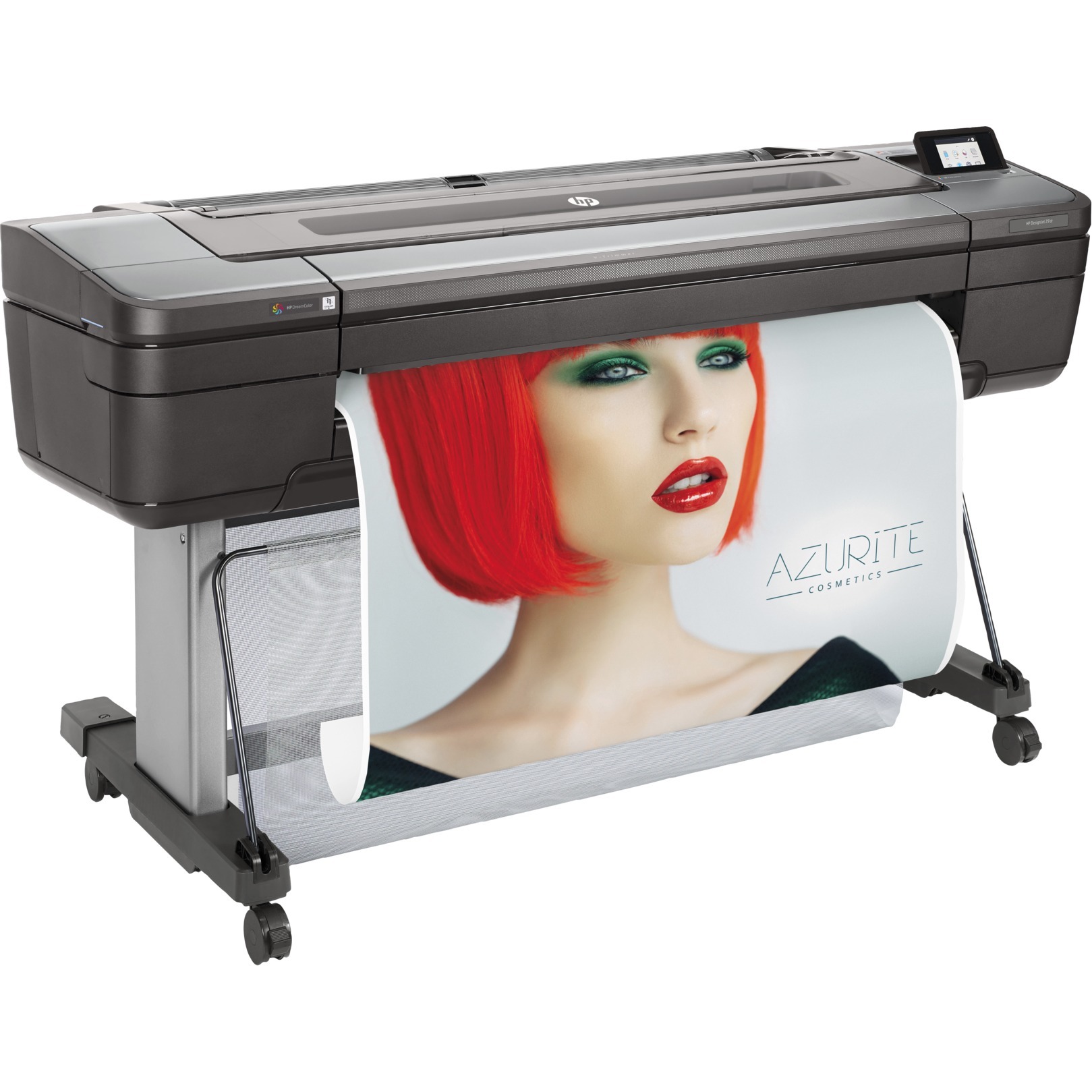

HP Designjet Z9+dr PostScript Inkjet Large Format Printer - 44" Print Width - Color

Part No. X9D24A

This Product is currently not in offering

HP Designjet Z9+dr PostScript Inkjet Large Format Printer - 44" Print Width - Color

Part No. X9D24A

This Product is currently not in offering

User Manual

Specifications

General Information

Manufacturer	HP Inc.
Manufacturer Part Number	X9D24A
Brand Name	HP
Product Line	Designjet
Product Series	Z9+
Product Model	Z9+dr
Product Name	DesignJet Z9+dr 44-in PostScript Printer with V-Trimmer
Marketing Information	Professional photo prints, fast and simple. More quality with fewer inks. AMAZING-Deliver high quality with confidence Impress the most demanding customers with smooth transitions and sharp details thanks to HP Pixel Control. No need for light inks using new high-definition HP printheads with dual drop technology. Achieve expanded gamut with RGB HP Vivid Photo Inks and the embedded spectrophotometer. Get superior gloss uniformity by upgrading your printer to include HP Gloss Enhancer. FAST-Work without delays Cut post-processing labor time up to 20% with the first printer to include an integrated vertical trimmer. Print up to 2.5 times faster without losing quality, with 2400 nozzle-per-inch high-definition printheads. Spend less time on media changes and adjustments with dual roll support and automatic roll switching. SIMPLE-New tools for you and your customers Easily design applications from posters to banners and canvas with the HP Applications Center. No disruption to your workflow, keep using your current RIPs, validated with HP RIP certification program. Get remote visibility and control to better manage your print production environment with HP PrintOS. Enjoy one-click printing that also helps reduce media waste using HP Click printing software.
Product Type	Inkjet Large Format Printer

Technical Information

Number of Colors	9
Print Color Capability	Color
Maximum Color Print Speed (ft²/h)	71.4 m²/h
Maximum Print Resolution (dpi)	2400 x 1200
Maximum Print Width	44"

Interfaces/Ports

USB	Yes

Network & Communication

Ethernet	Yes

Media Types & Handling

Media Type	Photo Paper Fine Art Paper Banner Signage Media Bond Paper Coated Paper Backlit Roll Paper Cut Sheet Canvas
Media Size	8.27" (210 mm) to 44.02" (1118 mm) Width - Cut Sheet 10.98" (279 mm) to 44.02" (1118 mm) Length - Roll Paper Custom - 8.27" (210 mm) to 44.02" (1118 mm) Width x 10.98" (279 mm) to 65.98" (1676 mm) Length A0 - 33.10" (840.74 mm) Width x 46.80" (1188.72 mm) Length A1 - 23.40" (594.36 mm) Width x 33.10" (840.74 mm) Length A2 - 16.50" (419.10 mm) Width x 23.40" (594.36 mm) Length A3 - 11.70" (297.18 mm) Width x 16.50" (419.10 mm) Length A4 - 8.30" (210.82 mm) Width x 11.70" (297.18 mm) Length

Fonts & Emulation

PostScript	Yes

Physical Characteristics

Height	39.29" (998 mm)
Width	70.94" (1802 mm)
Depth	27.36" (695 mm)
Weight (Approximate)	98 kg

Miscellaneous

Form Factor	Floor Standing Supported
Platform Supported	PC Mac
Energy Star	Yes
