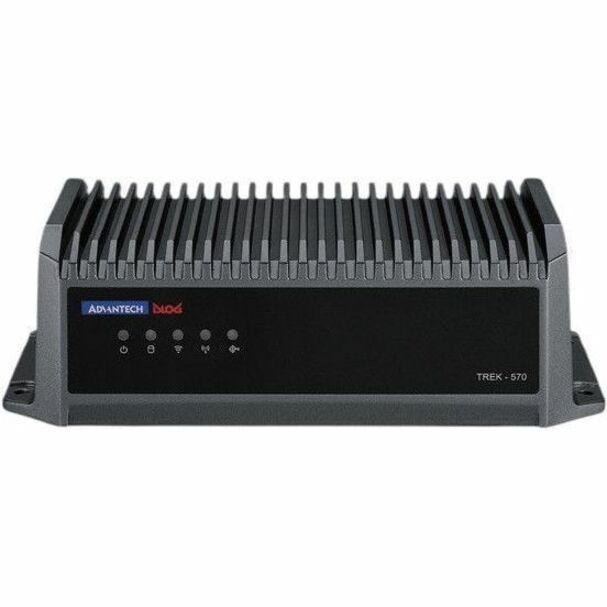

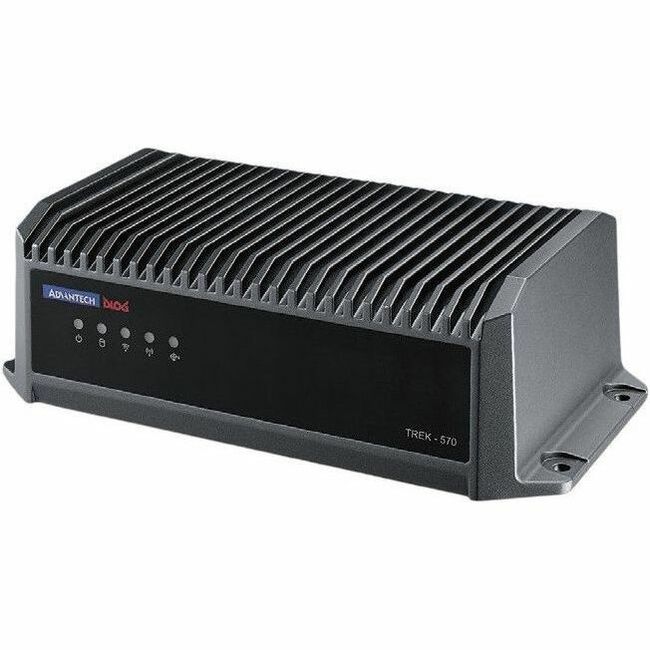

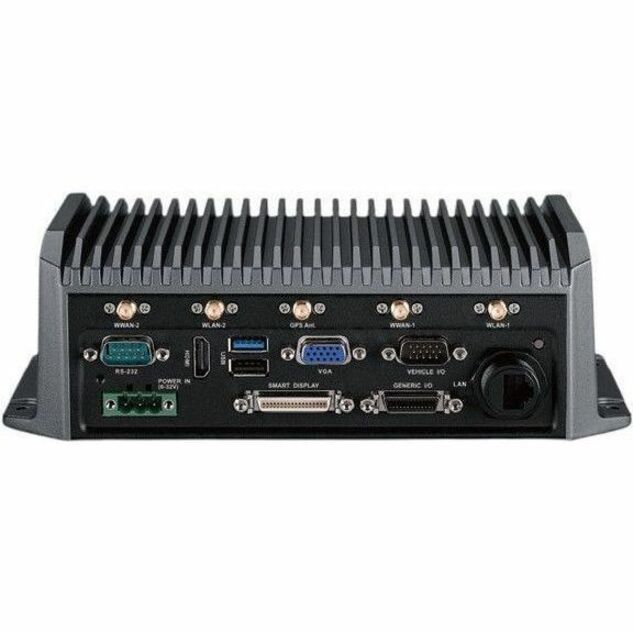

Advantech Compact In-Vehicle Computing Box for Fleet Management
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | TREK-570-00A0E |
| Brand Name | Advantech |
| Product Line | TREK |
| Product Name | Compact In-Vehicle Computing Box for Fleet Management |
| Marketing Information | TREK-570 is a compact and economical in-vehicle computing box powered by an Intel® Atom™ E3826 SOC and can be paired with TREK-303/306 in-vehicle smart displays via a single-cable connection. Aimed at fleet management applications, TREK-570's wide operating temperature and MIL-STD-810G and 5M3 certification for shock vibration resistance enable it to withstand harsh environments. The inclusion of an intelligent vehicle power management (VPM 2.0) chip protects against transient voltage (ISO 7637-2/SAE J1455/ SAE J1113) and enables programmable functions (ignition on/off, delay on/off, and low battery monitoring). TREK-570 also features various I/O for integrating CAN bus devices and peripherals, such as a tire pressure monitoring system. The dual CAN bus ports support diverse protocols (J1939, OBD-II/ISO 15765) to facilitate vehicle diagnostics and driver behavior management. Built-in wireless communication technologies (WLAN, WWAN, Bluetooth) enable vehicle tracking and real-time data transmissions to a centralized control center. Furthermore, TREK-570 also supports dual independent displays/audio outputs for in-vehicle infotainment and digital signage applications. |
| Product Type | Vehicle Mount Terminal |
| Connectivity Technology | Wired |
| Scanning Capability |
|
| Durability | Shock Resistant |
| Processor Manufacturer | Intel |
| Processor Model | E3826 |
| Processor Core | Dual-core (2 Core) |
| Processor Type | Atom |
| Processor Speed | 1.46 GHz |
| Standard Memory | 2 GB |
| Memory Technology | DDR3L SDRAM |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 4.0 |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n |
| Network (RJ-45) | Yes |
| Serial | Yes |
| USB | Yes |
| HDMI | Yes |
| Power Source | DC |
| Operating System | Windows Embedded Standard 7 |
| Height | 2.83" (72 mm) |
| Width | 9.06" (230 mm) |
| Depth | 4.65" (118 mm) |
| Weight (Approximate) | 3.20 lb (1450 g) |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP54 |
| Condition | No |
