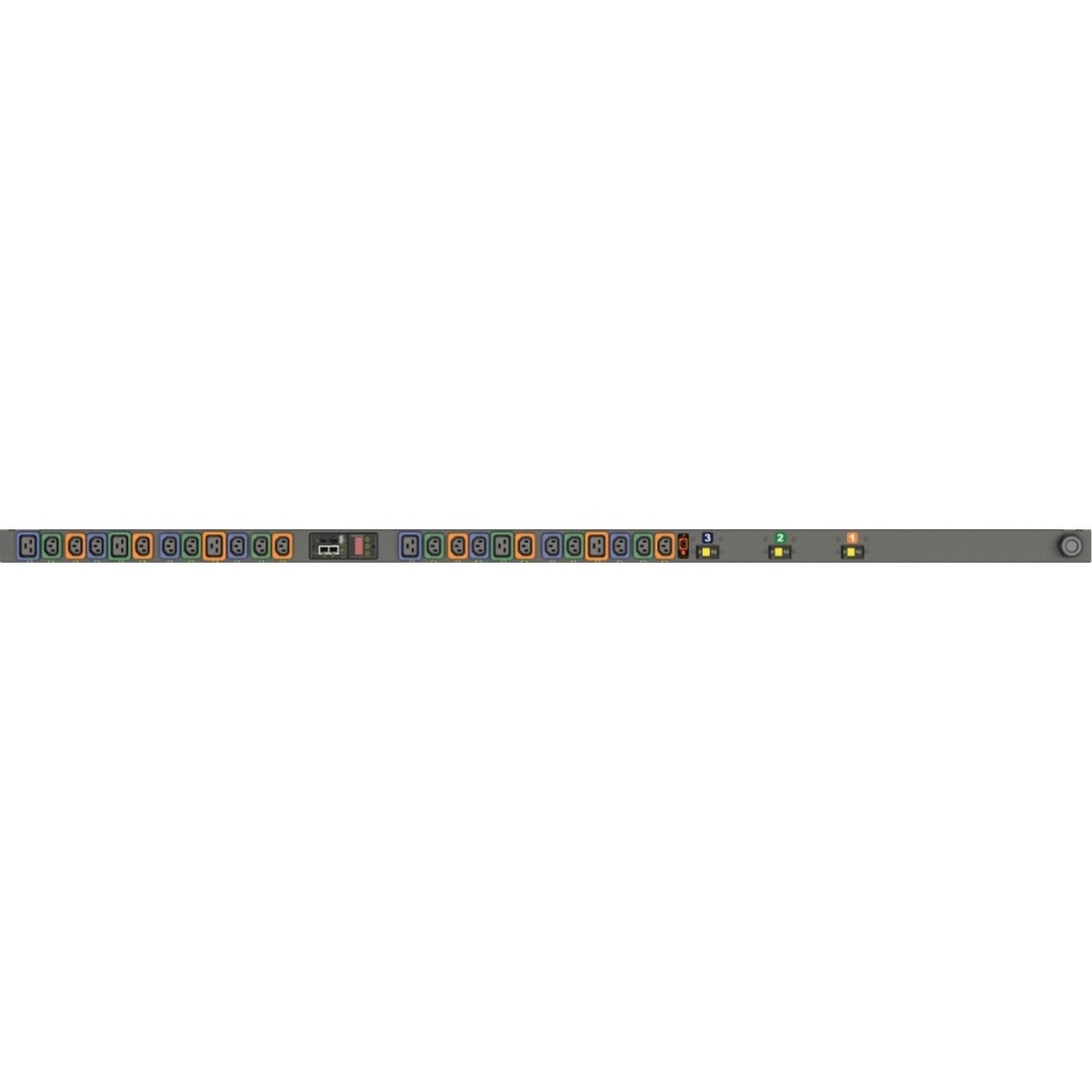

Vertiv Geist MNR3EGB1-24PH68-3TL15A0A10-S-A 24-Outlets PDU
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Vertiv |
| Manufacturer Part Number | NR30026L |
| Brand Name | Vertiv Geist |
| Product Model | MNR3EGB1-24PH68-3TL15A0A10-S-A |
| Product Name | MNR3EGB1-24PH68-3TL15A0A10-S-A 24-Outlets PDU |
| Marketing Information | The NR30026L provides IP-based monitoring with quick access to real-time outlet-level power metrics and environmental sensor data. Using Visible Light Communication (VLC) technology, NR30026L optically transmits power usage data from its LED display to a handheld device using the Geist Mobile App, presenting comprehensive power usage data down to the phase and circuit levels. With the Geist Upgradeable hot-swap technology, users may easily upgrade PDUs to the latest available technology by replacing the Interchangeable Monitoring Device (IMD) module. |
| Product Type | PDU |
Technical Information
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L15-30P |
| Plug/Connector Detail | 1 x NEMA L15-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Protection Type | Overcurrent Protection |
Power Description
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 8.60 kW |
| Input Current | 30 A |
Management
| Management |
|
| Remote Outlet Switching | Yes |
Interfaces/Ports
| Network (RJ-45) | Yes |
Physical Characteristics
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2" (50.80 mm) |
| Depth | 2.60" (66.04 mm) |
| Length | 66.25" (1682.75 mm) |
Miscellaneous
| Package Contents |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty
| Limited Warranty | 5 Year |
