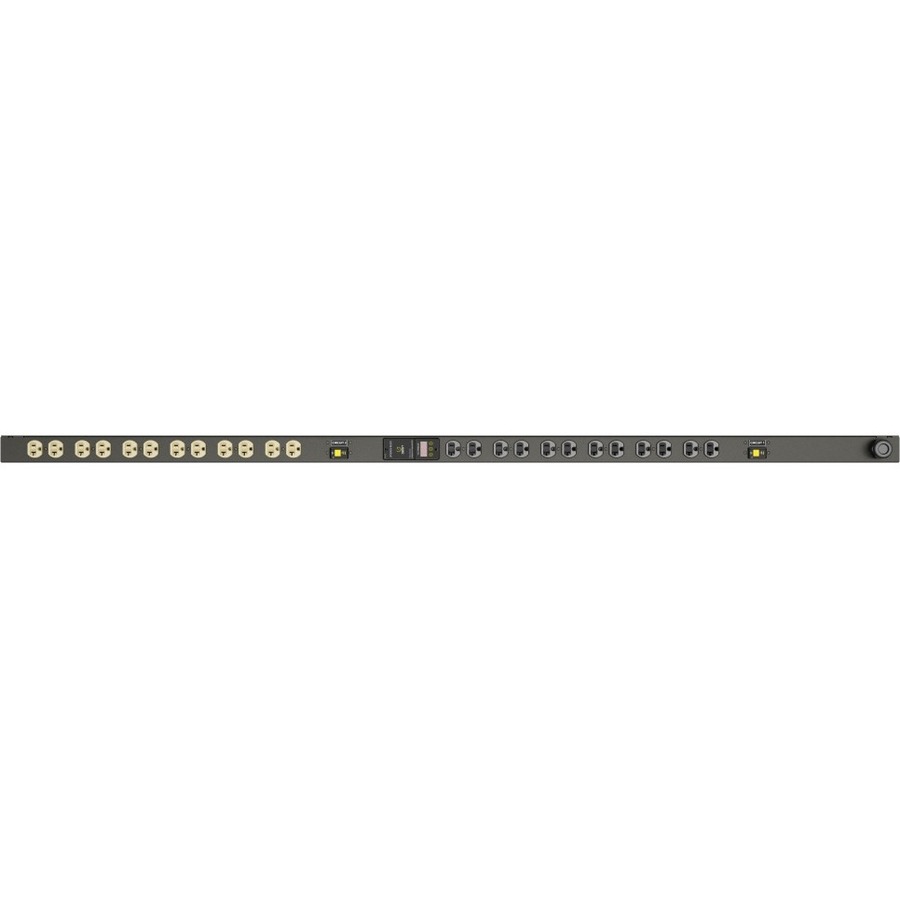

Vertiv Geist MN01D4B1-24D203-3TL5A0A10-S 24-Outlets PDU
Metered - NEMA L5-30P - 24 x NEMA 5-20R - 120 V AC - 0U - Vertical - Rack-mountable
$886.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Vertiv |
| Manufacturer Part Number | I10055 |
| Brand Name | Vertiv Geist |
| Product Model | MN01D4B1-24D203-3TL5A0A10-S |
| Product Name | MN01D4B1-24D203-3TL5A0A10-S 24-Outlets PDU |
| Marketing Information | The I10055 provides real-time power metrics to help prevent overloads and safely optimize load levels. Using Visible Light Communication (VLC) technology, I10055 optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App, presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geists Upgradeable hot-swap technology, users may easily transform Metered PDUs to Monitored by replacing the Interchangeable Monitoring Device (IMD) module, without causing any interruption. |
| Product Type | PDU |
Technical Information
| PDU Type | Metered |
| Plug/Connector Type | NEMA L5-30P |
| Plug/Connector Detail | 1 x NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 24 x NEMA 5-20R |
| Protection Type | Overcurrent Protection |
Power Description
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (Watt) | 2.80 kW |
| Input Current | 30 A |
Physical Characteristics
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2" (50.80 mm) |
| Depth | 2" (50.80 mm) |
| Length | 66.25" (1682.75 mm) |
Miscellaneous
| Package Contents |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
Warranty
| Limited Warranty | 5 Year |
