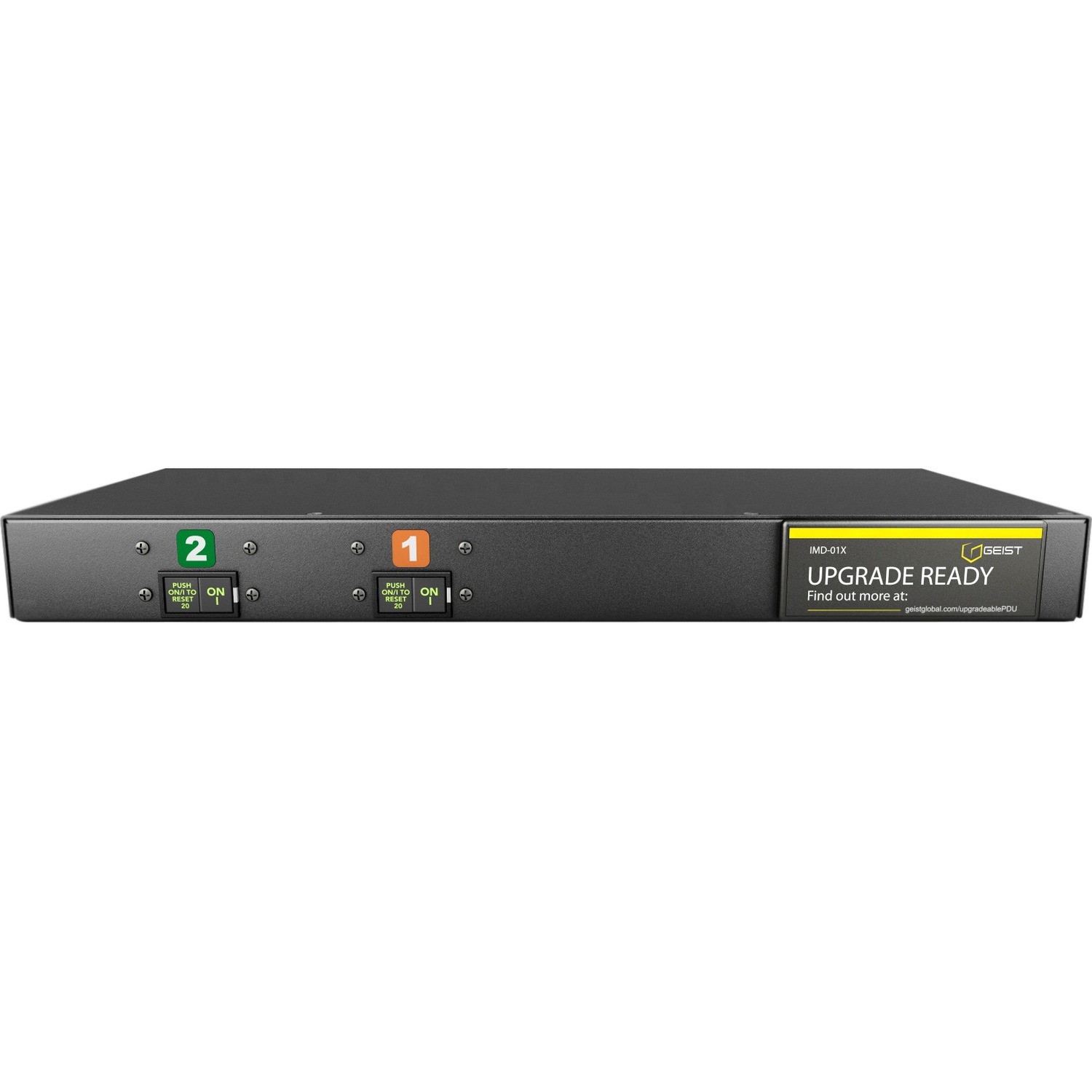

Vertiv Geist MN01X1R1-08P448-3TL6A0H10-S 8-Outlets PDU
Basic - NEMA L6-30P - 4 x U-Lock IEC 60320 C13, 4 x U-Lock IEC 60320 C19 - 230 V AC - 1U - Horizontal - Rack-mountable
$800.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Vertiv |
| Manufacturer Part Number | I10104L |
| Brand Name | Vertiv Geist |
| Product Model | MN01X1R1-08P448-3TL6A0H10-S |
| Product Name | MN01X1R1-08P448-3TL6A0H10-S 8-Outlets PDU |
| Marketing Information | I10104L provides reliable power distribution where you need it in the rack. With the Geist Upgradeable hot-swap technology, users may easily transform basic PDUs to metered or monitored PDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD) module; all without causing any interruption. |
| Product Type | PDU |
Technical Information
| PDU Type | Basic |
| Plug/Connector Type | NEMA L6-30P |
| Plug/Connector Detail | 1 x NEMA L6-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Protection Type |
|
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 4.90 kW |
| Input Current | 30 A |
Physical Characteristics
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.72" (43.69 mm) |
| Width | 17" (431.80 mm) |
| Depth | 8.50" (215.90 mm) |
Miscellaneous
| Package Contents |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
Warranty
| Limited Warranty | 5 Year |
