JBL Professional AW566-LS 2-way Outdoor Speaker - 400 W RMS - Gray
1600 W (PMPO) - 15" (381 mm) - 1.50" (38.10 mm) - 89 Hz to 18 kHz - 8 Ohm
$7021.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Harman International Industries, Inc |
| Manufacturer Part Number | AW566-LS |
| Brand Name | JBL Professional |
| Product Model | AW566-LS |
| Product Name | High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn |

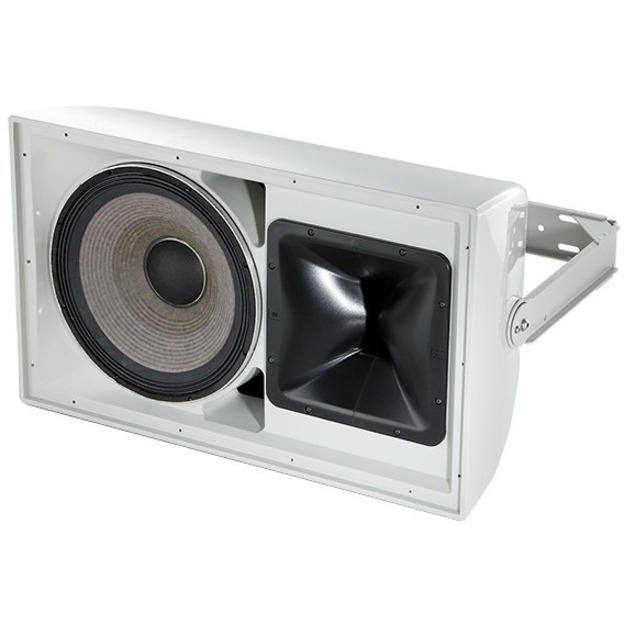

| Marketing Information | Parts are sealed on LS models (non-LS photo shown). High Power 2-Way All Weather Loudspeaker with 1 x 15"" LF & Rotatable Horn for Life Safety Applications The AW566-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation. This loudspeaker is EN 54-24 Compliant for life safety applications. |
| Product Type | Speaker |
Technical Information
| Crossover Type | 2-way |
| RMS Output Power | 400 W |
| PMPO Output Power | 1600 W |
| Woofer Driver Size | 15" (381 mm) |
| Tweeter Driver Size | 1.50" (38.10 mm) |
| Minimum Frequency Response | 89 Hz |
| Maximum Frequency Response | 18 kHz |
| Impedance | 8 Ohm |
| Sensitivity | 100 dB |
| Features |
|
Physical Characteristics
| Product Color | Gray |
| Durability |
|
| Speaker Installation | Outdoor |
| Height | 19.09" (485 mm) |
| Width | 31.89" (810 mm) |
| Depth | 18.82" (478 mm) |
| Weight (Approximate) | 62.39 lb (28300 g) |
Miscellaneous
| Package Contents |
|
| Application/Usage |
|
| Condition | No |
| UPC | 691991014321 |
