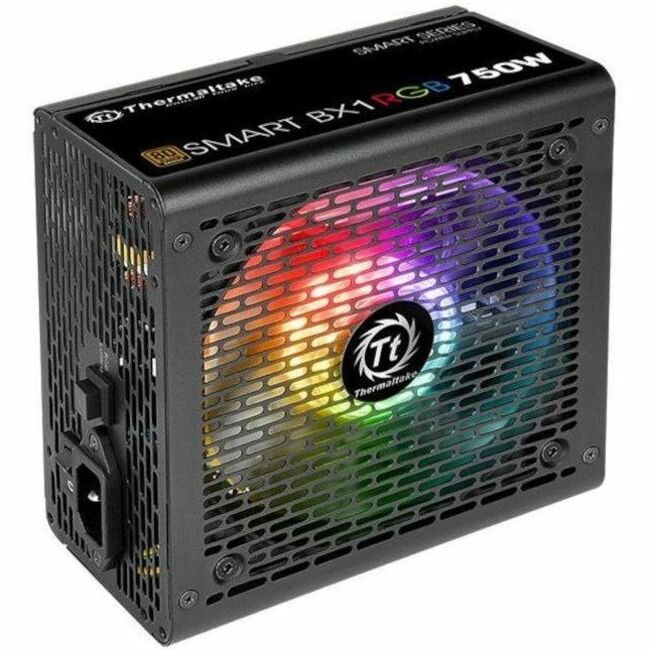

Thermaltake Smart BX1 SP-750AH2NKB 750W Power Supply
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Thermaltake Technology Co., Ltd |
| Manufacturer Part Number | PS-SPR-0750NHFABU-1 |
| Brand Name | Thermaltake |
| Product Line | Smart BX1 |
| Product Model | SP-750AH2NKB |
| Product Name | Smart BX1 SP-750AH2NKB 750W Power Supply |
| Marketing Information | Built to deliver 80 PLUS Bronze efficiency, Smart BX1 RGB series is available in 550W, 650W, and 750W models. The preinstalled 10 LED RGB fan provides excellent airflow, and also 3 lighting modes, 7 color options, LED Off, and a built-in memory function, which saves the colors applied and insure the same color selection every time you boot your PC. Comes with premium components, stable continuous power output at 40?, and ample 5-year warranty, its near silent operation, trouble free installation and reliable performance have made itself satisfy the market where value-oriented users are looking for a power supply with advanced features and aesthetic appeal. 10 RGB LEDs Preinstalled The 10 RGB LEDs come preinstalled on the 120mm fan. Capable of displaying 7 colors(Red, Green, Blue, Yellow, Purple, Light Blue, and White), 3 illumination modes including Pulse, Full-lighted and RGB Cycle, and an LED Off mode. One Button to Your Desired Color Adding personal appeal to your build has never been so easy by just pressing one RGB lighting button! There is also a built-in memory function to save the color applied and insure the same color selection every time you boot your PC. Ultra Quite 120mm Hydraulic Bearing Fan Featuring an 120mm Hydraulic Bearing Fan with intelligent RPM control to guarantee superior cooling performance and silent operation. ? 80 mV Low Ripple Noise All ripples are lower than 80mV for high stability on +12V, +5V, or +3.3V from 0% to 100% load to ensure a high quality power supply. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer. High Quality Japanese Main Capacitor Greatly improves the durability and offers the highest stability and reliability. High Amperage Single +12V Rail Powerful single +12V rail ensures a stable and reliable supply to other PC components. Multiple Connectors Soft black cables come with sleeve cabling design to make cable installation an easy task while powering the system at an advantageous voltage. 80 PLUS Bronze Certified and Intel C6/C7 States Ready Smart BX1 RGB series saves energy through its high energy efficiency up to 88% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel's processors to achieve maximum energy saving. RGB Lighting Gives Best Aesthetics for All Chassis Smart BX1 RGB Series is the best idea for users to go with when they are looking for an RGB PSU that permits remarkable functionality and aesthetics in all cases. |
| Product Type | Power Supply |
| Specification Compliance |
|
| Efficiency | 88% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Fan Bearing Type | Hydro Bearing |
| Fan Diameter | 120 mm (4.72") |
| Protection Type |
|
| Modular | No |
| Features | RGB Lighting |
| MTBF | 100000 Hour |
| Number of +12V Rails | 1 |
| Input Voltage |
|
| Output Voltage |
|
| Output Voltage Detail |
|
| Output Power | 750 W |
| Input Frequency | 60Hz |
| Number of SATA Power Connectors | 8 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| Number of (4+4 pin) CPU Power Connectors | 1 |
| Minimum Operating Temperature | 41°F (5°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Color Family | Black |
| Product Color | Black |
| Form Factor |
|
| Height | 3.39" (86 mm) |
| Width | 5.91" (150 mm) |
| Depth | 5.51" (140 mm) |
| Certifications & Standards |
|
| Energy Efficiency Certification | 80 Plus Bronze |
| Condition | No |
| UPC | 841163004890 |
| Limited Warranty | 5 Year |
