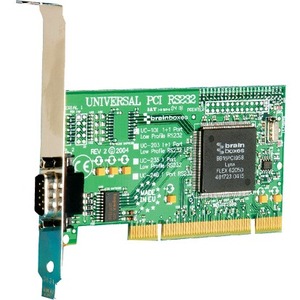

Brainboxes 1 Port RS232 PCI Serial Port Card

Part No. UC-246

by Brainboxes Limited

Brainboxes 1 Port RS232 PCI Serial Port Card

Plug-in Card - PCI - PC - 1 x Number of Serial Ports External

Part No. UC-246

by Brainboxes Limited

$116.99
General Information
ManufacturerBrainboxes Limited
Manufacturer Part NumberUC-246
Brand NameBrainboxes
Product Name1 Port RS232 PCI Serial Port Card
Marketing Information

Universal PCI providing one RS232 serial port. Data transfer rates up to 115,200 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8.

Product TypeSerial Adapter
Technical Information
Host InterfacePCI
Data Transfer Rate115.2kB/s
UART Type
  • 16C958
  • 16750
  • 16550
  • 16450
Platform SupportedPC
Interfaces/Ports
Number of Serial Ports (External)1
Physical Characteristics
Form FactorPlug-in Card
Height0.71" (18 mm)
Width4.72" (120 mm)
Depth5.20" (132 mm)
Thickness0.79" (20 mm)
Weight (Approximate)64 g
Miscellaneous
Package Contents
  • 1 Port RS232 PCI Serial Port Card
  • Installation CD Including Manual
  • Microsoft Signed Drivers & Utilities
Environmentally FriendlyYes
Environmental Compliance
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
Country of OriginUnited Kingdom
TAA CompliantYes
ConditionNo
UPC837324000337
Warranty
Limited WarrantyLifetime
