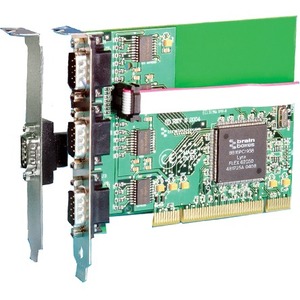

Brainboxes 4 Port RS232 PCI Serial Port Card (3x9 pin Ports + 1x9 Pin Port)
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | UC-420 |
| Brand Name | Brainboxes |
| Product Name | 4 Port RS232 PCI Serial Port Card (3x9 pin Ports + 1x9 Pin Port) |
| Marketing Information | Universal PCI providing four RS232 serial ports. Data transfer rates up to 115,200 baud rates and the 64 byte deep transmit and 64 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8. |
| Product Type | Serial Adapter |
Technical Information
| Host Interface | Universal PCI |
| Platform Supported | PC |
| UART Type | 16550 |
Physical Characteristics
| Form Factor | Plug-in Card |
| Height | 4.72" (120 mm) |
| Width | 0.71" (18 mm) |
| Depth | 5.24" (133 mm) |
| Weight (Approximate) | 94 g |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
Warranty
| Limited Warranty | Lifetime |
