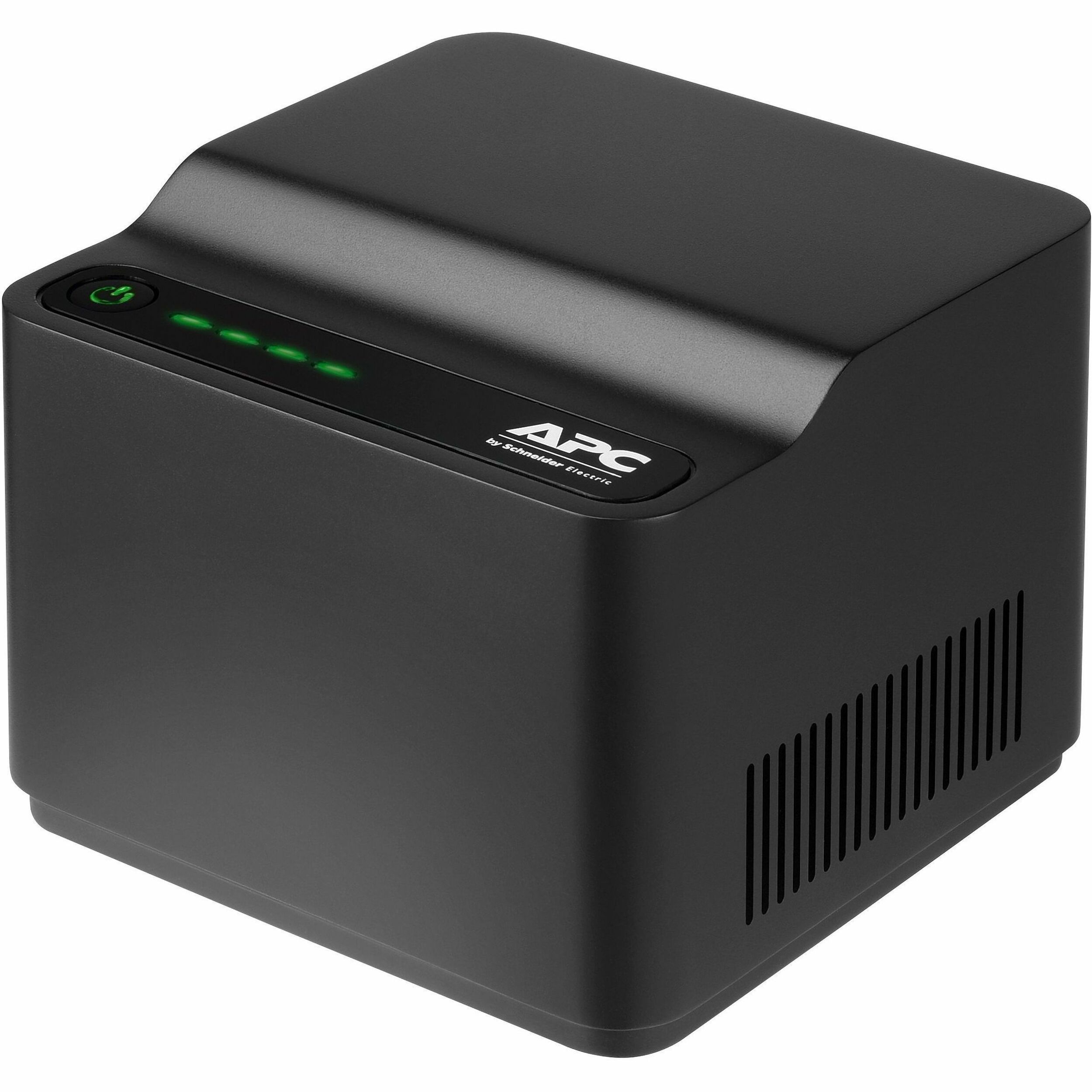

APC by Schneider Electric Network UPS 12Vdc. Lithium Battery,19500mAh, BMS, 4LED
Tower - 1 Day Recharge - 12 V DC Input - 12 V DC Output
$157.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | CP12142LI |
| Brand Name | APC by Schneider Electric |
| Product Line | Back-UPS Connect |
| Product Name | Network UPS 12Vdc. Lithium Battery,19500mAh, BMS, 4LED |
| Marketing Information | Extended Runtime UPS for Network Gateway Devices |
| Product Type | Standby UPS |
Technical Information
| Application/Usage |
|
Power Description
| Load Capacity (VA) | 140 VA |
| Load Capacity (Watt) | 38 W |
| Input Voltage | 12 V DC |
| Input Current | 3 A |
| Output Voltage | 12 V DC |
Management
| Alarm |
|
Controls/Indicators
| Status Indicators | Affichage d'état LED :
|
Battery Information
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 19500 mAh |
| Typical Battery Recharge Time | 1 Day |
| Replaceable Battery | Yes |
Environmental Conditions
| Maximum Operating Temperature | 113°F (45°C) |
| Storage Temperature | 23°F (-5°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Relative Humidity | 0% - 95% |
Physical Characteristics
| Height | 3.78" (96 mm) |
| Width | 7.40" (188 mm) |
| Depth | 3.78" (96 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 1.65 lb (748.43 g) |
Miscellaneous
| Package Contents | |
| Certifications & Standards | Reference contains Substances of Very High Concern above the threshold |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=CP12142LI_ROHS_DECLARATION&p_FileName=CP12142LIKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=490326747&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=490326747&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812002_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812002_EN |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 731304338741 |
Warranty
| Limited Warranty | 2 Year |
| Additional Warranty Information | 2 years repair or replace |
| Directly Connected Equipment Guarantee | $25000 Lifetime |
