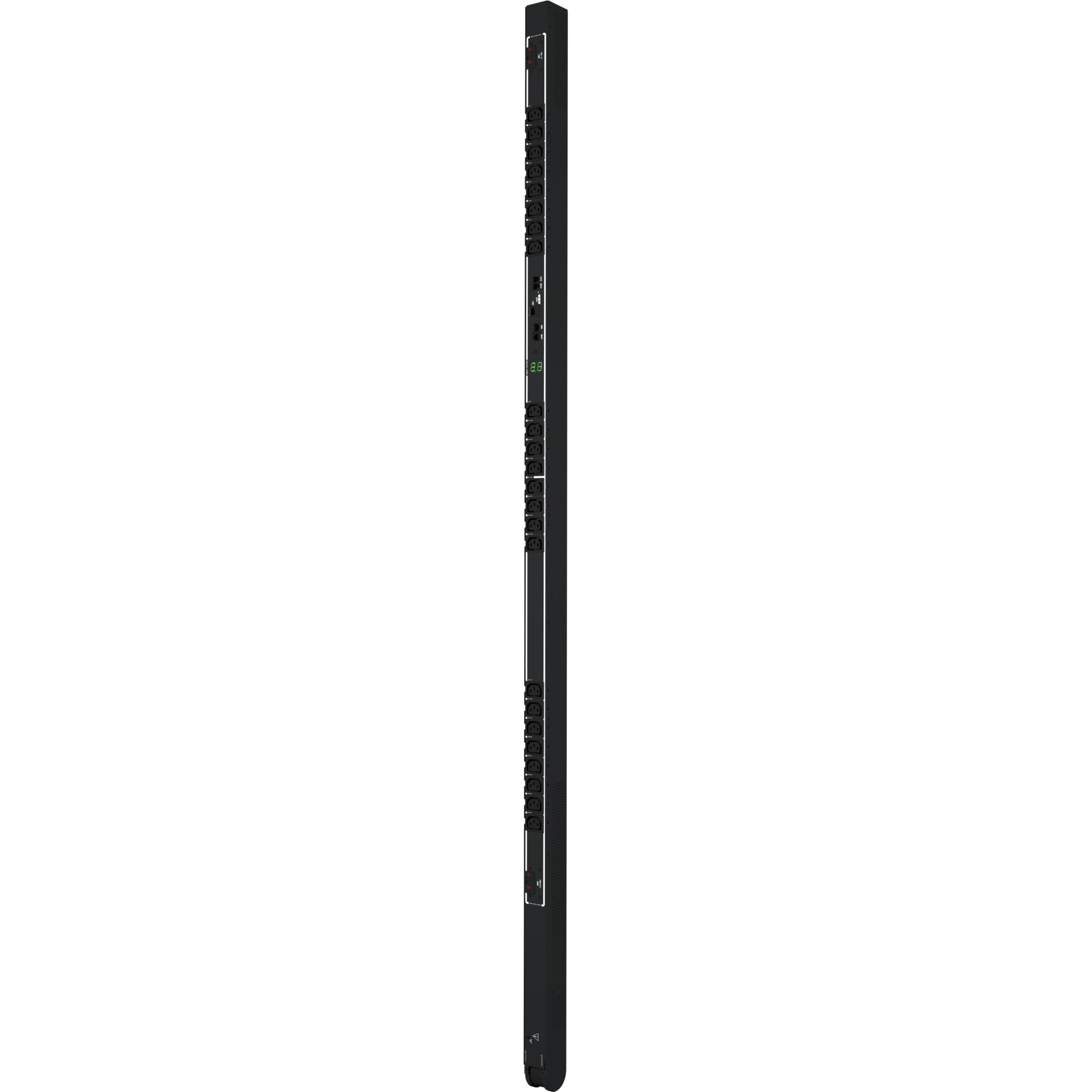

Server Technology PRO1 STV-4511K 24-Outlets PDU
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Server Technology, Inc |
| Manufacturer Part Number | STV-4540K |
| Brand Name | Server Technology |
| Product Series | PRO1 |
| Product Model | STV-4540K |
| Product Name | PRO1 STV-4511K 24-Outlets PDU |
| Marketing Information | The Server Technology® PRO1 Switched Rack PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Switched "Master" PDU can be connected to as many as three PRO1 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration. |
| Product Type | PDU |
| PDU Type | Switched |
| Phase | Single Phase |
| Plug/Connector Type | IEC 2P+PE 6Hr 230V/32A |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 24 x IEC 60320 C13 |
| Protection Type |
|
| Input Voltage | 230 V AC |
| Power Rating (Watt) | 7.30 kW |
| Input Current | 32 A |
| Management |
|
| Network (RJ-45) | Yes |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 69" (1752.60 mm) |
| Width | 3.25" (82.55 mm) |
| Depth | 2.25" (57.15 mm) |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| Limited Warranty | 2 Year |
