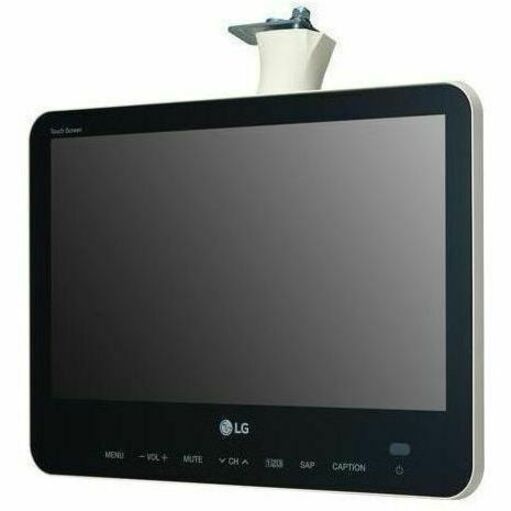

LG LU766A 15LU766A 15.6" Smart LED-LCD TV - HDTV - Black, Ivory

Part No. 15LU766A

by LG Electronics

$1029.99

LG LU766A 15LU766A 15.6" Smart LED-LCD TV - HDTV - Black, Ivory

Edge LED Backlight - 1920 x 1080 Resolution

Part No. 15LU766A

by LG Electronics

$1029.99

Manufacturer Brochure

Specifications
Product Overview

General Information

Manufacturer	LG Electronics
Manufacturer Part Number	15LU766A
Brand Name	LG
Product Series	LU766A
Product Model	15LU766A
Product Name	Personal Healthcare Smart Touch Screen TV
Marketing Information	Personal Healthcare Smart Touch Screen TV Provide your patients with the smart solution, 15.6" multitouch based ARM TV, for a superior hospital experience. The LU766A series enables personalized interactive service with its multi-touch screen and webOSoperating system, which is the optimal platform for Patient Engagement Providers in the industry. Interactive Healthcare TV Solution Intuitive Multi-touch Display This touch screen recognizes the presence of more than two points of contact with the surface, allowing more users in a hospital setting to experience interactive services (e.g., doctor and patient) and entertainment (e.g., patient and family). Interactive Healthcare TV Solution Perfect Viewing Screen with LG IPS LG TV with IPS Panel delivers awe-inspring picture quality across the entire screen, even from wide viewing angles. Interactive Healthcare TV Solution Pre-loaded Apps (including gaming apps) Guest can be served with pre-loaded applications, Including many popular games, Youtube, WebBrowser and others. Smart Experience Pro:Centric Information Management Solution Pro:Centric SMART is optimized for customizing information and entertainment services through an IP & RF infrastructure. With its high picture quality, sophisticated design and advanced connectivity functions, the LU766A Series improves and creates new in-room experiences for patients, hospital staff and family. Smart Experience Pro:Centric Direct Solution Pro:Centric Direct is a content management system for public facility that supports simple editing tools and provides various solutions such as 1-click service and IP-network-based remote management. With the solution, users enable to design UI easily and provide customized service while managing TV efficiently. Smart Experience Pro:Idiom Securely provide entertainment content with Pro:Idiom DRM^{(Digital Right Management)} which prevents illegal copying on your LG devices. Product Reliability Antibacterial Properties Applied Antimicrobial properties applied to Plastic Housing of LU766A series. It treated plastic housing conforms with ISO 22196 standard measuring antimicrobial activity that inhibits the growth of bacteria that may affect the plastic housing. Thus, it is necessary for enhanced Medical Environment(Medical Efficacy). Product Reliability Cleanliness, Safety and Convenience LU766A series LCD panels are designed to be able to be cleaned orused thoroughly without issues, and the stylish, rounded corners of the TV reduce the possibility of injury due to accidental bumping into staff, patients or family visitors. Product Reliability Reliable Operation Industrial panel located inside allows the product to sustain long operation hours. So, LG ARM TV is a reliable TV solution that can be used in hospital environment without a need for addressing unexpected fault.
Product Type	Smart LED-LCD TV

Technical Information

Screen Size Class	16" (406.40 mm)
Viewable Screen Size	15.6"
Backlight Technology	Edge LED
Response Time	25 ms
Features	Film Mode Clear Voice Welcome Screen Pro:Idiom Instant On Auto On/Off Sleep Timer Smart Energy Saving USB Cloning Motion Eye Care
Touchscreen	Yes
PC Streaming	Yes
Internet Access	Yes

Video

Number of Tuners	1
Digital Tuner	ClearQAM ATSC
Analog Tuner	NTSC
Video Signal Standard	HDTV
Maximum Resolution	1920 x 1080
Brightness	250 cd/m²
Scan Format	1080p
Video Formats Supported	AVI
Aspect Ratio	16:9
Viewing Angle	160° Horizontal/160° Vertical

Audio

Speakers	Yes
RMS Output Power	2 W
Number of Audio Channels	2

Network & Communication

Ethernet	Yes

Interfaces/Ports

CI+	Yes
HDMI	Yes
Total Number of HDMI Ports	2
USB	Yes
Headphone	Yes

Power Description

Input Voltage	100 V AC 240 V AC
Input Frequency	50 Hz 60 Hz

Energy & Performance

Maximum Operating Power Consumption	30 W

Physical Characteristics

Product Color	Black Ivory
VESA Mount Compatible	Yes
VESA Mount Standard	75 x 75
Height	10.97" (278.60 mm)
Width	15.41" (391.40 mm)
Depth	1.81" (46.10 mm)
Height with Stand	14.02" (356 mm)
Width with Stand	18.03" (458 mm)
Depth with Stand	7.91" (201 mm)
Weight (Approximate)	6.40 lb (2902.99 g)
Weight with Stand (Approximate)	8 lb (3628.74 g)

Miscellaneous

Additional Information	Sound Mode :Yes 6 modes: Standard, Cinema, Clear Voice III, Sports, Music, Game bizType :B2B Terrestrial :VSB businessUnit :BS Bezel Width (on Bezel) (mm) :23.5mm (T/L/R) / 59.7mm (B) Color :Front: Black / Back: Ivory Dimensions (w/o arm adaptor) (W x H x D) :15.4" x 11" x 1.8" / 391.4 x 278.6 x 46.1 mm Dimensions (with Packing, w/o arm adaptor) (W x H x D) :18" x 7.9" x 14" / 458.0 x 201.0 x 356.0 mm Weight (TV, arm adaptor & packaging) :9.9 lbs / 4.5 kg Weight (TV, arm adaptor) :8.0 lbs / 3.7 kg ecommerceUse :Yes hqEnabledFlag :Yes Set Bottom :Headphone Out (replaceable module) Set Rear :HDMI/HDCP In, LAN (RJ45), USB, MPI Port (RJ45), DC In, RF/AC In [PoC (Power over Coax)] mdmsCategory :Commercial Display_Hotel packingTypeCode :N Life Span (hrs) :50000 Static (Panel) Contrast Ratio :700 (Typ) Touch Screen :10 Point Multi Touch PCAP, Accuracy < 2mm PoC (Power over Coax) :Range 20V - 34V AC Stand-by :Adapter: 0.5W ? / PoC: 0.5W ? webOS 3.5, Commercial Home, Web Browser, Pre-loaded Apps, SDP Server Compatibility, SoftAP, Wi-Fi (bandwidth), Screen Share (Miracast), Share (DLNA), DIAL, Bluetooth Audio Playback, LG Sound Sync / Bluetooth Data Streaming (IP & RF) :Yes HCAP (GEM/FLASH/HTML) ? Service Carousel (TLX, Firmware) :Yes Multicast/Unicast Ready :Yes RF :Yes (1 Tuner) Solution Type :Pro:Centric (Smart, V, Direct) webRTC :Yes Aspect Ratio :16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan Picture Mode :7 modes: Vivid, Standard, APS, Cinema, Sports, Game, Expert (Bright Room), Expert (Dark Room) XD Engine :Yes UL, FCC, NOM, NRCan, CEC
Certifications & Standards	UL, FCC, NOM, NRCan, CEC
Environmentally Friendly	Yes
Environmental Certification	RoHS
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Condition	No
UPC	719192623026

Warranty

Limited Warranty	2 Year

;
