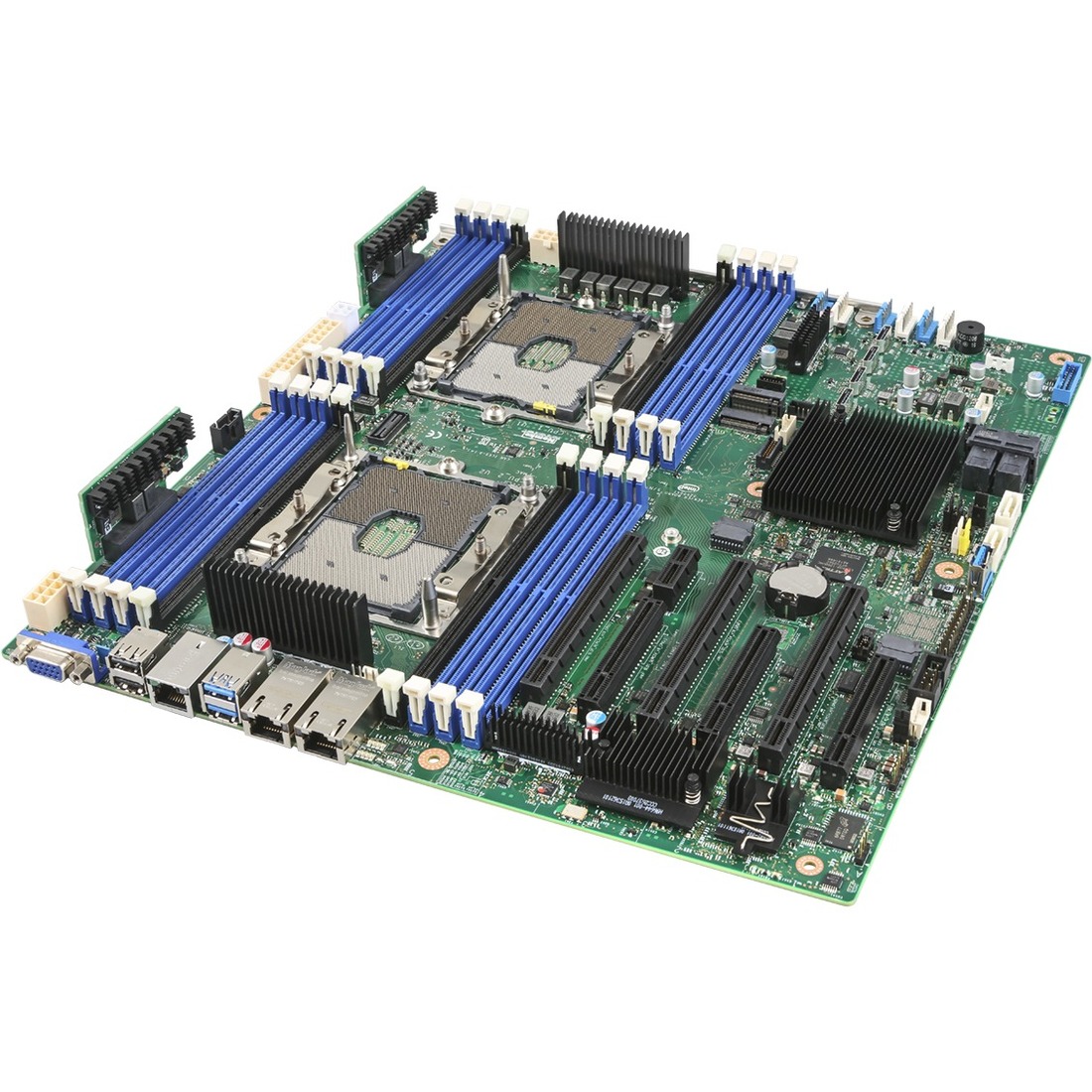

Intel S2600STQR Server Motherboard - Intel C628 Chipset - Socket P - Intel Optane Memory Ready - SSI EEB
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Intel Corporation |
| Manufacturer Part Number | S2600STQR |
| Brand Name | Intel |
| Product Model | S2600STQR |
| Product Name | Server Board S2600STQR |
| Marketing Information | INTEL® SERVER BOARD S2600ST FAMILY The Intel® Server Board S2600ST offers small and medium businesses a general-purpose, price-performance solution for networking scenarios involving storage, security and embedded appliances. Optimized for use with the 2nd Generation Intel® Xeon® processor Scalable family, the board features multiple PCIe lanes and a standard form factor for greater versatility in a variety of use cases including cloud, storage, and telecommunications. Together, this standard form factor and rich feature set helps an organizations' ability to move, store, and process data more quickly in a variety of environments. |
| Packaged Quantity | 1 |
| Product Type | Server Motherboard |
Processor & Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C628 |
| Total Processor Supported | 2 |
| Processor Socket | Socket P |
| Processor Supported | Xeon |
Memory
| Number of Memory Slots | 16 |
| Memory Form Factor |
|
| Maximum Memory Supported | 2 TB |
| Memory Speed Supported |
|
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
I/O Controller
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| RAID Levels |
|
Video
| Onboard Video | CPU Dependent Video |
Network & Communication
| 10Gigabit Ethernet | Yes |
I/O Expansions
| Total Number of Expansion Slots | 6 |
| Total Number of PCI Express Slots | 6 |
| Number of PCI Express x8 Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
Interfaces/Ports
| Total Number of USB Ports | 7 |
| VGA | Yes |
Onboard Interfaces
| Number of SATA Interfaces | 12 |
| Number of NVMe Ports | 2 |
Physical Characteristics
| Form Factor | SSI EEB |
| Width | 12" (304.80 mm) |
| Depth | 13" (330.20 mm) |
Miscellaneous
| Package Contents |
|
Warranty
| Limited Warranty | 3 Year |
