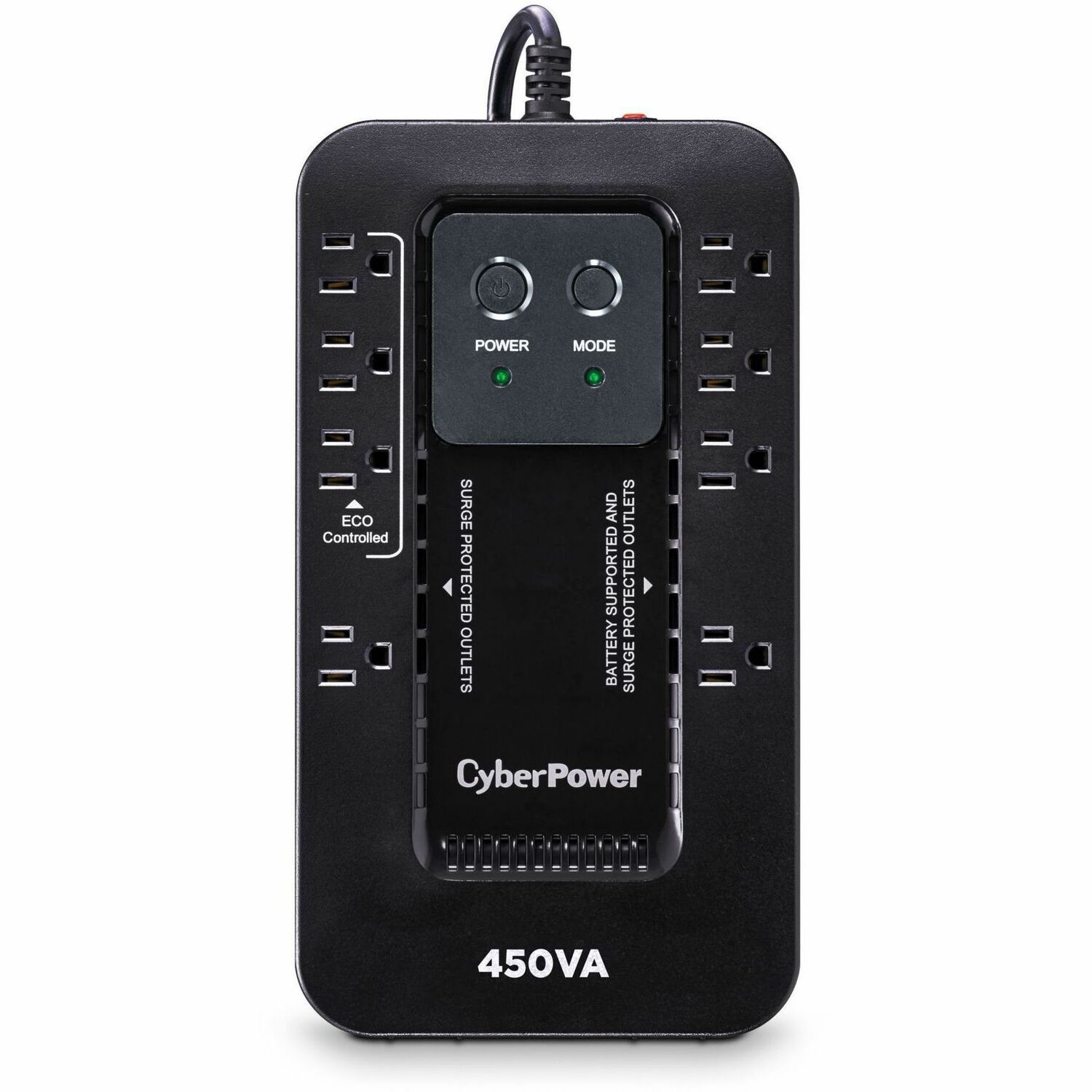

CyberPower EC450G Ecologic UPS Systems

Part No. EC450G

by CyberPower Systems, Inc

CyberPower EC450G Ecologic UPS Systems

120 VAC, NEMA 5-15P, Compact, 8 Outlets, PowerPanel® Personal, $100000 CEG, 3YR Warranty

Part No. EC450G

by CyberPower Systems, Inc

$92.99
General Information
ManufacturerCyberPower Systems, Inc
Manufacturer Part NumberEC450G
Brand NameCyberPower
Product SeriesEcologic UPS
Product ModelEC450G
Product NameEcologic UPS EC450G 450VA Compact UPS
Marketing Information

A compact UPS with standby topology, the CyberPower Ecologic EC450G provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC450G offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The EC450G comes with a three-year warranty (including coverage of batteries) and a $100,000 Connected Equipment Guarantee.

Product TypeStandby UPS
Technical Information
Plug/Connector TypeNEMA 5-15P
Receptacle TypeNEMA 5-15R
Receptacle Detail8 x NEMA 5-15R
Number of Battery & Surge Outlets4
Number of Surge-only Outlets4
Protection TypeSurge
Overload ProtectionYes
Cord Length5 ft (1.52 m)
Transfer Time4 ms
EMI/RFI Noise FilterYes
Energy SavingGreenPower UPS™ High-Efficiency
Application/Usage
  • Desktop Computer
  • Workstation
  • Network Device
  • Home Entertainment System
  • Computer Peripheral
  • Home Theater
  • Equipment
  • Personal Electronic
  • Home Network
  • Router
  • Modem
  • VoIP Phone
Surge SuppressionYes
FeaturesAudible Alarm
Power Description
Load Capacity (VA)450 VA
Load Capacity (Watt)260 W
Input Voltage120 V AC
Output Voltage120 V AC
Input Frequency
  • 47 Hz
  • 63 Hz
Output Frequency
  • 60 Hz
  • 50 Hz
Waveform TypeSimulated Sine Wave
Surge Energy Rating526 J
Circuit BreakerYes
Output Power Factor0.6
Management
Alarm
  • Battery Mode
  • Low Battery
  • Overload
  • Fault
Controls/Indicators
Status Indicators

LED Indicators:

  • Power On
  • ECO On/Of
Interfaces/Ports
USBYes
USB (HID Compliant) PortYes
Battery Information
Number of Batteries1
Battery CharacteristicsSealed
Battery ChemistryLead Acid
Battery Size12V
Battery Capacity2900 mAh
Backup/Run Time (Full Load)2 Minute
Backup/Run Time (Half Load)6 Minute
Typical Battery Recharge Time8 Hour
Replaceable BatteryYes
Environmental Conditions
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature104°F (40°C)
Storage Temperature5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation10000 ft (3048000 mm)
Maximum Storage Elevation50000 ft (15240000 mm)
Operating Humidity0% - 95%
Storage Relative Humidity0% - 95%
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Height3.11" (79 mm)
Width10.59" (269 mm)
Depth5.91" (150 mm)
Form FactorCompact
Weight (Approximate)4.50 lb (2040 g)
Miscellaneous
Additional Information
  • Runtimes: 11.5 min. (90W), 3.3 min. (200W)
  • Plug Style: Right Angle, 45° Offset
  • Circuit Breaker: 10A
  • Outlets - Eco Controlled: 3
  • Outlets - Transformer-Spaced: 2
  • Communication Cable: USB Cable
  • Keyhole Mounting Slots: Yes
  • Overload Protection: Internal Circuitry Limiting, Circuit Breaker
  • Software: PowerPanel® Personal
  • Operating Relative Humidity: 0 - 95% (non-condensing)
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

Certifications & Standards
  • UL1778
  • cUL 107.3
  • FCC DOC Class B
Energy StarYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
UPC0649532621842
Warranty
Limited Warranty3 Year
Additional Warranty Information

Three-year warranty (including coverage of batteries)

Directly Connected Equipment Guarantee$100000 Lifetime
