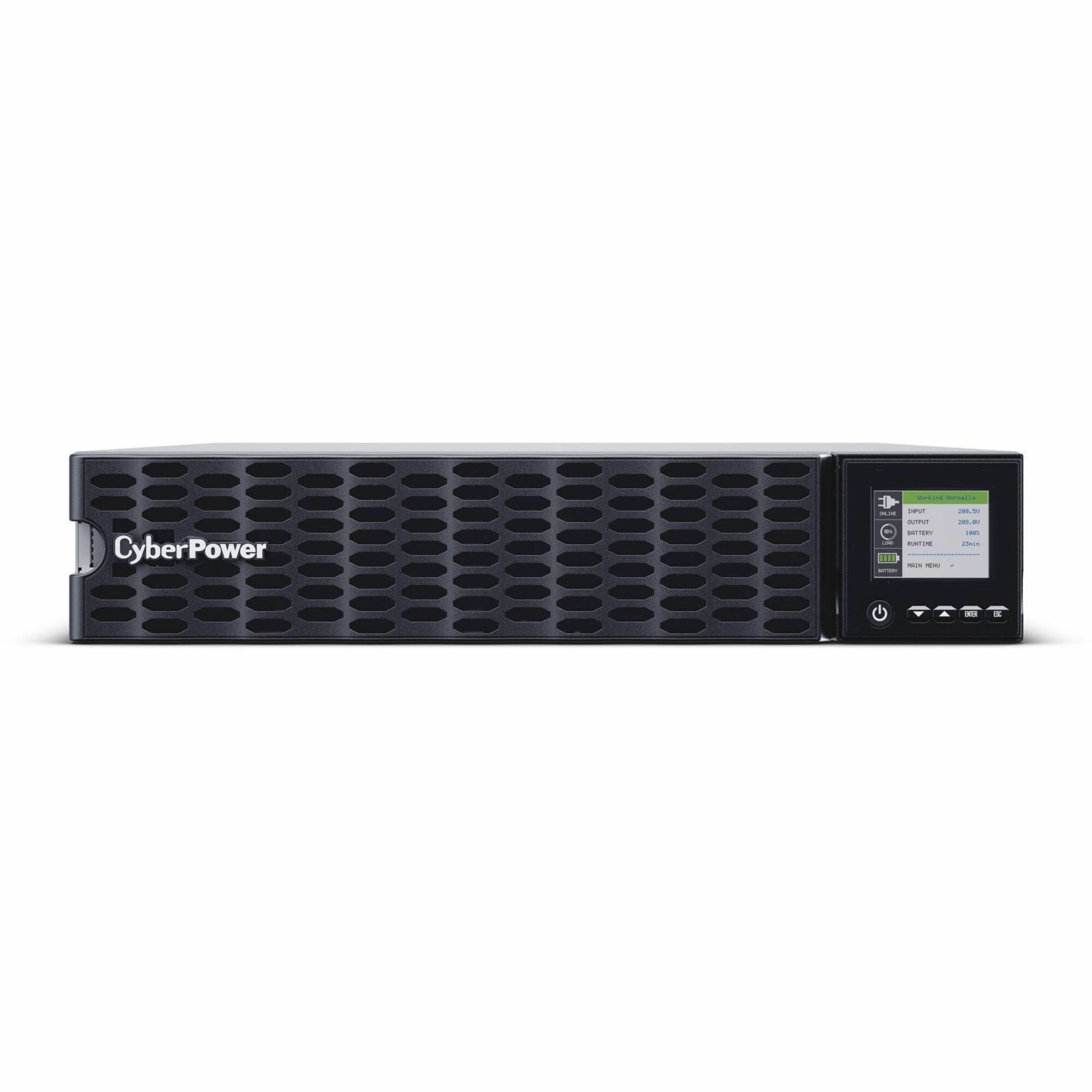

CyberPower OL6KRTHD Smart App Online UPS Systems
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL6KRTHD |
| Brand Name | CyberPower |
| Product Line | Smart App Online |
| Product Series | Smart App Online UPS |
| Product Model | OL6KRTHD |
| Product Name | OL6KRTHD Smart App Online UPS Systems |
| Marketing Information | The CyberPower Smart App Online OL6KRTHD high-density design offers more power in less space. In fact, it can be configured into 2U of rack space or as a tower, compared to 3U and 4U for similar competitive UPS models - giving you more room to grow. The OL6KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205. For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration. The OL6KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise. The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's all backed by a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee. |
| Product Type | Dual Conversion Online UPS |
| Plug/Connector Type | Hardwired |
| Receptacle Type | NEMA L6-20R |
| Receptacle Detail | 2 x NEMA L6-20R |
| Transfer Time | 0 ns |
| Protection Type |
|
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency >96% |
| Cord Length | 10 ft (3048 mm) |
| Circuit Breaker Current Rating | 50 A |
| Efficiency | 96% |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 6 kW |
| Input Voltage |
|
| Input Voltage Range |
|
| Output Voltage |
|
| Input Frequency |
|
| Output Frequency |
|
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Input Power Factor | 0.99 |
| Output Power Factor | 1 |
| Display | LCD |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
| Status Indicators | Power On (White) |
| Serial Port | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| DC System Voltage | 12 V DC |
| Number of Batteries | 12 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 5700 mAh |
| Backup/Run Time (Full Load) | 2.40 Minute |
| Backup/Run Time (Half Load) | 6.20 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 66 dB(A) |
| Thermal Dissipation | 1307 BTU/h |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 17" (431.80 mm) |
| Depth | 28.30" (718.82 mm) |
| Weight (Approximate) | 92.40 lb (41911.93 g) |
| Package Contents |
|
| Additional Information | |
| Certifications & Standards | UL1778 5th Ed. |
| Energy Star | Yes |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0649532620432 |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Backed by a three-year warranty (including batteries) |
| Directly Connected Equipment Guarantee | $300000 Lifetime |
