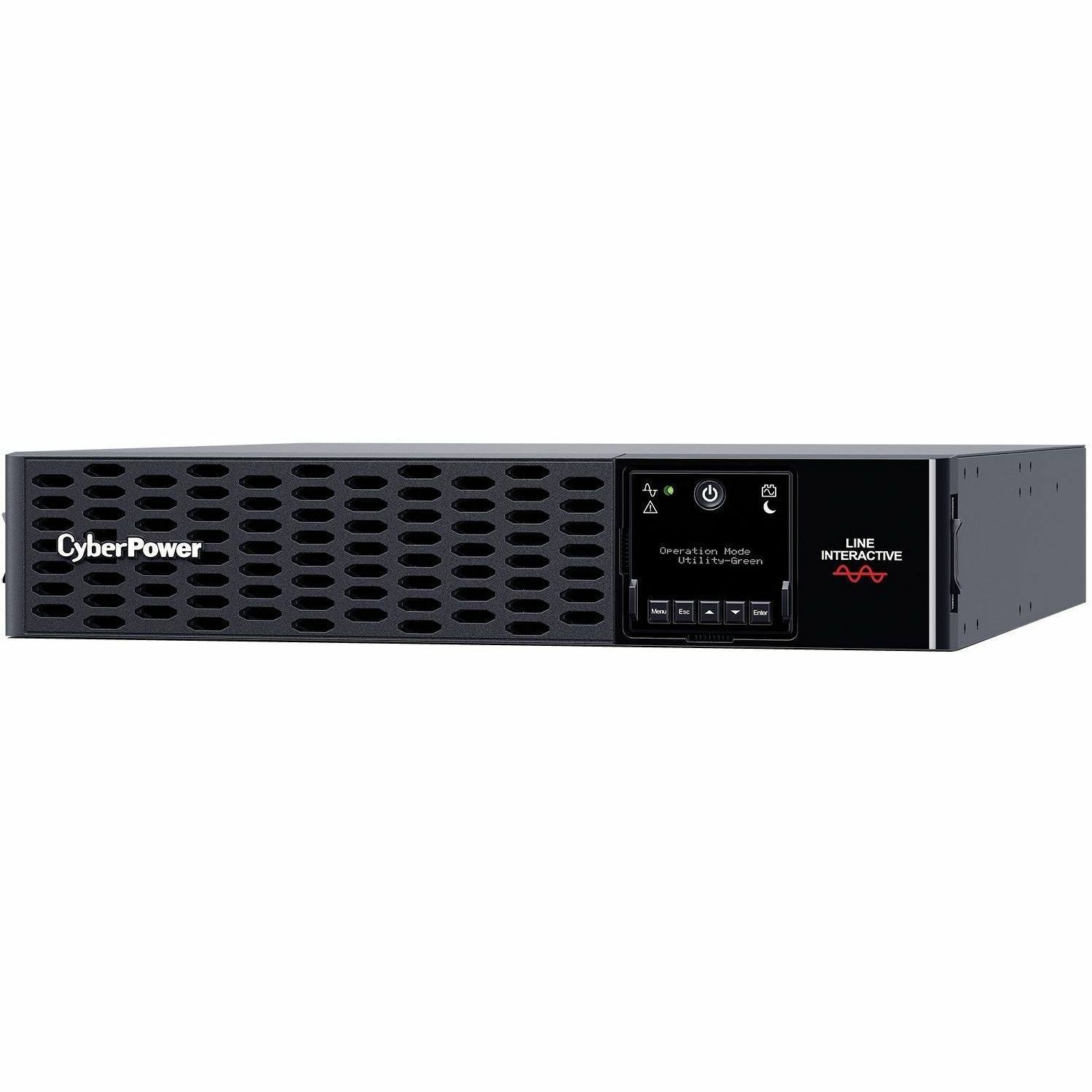

CyberPower PR3000RTXL2UHVAN New Smart App Sinewave UPS Systems
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR3000RTXL2UHVAN |
| Brand Name | CyberPower |
| Product Series | New Smart App Sinewave UPS |
| Product Model | PR3000RTXL2UHVAN |
| Product Name | New Smart App Sinewave PR3000RTXL2UHVAN 3kVA Rack/Tower UPS |
| Marketing Information | The PR3000RTXL2UHVAN is a high voltage Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment. The Smart App Sinewave PR3000RTXL2UHVAN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UHVAN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options. This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RTXL2UHVAN. |
| Product Type | Line-interactive UPS |
| AVR | Yes |
| Plug/Connector Type | NEMA L6-20P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Number of Battery & Surge Outlets | 6 |
| Number of Critical Load Outlets | 2 |
| Transfer Time | 4 ms |
| Dataline Protection | RJ-45 |
| Protection Type | Surge |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Cord Length | 10 ft (3048 mm) |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
| Input Voltage | 230 V AC |
| Input Voltage Range | 131 V AC - 302 V AC |
| Output Voltage |
|
| Input Frequency |
|
| Output Frequency |
|
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Output Power Factor | 1 |
| Display | LCD |
| Network Management |
|
| Alarm |
|
| Status Indicators |
|
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB | No |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Number of Batteries | 8 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 6000 mAh |
| Backup/Run Time (Full Load) | 3.60 Minute |
| Backup/Run Time (Half Load) | 10.70 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Operating Humidity | 0% - 1% |
| Storage Relative Humidity | 0% - 1% |
| Sound Emission (A-Weighted) | 57.5 dB(A) |
| Thermal Dissipation | 120.10 BTU/h |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 17.10" (434.34 mm) |
| Depth | 24.80" (629.92 mm) |
| Weight (Approximate) | 87.50 lb (39689.33 g) |
| Additional Information |
|
| Certifications & Standards |
|
| Software Included | PowerPanel® Business |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0649532930111 |
| Limited Warranty | 3 Year |
| Directly Connected Equipment Guarantee | $400000 Lifetime |
