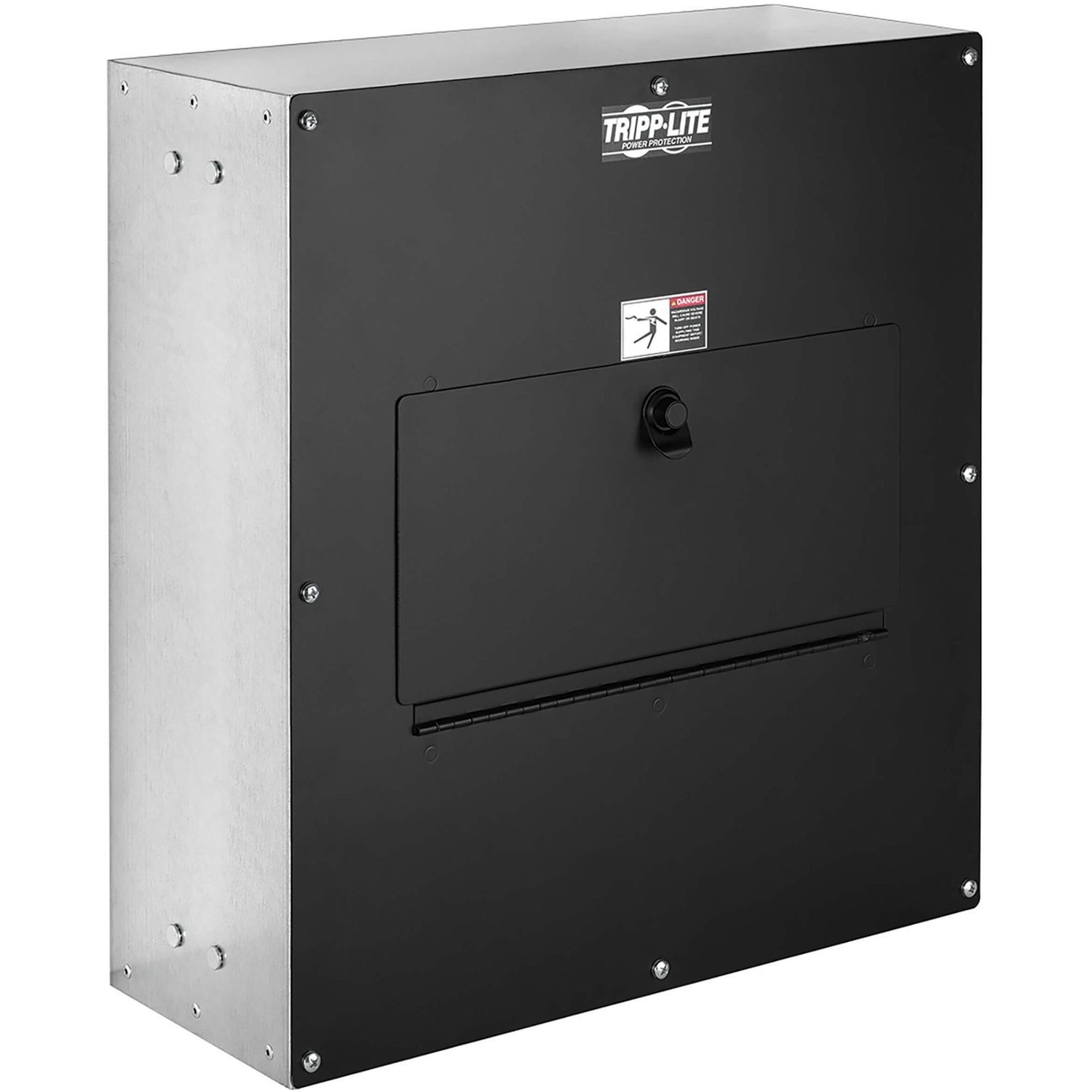

Tripp Lite by Eaton UPS Maintenance Bypass Panel for SVT10KX - 3 Breakers
480 V AC
$5354.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SU10KMBPKX |
| Brand Name | Tripp Lite by Eaton |
| Product Model | SU10KMBPKX |
| Product Name | UPS Maintenance Bypass Panel for SVT10KX - 3 Breakers |
| Marketing Information | UPS Maintenance Bypass Panel Keeps Equipment Powered During UPS MaintenanceThis wallmount three-breaker maintenance bypass panel is compatible with Tripp Lite's SVT10KX 3-phase UPS system. It allows you to reroute power around the UPS, providing an alternate path for electricity that keeps the connected load operational while the UPS is offline for maintenance or repairs. Features 3 Built-In Circuit Breakers to Isolate LoadsThree circuit breakers - an AC input breaker, a maintenance bypass breaker and a maintenance isolation breaker - are connected to heavy-duty buswork and isolate the UPS system from its connected load with no loss of network availability. This allows the load to remain continuously powered without costly downtime. A Kirk-key interlock system enhances safety and security. Removable handles allow the panel's trim cover to be removed for internal access. The 40A unit has a kAIC rating of 10K. Switching Between Normal and Bypass Modes Is EasyWhen a UPS needs maintenance, this UPS bypass panel keeps power supplied to components via its mechanical interlock system by switching power to the external bypass breaker. Simply unscrew the interlock switch, rotate the switch from the UPS AC input breaker (SW1) to the bypass breaker (SW2), then turn on the bypass breaker and turn off the UPS and isolation breaker (SW3) to perform UPS maintenance without service interruption. Convenient Wall-Mount InstallationMade of galvanized steel, the service bypass panel has rear mounting holes for installation on a smooth, solid wall (mounting hardware not included). |
| Product Type | Bypass Panel |
Power Description
| Input Voltage | 480 V AC |
Physical Characteristics
| Form Factor | Wall-mountable |
| Height | 24" (609.60 mm) |
| Width | 22" (558.80 mm) |
| Depth | 10" (254 mm) |
| Weight (Approximate) | 55 lb (24947.58 g) |
Miscellaneous
| Package Contents |
|
| Compatibility | Tripp Lite's SVT10KX 3-phase UPS system |
| Country of Origin | United States |
| Condition | No |
| UPC | 0037332241078 |
Warranty
| Limited Warranty | 1 Year |
