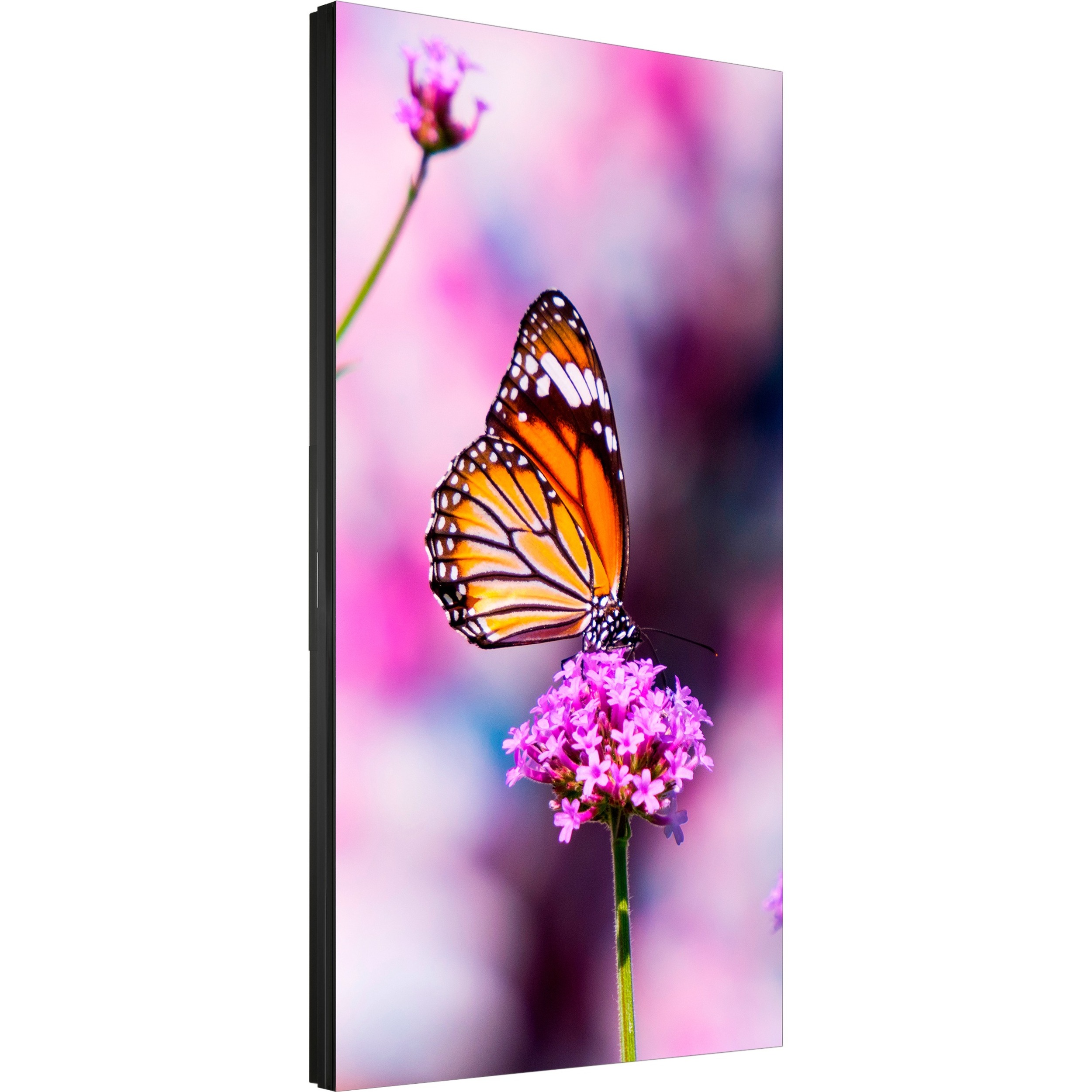

NEC Display 55" LED Backlit 0.88mm Ultra-Narrow Bezel 2x2 Video Wall Bundle

Part No. UN552VS-TMX4P

This Product is currently not in offering

NEC Display 55" LED Backlit 0.88mm Ultra-Narrow Bezel 2x2 Video Wall Bundle

Part No. UN552VS-TMX4P

This Product is currently not in offering

Manufacturer Brochure

Specifications

General Information

Manufacturer	Sharp
Manufacturer Part Number	UN552VS-TMX4P
Brand Name	NEC Display
Product Line	MultiSync
Product Model	UN552VS-TMX4P
Product Name	55" LED Backlit 0.88mm Ultra-Narrow Bezel 2x2 Video Wall Bundle
Marketing Information	NEC's complete 55" 2x2 LCD TileMatrix™ Digital Video Wall Solution delivers an all-in-one, easy-to-configure and cost-effective solution that is ideal for dynamic digital signage, information display and command & control applications. Exclusive TileMatrix, TileComp and TileCut technologies, combined with the ultra-narrow bezel design of the NEC UN552S/UN552VS and the full adjustment capabilities of the Peerless DS-VW775 mount, provide for a near seamless video wall without the need for additional third-party equipment. Bundled solution with everything required for a 2x2 video wall makes configuration and installation easy Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability 500cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution New TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display NEC Display Wall Calibrator, MultiProfiler, SpectraViewII and NaViSet Administrator 2 software compatible
Product Type	Digital Signage Display

Technical Information

Video Wall Compatible	Yes
Bezel Width (Top)	20 mil (0.51 mm)
Bezel Width (Bottom)	20 mil (0.51 mm)
Bezel Width (Left)	20 mil (0.51 mm)
Bezel Width (Right)	20 mil (0.51 mm)

Display & Graphics

Number of Screens	4
Video Wall Configuration	2x2
Viewable Screen Size	55" (1397 mm)
Screen Size Class	55" (1397 mm)
Display Screen Type	LCD
High Dynamic Range (HDR)	Yes
Display Resolution	1920 x 1080
Backlight Technology	Direct LED

Video

Scan Format	1080p
Brightness	500 cd/m²

Network & Communication

Ethernet	Yes

Interfaces/Ports

USB	Yes
DVI	Yes
HDMI	Yes
DisplayPort	Yes
Serial	Yes
Number of USB 2.0 Ports	2
Number of HDMI Inputs	2

Power Description

Input Voltage	120 V AC 230 V AC

Physical Characteristics

VESA Mount Standard	400 x 400
Mount Type	Wall Mountable Panel Mount
Height	26.80" (680.72 mm)
Width	47.70" (1211.58 mm)
Depth	3.90" (99.06 mm)
Weight (Approximate)	56.90 lb (25809.41 g)

Miscellaneous

Package Contents	55" LED Backlit 0.88mm Ultra-Narrow Bezel 2x2 Video Wall Bundle 3.0m Power Cord 2.0m DisplayPort Cable 2.0m HDMI Cable LAN Cable Serviceable Mounts Power Conditioner Remote Control Kit Color Calibration Kit

Warranty

Limited Warranty	3 Year
