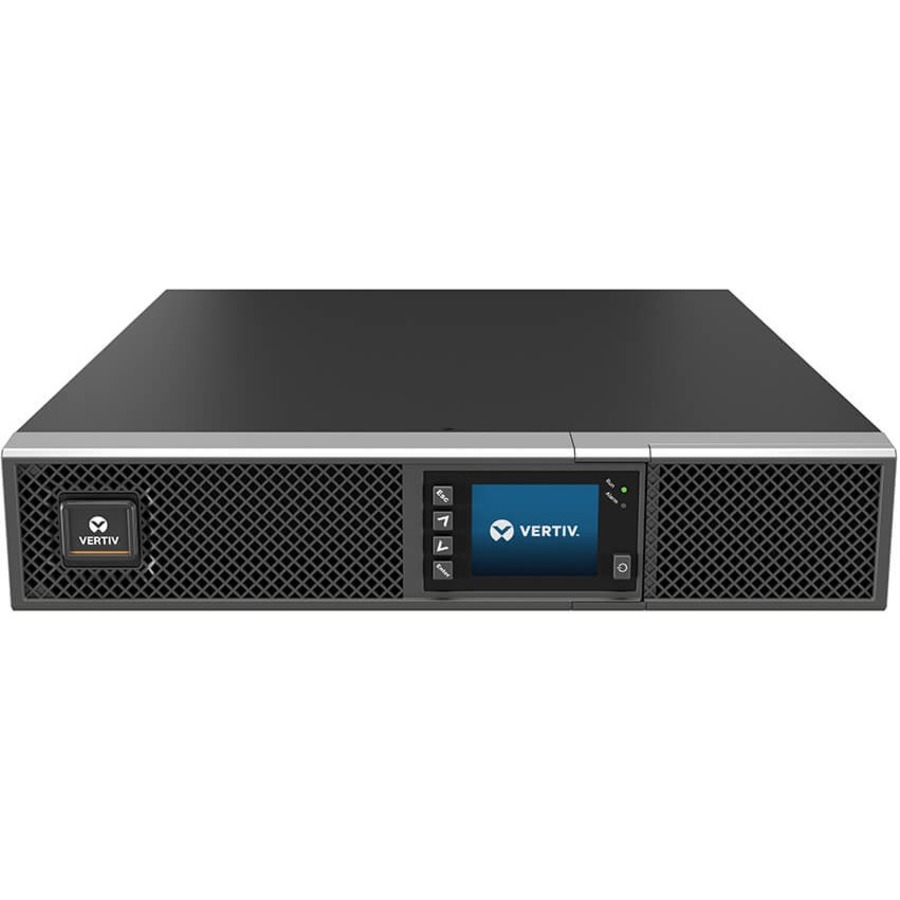

Vertiv Liebert GXT5 UPS 3kVA 208V L6-30P| Online Double Conversion Rack Mount/Tower | Energy Star Certified| Lead Acid| 1.0 PF (GXT5-3KL630RT2UXL)
Double Conversion | 2U | Single-Phase | Optional RDU101 Card NIC | Network Communications Card | Color Graphic LCD | 3-Year Warranty
$5435.99
On back-order, will ship once in-stock
- All Locations: (0+)
- Toronto, ON (5+)
General Information
| Manufacturer | Vertiv |
| Manufacturer Part Number | GXT5-3KL630RT2UXL |
| Brand Name | Vertiv Liebert |
| Product Series | GXT |
| Product Name | GXT5 3kVA 208V UPS |
| Marketing Information | The Vertiv Liebert GXT5-3KL630RT2UXL uninterruptible power supply (UPS) protects critical equipment against outages and power disturbances. This single-phase, 3kVA online double conversion UPS comes with an L6-30P Input Cord. It offers continuous power conditioning in centralized and edge locations. With a high power factor (0.9-1.0), it allows more connected loads, saving space and costs. This compact rack mount/tower UPS has an optional Vertiv RDU120 communications card for remote monitoring and control to help enable faster event resolution. With the free Vertiv Power Insight software, monitor up to 100 distributed UPS units and receive simple notifications of their status and events in one place. This UPS has scalable runtime options with matching external battery cabinets for extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive, gravity-sensing, full-color LCD screen. More from the Manufacturer |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
Technical Information
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Bypass Switch |
|
| Emergency Power OFF | Yes |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage |
|
Power Description
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
| Input Voltage | 208 V AC |
| Output Voltage |
|
| Input Frequency | 50 Hz |
| Waveform Type | Sine Wave |
| Utility (AC) Mode Overload |
|
Controls/Indicators
| Status Indicators | Full Color Graphic LCD / Diagnostic LEDs:
|
Interfaces/Ports
| Serial Port | Yes |
| VGA | No |
| Modem (RJ-11) | No |
| Network (RJ-45) | Yes |
| USB | Yes |
| Total Number of Expansion Slots | 1 |
Battery Information
| Battery Characteristics | Valve-regulated, Non-spillable |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 9 Minute |
| Number of External Battery Cabinets | 1 |
| Backup/Run Time With External Battery Cabinet (Full Load) | 17 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 43.50 Minute |
| Hot Swappable | Yes |
Environmental Conditions
| Environmental Sensors |
|
Physical Characteristics
| Height | 3.35" (85 mm) |
| Width | 16.93" (430 mm) |
| Depth | 21.26" (540 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 65.10 lb (29528.86 g) |
Miscellaneous
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards | |
| Energy Star | Yes |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 0767041026627 |
Warranty
| Limited Warranty | 3 Year |
| Additional Warranty Information | Opt. 2 year extension |
