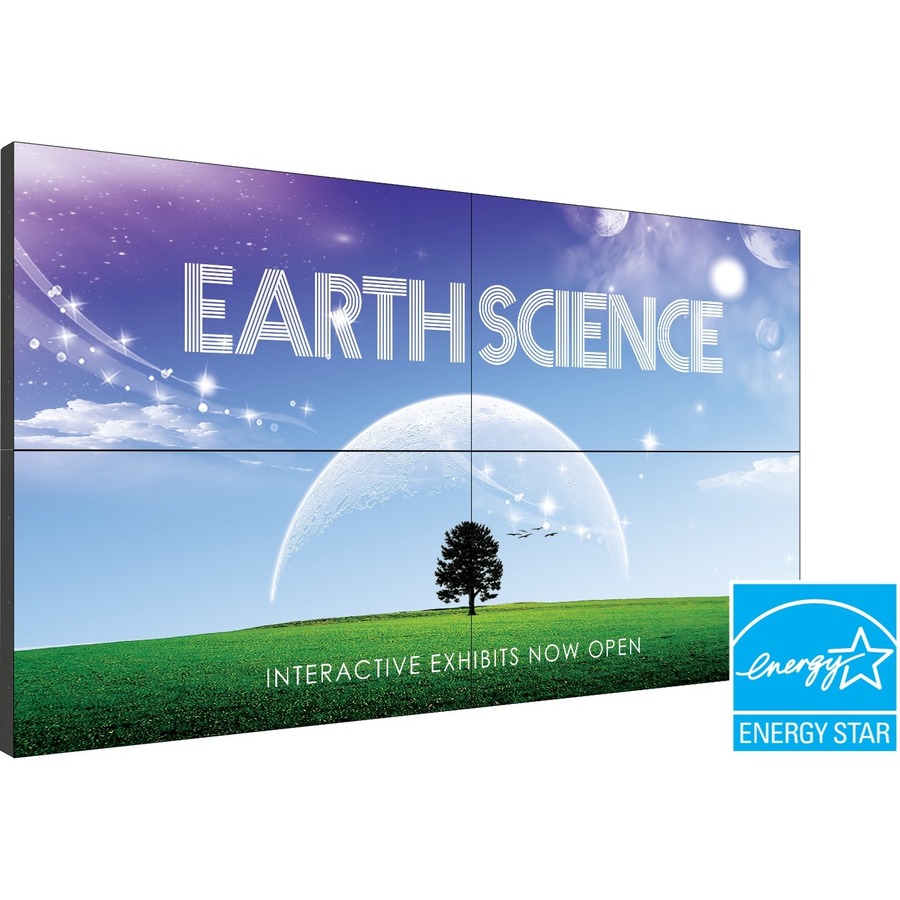

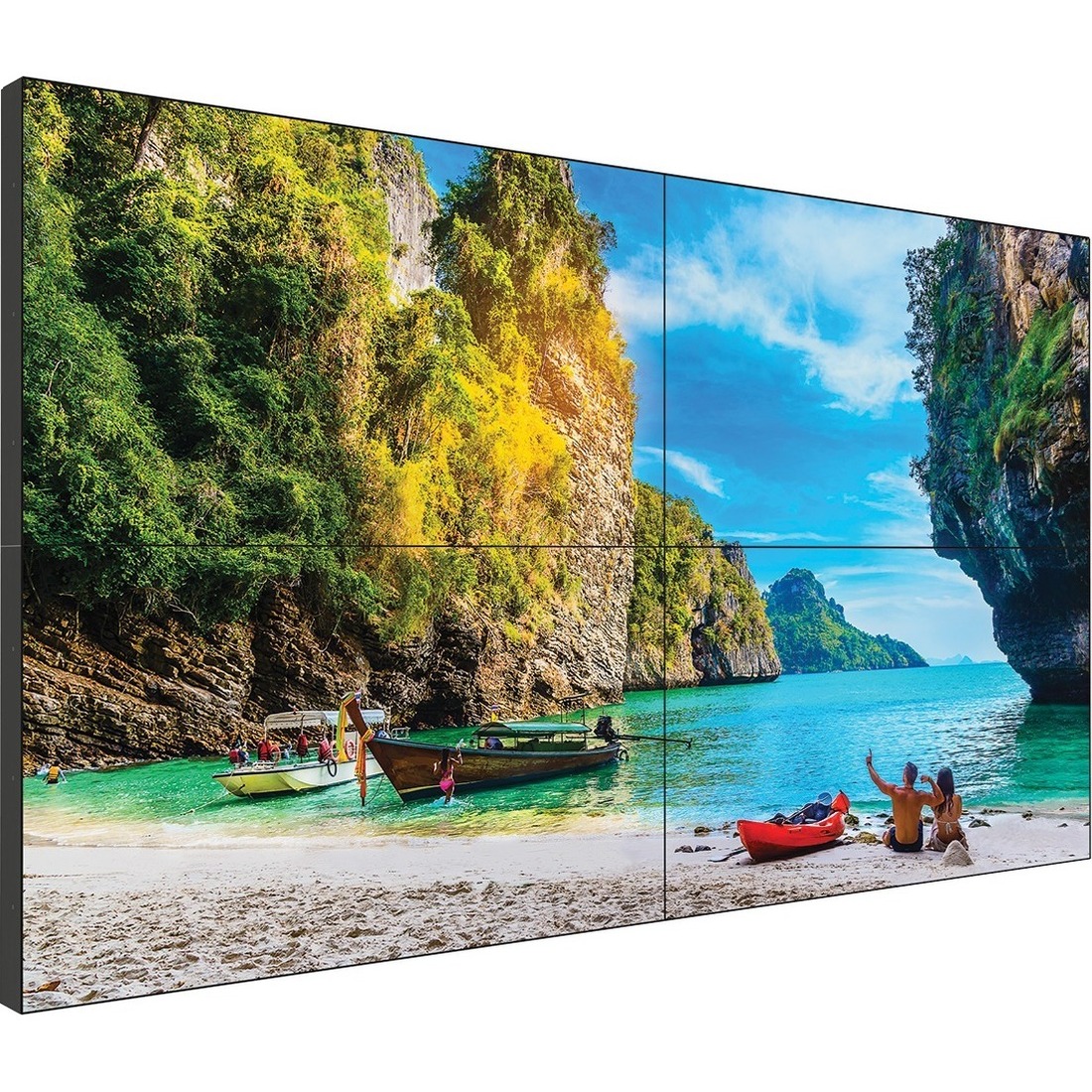

Planar VM55MX-M LCD Video Wall
55" (1397 mm) LCD - 1920 x 1080 - Direct LED - 700 cd/m² - 1080p - HDMI - USB - SerialEthernet - Energy Star
$7593.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Leyard |
| Manufacturer Part Number | 998-1150-00 |
| Brand Name | Planar |
| Product Series | VM |
| Product Model | VM55MX-M |
| Product Name | VM55MX-M LCD Video Wall |
| Marketing Information | The Planar® VM55MX-M is a 55" tiled LCD video wall display with a 0.88mm tiled bezel width and 700-nit brightness for 24x7 digital signage applications. Featuring IPS panel technology, the Planar VM55MXM has wide viewing angles and local dimming for greater contrast. 4K@60Hz video and RS-232 and IR control loop through simplifies tiling for video walls up to 10x10. With support for landscape or portrait mounting and an integrated OPS slot, the Planar VM55MX-M delivers integration flexibility. To facilitate installation, optional trim pieces and mounts are also available. The Planar VM55MX-M is designed to meet a wide range of applications including retail, hospitality, lobbies, or museums. The Planar VM55MX-M is an ENERGY STAR® certified video wall display. |
| Product Type | Digital Signage Display |
Technical Information
| Video Wall Compatible | Yes |
| Bezel Width (Bottom) | 17.32 mil (0.44 mm) |
| Bezel Width (Top) | 17.32 mil (0.44 mm) |
| Bezel Width (Left) | 17.32 mil (0.44 mm) |
| Bezel Width (Right) | 17.32 mil (0.44 mm) |
Display & Graphics
| Viewable Screen Size | 55" (1397 mm) |
| Display Screen Type | LCD |
| Display Resolution | 1920 x 1080 |
| Pixel Pitch | 24.80 mil (0.63 mm) |
| Backlight Technology | Direct LED |
Video
| Scan Format | 1080p |
| Dynamic Contrast Ratio | 20,000:1 |
| Color Depth | 10-bit |
| Brightness | 700 cd/m² |
| Color Gamut | 72% |
Network & Communication
| Ethernet | Yes |
Interfaces/Ports
| USB | Yes |
| HDMI | Yes |
| Serial | Yes |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 1 |
| Number of HDMI Inputs | 2 |
| Number of DisplayPorts | 1 |
Power Description
| Input Voltage |
|
Physical Characteristics
| Height | 26.80" (680.72 mm) |
| Width | 47.70" (1211.58 mm) |
| Depth | 3.70" (93.98 mm) |
| Weight (Approximate) | 51 lb (23133.21 g) |
Miscellaneous
| Package Contents |
|
| Certifications & Standards | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Condition | No |
| UPC | 810689006527 |
Warranty
| Limited Warranty | 3 Year |
